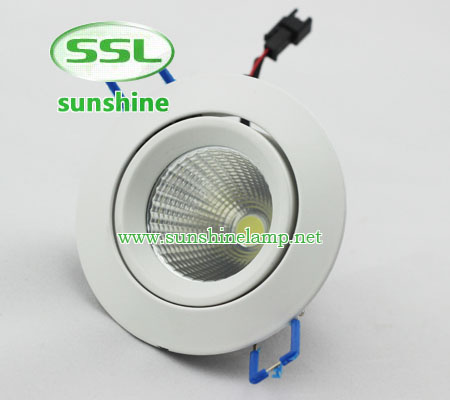

6W LED COB Down Light

Name: 6W LED COB Down Light
Brand: China-Manufacturer-Directory.com
SKU: 767461665
Availability: InStock
Rating: 4.5 (87 reviews)

Supplier:	Sunshine Lighting Industry Limited
Price:	US $ 6.27-6.44/Piece
Min Order:	100/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	SSL-DLCOB-6W-147
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Frequency Range:	50Hz-60Hz
Dimension:	4inches
Beam Angle:	Diffusing Lighting
Housing Color:	White
Package:	452435cm(30PCS/Carton)
Color Temperature:	Cool White
Lamp Body Material:	Metal
Source Number:	Single Plug
Installation:	Embedded
Lamp Installation:	Screw Holder
Switch Type:	Touch On/Off Switch
Warranty:	2 Years
Application:	Commerical Places
Certification:	RoHS
IP Rating:	No

Product Description

6W Energy Saving Recessed LED Downlight For Home / School / Factory / Hospital

Energy saving 6W LED downlight, for home / school / factory / hospital etc.

Description:

CNC construction and 1060 Aero aluminum alloy housing
Germany FIN-design and thermal efficiency 60% improved
Cree/Edison/Epistar LED
AC85~265V input options
6W power consumption
Warm white Pure white Cool white
Luminous Efficiency 80-110Lm/W
Diffused lighting
Up to 70% energy savings
3 Year Warranty
CE RoHS TUV UL compliant

Specifications:

Electrical / Optical Characteristics (Ta=25ºC±3ºC)

Tech Date
Model		SSL-DLCOB-6W-147
LED Qty		1pcs
LED Type		Cree Edison Epistar
LED Power		6W
LED Color		Warm white, Pure white, Cool white
Input Voltage		AC85~265V
Frequency Range		50Hz - 60Hz
Power Factor		>98
Power Efficiency		>85%
Luminous Efficiency		80~110LM/W
Dimension		Φ85 x H55mm
Color Temperature	WW	2700-3500K
	PW	4000-5500K
	CW	6000-7000K
CRI	WW	Ra>73
	PW / CW	Ra>78
Lamp Efficiency		>85%
Lumens Output	WW	450lm
	PW	470lm
	CW	480lm
Beam Angle		Diffused lighting
(Cut-out)Hole size		Φ75mm
Radiator Number		0.4mm x 42 pcs
Radiator Area		840cm²
Installation		Embedded
Housing Color		White
Working Temperature		-40ºC ~ +55ºC
Storage Temperature		-25ºC ~ +65ºC(25ºCbest)
Life span		35000~50000hrs
Certification		CE, RoHS, FCC
package		452435cm (30pcs/box)

Curve of light distribution (Ta=25ºC±3ºC)

Installation Instruction:

pplications:

Widely used in the hotel, meeting room, offices, hospital, schools, factories, commercial lighting, shopping malls, supermarket.
