Product Specifications
| Prod Model: |
BLT |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Performance: |
Low Noise |
| Type: |
Screw |
| Drive Mode: |
Electric |
| Configuration: |
Stationary |
| Power Source: |
AC Power |
| Lubrication Style: |
Lubricated |
| Mute: |
Mute |
| Place Of Origin: |
Shanghai China (Mainland) |
| Brand Name: |
Atlas Bolaite |
| Model Number: |
Blt |
Product Description

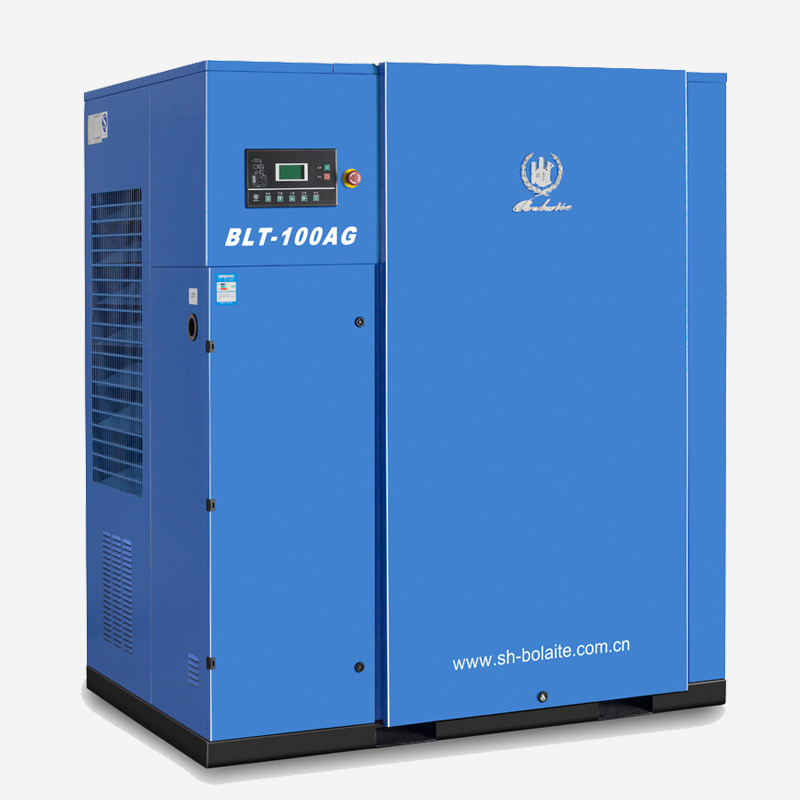

Olaite BLT series rotary screw air compressor used the original ATLAS COPCO air end.
The features are as follows:
*Durable in use.
*Design/Produce/Test, all steps follow the strict standard.
*BLT series air compressor adopt the AltlaCopcooriginal highly effective rotor.
*High cost performance
¨ 1, Air ends: Sweden Atlas Origin
¨ 2, Bearing: 100% Sweden SKF (LIFE60000hours )
¨ 3, Air Intake Valve: Sweden Atlas Origin
¨ 4. Electro motor: ABB WOLONG
¨ 5. Thermostat valve: Austria Hoerbiger
¨ 6. Pressure sensor: UK GEMS Origin
¨ 7. Container: Shanghai ShenJiang
¨ 8. Oil filter: Germany MANN Origin
¨ 9. Oil/Gas separator: Germany MANN Origin
¨ 10. Lubricating Oil: BLT Origin
¨ 11. Suction valve: Sweden Atlas Origin
¨ 12. Pressure valve: HoerbigerAustria Origin
¨ 13. PLC: Schneider Electric France Origin
¨ 14. Oil system configuration of the pipeline were chrome-plated brass
More than 80% of imported famous brand accessories!
| Basic Information | Power Supplier: | 380V/3Ph/50Hz or Customized |
| Discharge Temperature: | For Air cooling < Environment Tempreture+20 °C
For water Cooling <40°C |
| Starting Mode: | Y-V Start / BLX-10A Direct-Driven |
| Transmission Mode: | Belt Driven |
| Cooling Mode: | Air Cooled |
| No. of Compressor stage: | Single Stage Compression |
| Model No. | Air Discharge | Pressure Discharge | Noise Level | Motor Power | External Dimensions | Net weight |
| M3/Min | bar | dB(A) | kw | L(mm) | W(mm) | H(mm) | kgs |
| BLX-10A | 1.22 | 7.50 | 64+-2 | 7.5 | 772 | 650 | 861 | 183 |
| 1.12 | 8.50 |
| 1.03 | 10.00 |
| BLX-15A | 1.71 | 7.50 | 64+-2 | 11 | 772 | 650 | 861 | 198 |
| 1.56 | 8.50 |
| 1.42 | 10.00 |
| BLX-20A | 2.10 | 7.50 | 65+-2 | 15 | 772 | 650 | 861 | 225 |
| 1.98 | 8.50 |
| 1.74 | 10.00 |
| BLX-25A | 2.10 | 7.50 | 66+-2 | 18.5 | 995 | 750 | 1013 | 294 |
| 1.98 | 8.50 |
| 1.74 | 10.00 |
| BLX-30A | 2.10 | 7.50 | 66+-2 | 22 | 995 | 750 | 1013 | 345 |
| 1.98 | 8.50 |
| 1.74 | 10.00 |
| BLX-40A | 2.10 | 7.50 | 67+-2 | 30 | 995 | 750 | 1013 | 413 |
| 1.98 | 8.50 |
| 1.74 | 10.00 |
| BLX-50A | 2.10 | 7.50 | 68+-2 | 37 | 1300 | 900 | 1380 | 600 |
| 1.98 | 8.50 |
| 1.74 | 10.00 |
| BLX-60A | 2.10 | 7.50 | 68+-2 | 45 | 1300 | 900 | 1380 | 650 |
| 1.98 | 8.50 |
| 1.74 | 10.00 |
| BLX-70A | 2.10 | 7.50 | 69+-2 | 55 | 1300 | 900 | 1380 | 700 |
Shanghai Zi Qi Group compressors air end has its headquarter in Germany. Its advanced technology, professional computer management system contributes to the excellent GoodAir Double Screw Air Compressor. The technology and energy consumption has achieved a new level, which can meet the European Standard. Our company always applies the advanced European design and consummate assembly technique, develop the manufacture technology and enhance the testing methods. We will provide you the best solution for air compressor system and make sure that every component has the best work condition. Therefore CoodAir Compressor applies the Original German air end and most components are world-famous brand, which makes our products well-designed and highly reliable.
We confidently believe that Shanghai Zi Qi Group is your reliable professional manufacturer for Air Compressor. We shall provide you the best Compressed Air System with our advanced technology, excellent products and services. Our products include Air & Water cooling Screw compressor, Belt & Direct Driven Screw compressor, Frequency screw compressor and Diesel Driven Portable screw compressor, Refrigeration & Adsorption air dyers, precision air filters, air tanks and screw compressor spare parts, etc. We provide high-quality Compressed Air System to make sure that the user can achieve the best productivity. The user can choose a complete Compressed Air System to meet almost every demand from our products.
