Product Specifications
| Prod Model: |
M2107ECT |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Connection: |
4 Wires |
| Maximum Length Of Line Connection: |
to 100 |
| Video Channels Quantity: |
2 |
| Additional Monitors Quantity: |
to 3 |
| Memory Block Connection: |
Built in Card-Reader for SD Card |
| Image Capture: |
Yes |
| Voice Message: |
Yes |
| DVR: |
Yes |
| Certificate: |
CE & RoHS |
| Type: |
LCD Monitor |
| Material: |
LCD |
| Color: |
Color |
| Horizontal Resolution: |
480tvl |
| Screen: |
Color, 7" Color Digital LCD Mirror |
| Size: |
210*116*25mm |
Product Description

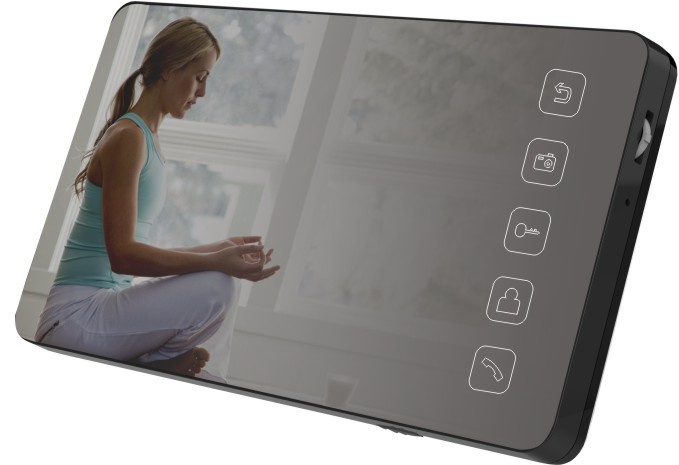

7" Video Intercom Home Security Door Phone (M2107ECT)
Hands-free video door phone
Support 4 wires connection
Feature:
1.7" color digital LCD
2. Mirror touch key
3. Hands free design, perfect intercom with clear voice
4. The optional multi-language friendly interface
5.8 polyphonic ring-tones switch freely
6. Easy to operate
7. Max support 4 indoor monitors+ 2 outdoor panel+2 CCTV cameras
Main function:
1. Lock control
2. Support micro SD card
3. " Don't disturb" function
4. Broadcast function
5. Monitor listening
6. Brightness, contrast and color adjustable
7. Real-time monitoring to doorbell or CCTV camera
7. Make internal call to other monitors
8. Image capturing & picture browsing
9. Call transfer
Support Solution:
A. 1 doorbell + 4 monitors+3 CCTV Camera
B. 2 doorbells + 4 monitors+ 2CCTV Camera
|
No. |
Content |
Details |
|
1 |
Panel |
7" color digital LCD |
|
2 |
Resolution |
800 x480 |
|
3 |
Intercom |
Hands-free |
|
4 |
Wire connection |
4 wires (video, power, ground, audio) /CAT-5 (apartment system) |
|
5 |
Audio |
300mVp-p (1KHz,300Ω) |
|
6 |
Audio distortion |
≤3% |
|
7 |
Frequency response |
400-3.5K |
|
8 |
Intercom distance |
60m(RVV4x0.5)100m(RVV3*0.5+SYV75-3) |
|
9 |
video |
1Vp-p 75Ω(input)(NTSC,PALauto) |
|
10 |
Keys |
Touch keys(5 keys) |
|
11 |
Support outdoor camera |
2 |
|
12 |
Support CCTV |
2 |
|
13 |
Extension |
Up to 3 |
|
14 |
Working voltage |
AC100-250V , 50/60 Hz, |
|
15 |
Working consumption |
7W(Max), 1W(In standby) |
|
16 |
Working temperature |
0ºC to +50ºC |
|
17 |
Storage temperature |
-20ºCto +70ºC |
|
18 |
Dimension |
210*116*25mm |
