7 Controller Setting Error Display and Alarm Test Machine
Product Specifications
| Prod Model: |
xm-7 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Material Testing Machine |
| Weight: |
0-100Kg |
| Power Source: |
AC220V |
| Oil Cylinder Position: |
No |
Product Description
The 7 controller setting error of fault display and alarm test machine

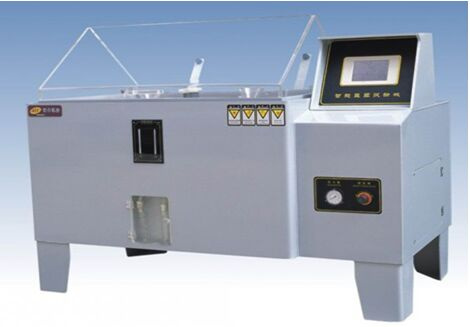

(1) Name: * intelligent automatic salt spray test machine.
(2). XM-PC90 type: type.
(3) specification:
1, the inner box size: 900*600*500*mm (W*D*H*)
2, carton size: 1380*800*1150*mm (W*D*H*)
3, power: 220V, single phase 2KW, 50HZ.
The characteristics:
A: box material * this machine box adopts Germany imported high temperature and humidity resistance and high corrosion resistance of A
Levels of gray PVC (8mm in thickness), the use of advanced production technology of three-dimensional reinforcing ring, welding
A structure, strong, never deformation, generous, apply to salt spray, such as copper acetate
A variety of test specification test.
B: reagent added bottle * hidden integrated reagent added bottle, easy cleaning, convenient operation.
C: pressure of saturated barrel using imported German A-level grey PVC material, pot shaped structure exquisite
Design, high temperature resistance, high humidity, high pressure, high corrosion resistance, never rust, the lifting of the stainless steel
Long term use of rusty confused material. With the progress of the times in the design of cross.
D: test chamber shelf using the German design class a grey PVC material imported into exquisite "V"
Long, and the transparent glass diameter of 10mm "O" shaped strip collocation, to ensure that by
The product tested by 15 DEG -30 DEG angle random adjustment. Test samples using two plane type index,
Adjustable angle, surrounded by fog off evenly, by the fog completely consistent, accurate test results,
Place a large number of test samples.
E: test chamber upper cover using 5mm thick transparent high impact acrylic (import) board, the use of physical
Bending method in the design of a 100 degree ridge type transparent cover. The residual mist of dew in the upper cover along the cover
Wall and fall to the sealing groove. In case the drops to be tested products.
F: * with self investigation fault self detection, corresponding advanced function, is a good choice you twice.
G: * operation interface with key lock function, achieve the operating personnel management service mode,
Others can not change or change the parameters test.
H: * microcomputer control can realize the continuous, intermittent, programmable etc. various spray mode selection.
I: * all digital circuit design, accurate temperature control, using high quality imported electrical materials, synthetic
Wiring design, long service life, complete test functions.
J: * work interface dynamic flashing display, and a buzzer alarm prompt working condition.
K: it has the function of automatic / manual water, water shortage can automatically supplement water won't interrupt test.
L: * is the outage time and memory function, make calls according to the original time to complete the remaining time
The experimental work, add double overheating protection, water shortage warning, to ensure safe use.
M: * fog seal groove through environmental protection water sealing mode, prevent mist leakage.
N:. The spray tower with conical disperser, with guiding mist, adjust the spray and even fall
Fog and other functions.
O: * instrument using ergonomic design, beautiful appearance, convenient operation, at the end, and the buzzer
Salvo vioce alarm.
Two the technical basis:
According to JIS, ASTM, CNS, GB standard operating parameters setting.
A salt spray test; NSS, ACSS.
The test room: 35 - 1 deg. C.
Pressure air barrel: 47 - 1 deg. C.
Corrosion test: CASS B.
The test room: 50 - 1 deg. C.
Pressure air barrel: 63 - 1 deg. C.
C: air supply system: * air pressure of 1Kg/cm2 is divided into two period of adjustment. A period of adjustment for the western
2Kg/cm2, imported air filters, with drainage function. The two section for precision adjustment
1Kg/cm2, 1/4 pressure gauge, the display precision.
Two: spray:
A principle of Bernoulli absorbs brine then atomization, atomization degree, without blocking crystallization phenomenon,
To ensure the testing carried out continuously.
B. The nozzle made of toughened glass, can adjust spray volume and ejection angle precision of water
The crystal glass nozzle (PYREX) for 10000 hours to ensure that no crystallization and blockage of account.
C * 1~2ml/h adjustable spray volume (ml/80cm2/h Standard Test 16 hours average
Volume). Measuring cylinder using embedded installation, beautiful appearance neat, convenient operation and observation,
Reduce equipment installation space.
Three: heating system:
Steam is used to heat the way to reduce the standby time, fast heating speed, when the temperature is reached, the automatic cutting constant
Temperature, accurate temperature, less power consumption, pure titanium heating tube, acid and alkali corrosion resistance, long service life.
Four: control system: adopting imported high precision microcomputer intelligent man-machine dialogue 6.5 inch LCD touch screen control
Instrument, temperature, time, alarm, mist, spray, keypad lock and other functions integrated control, with dynamic display
Display function, the screen display design beautiful clear, beautiful and generous, humanized with platinum material temperature
The whole sensor, temperature error of plus or minus 0.1 DEG C.
Five: safety protection: * test chamber pressure of saturated barrel heating tank with liquid expansion safe temperature controller
0~120 C (Italy EGO). The use of automatic, manual two kinds of water system, automatic or Manual Supplement
Filling pressure barrel, laboratory level, prevent the ultra-high temperature water damage equipment.
Six: the demisting system:.
Remove salt fog test box machine, to prevent the corrosion of the gas out of damage to other sophisticated laboratory equipment.
Seven: safety protection device:.
A: when the water level is low, the power supply is automatically cut off, the safety warning light dynamic display device.
B: super high temperature, automatically cut off the power supply of the heater, the safety warning light dynamic display device.
C: reagent (saline) water level is low, the safety warning light dynamic display device.
D: leakage protection function, prevent leakage or short circuits caused by personal injury and equipment fault.
7 eight: working principle: principle of Bernoulli absorbs brine then atomization, atomization degree, without blocking crystallization
The phenomenon, which can ensure the test carried out continuously, the compressed air through it to then ozzle way bubble tower
Be wet, the corrosion solution and air atomizing nozzle to rot
Inhibition of aerosol, box heater to maintain the box
Temperature.
(12) the standard installation is equipped with: *
1:V type /O type rack 1 sets
2: collector 2
3: glass nozzle 1
1 sets of 4: spray tower
5: automatic water system 1 set
6: in addition to the 1 sets of fog system
7: reagent sodium chloride 2 bottle (500 grams / bottle)
8: operating instructions 1
9: Plastic rust bucket 1 (5ML cup)
