| Supplier: | Auka Industrial Limited |
|---|---|
| Price: | Negotiable/Piece |
| Min Order: | 1/Piece |
| Quantity:: | |
| Trade Terms: | FOB,EXW |
|
|
| Prod Model: | AL679DRM |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Resolution: | 1024X600 |
| Aspect Ratio: | 16:9 |
| Brightness: | 250CD/M2 |
| Backlight: | LED |
| Contrast Ratio: | 700:1 |
| Type: | Recording Equipment |
| Function: | Signal Monitoring Equipment |
| Certification: | RoHS |
| Condition: | New |
Advanced Features
*Sharpness *Color Temp
*Picture Mode *Check Field
*H/V Delay *Balance
*Horizontal Position *Vertical Position
*Horizontal Size *Vertical Size
*Image Flip(U/D,L/R) *Reset
*Front Earphone Jack *Center Marker
*Aspect Tatio (4:3/16:9/full screen/
Zoom1&2/Panorama/Pixel to Pixel)
*PIP: PIP Mode(small/medium/large/PBP/POP)
PIP Source(AV/Component)
PIP Position(upper left/ right;lower right/left)
PIP Swap
*Tally Green/Red/Yellow Color
*Screen Markers: 96%,93%,90%,85%,80%
*Scan Mode:Standard,Overscan,Underscan
Application Description

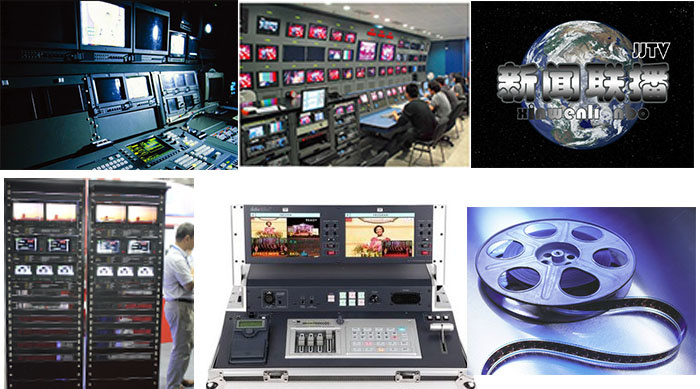

Rack Mount LCD Monitor Have been Widely Used in All
Levels of TV News Production, Post Production, Programme
Broadcasting and TV Broadcasting Trucks, Special Vehicles
Video Surveillance and Other Fields. Since This Series are
Working With Other Adjacent Professional Equipments,
Therefore, High Stability, High Reliability and Electromagnetic
Compatibility are Very Important Conditions to Make Sure the
Whole System Work Smoothly.
| Display | |
| Model: | AL679-DRM |
| Brightness: | 250cd/m 2 |
| Dot Resolution: | 1024x600 Pixels |
| Contrast Ratio: | 700:1 |
| Aspect Ratio: | 16:9 /4:3/full screen |
| Backlight: | LED |
| Viewing Angle: | 75°/75°(L/R) 70°/75°(U/D) |
| Input | |
| Input Signals: | 3G/HD/SD-SDI,HDMI,Component,Composite |
| Output | |
| Output Signals: | 3G/HD/SD-SDI,Component,Composite |
| Power | |
| Power Consumption: | ≤22W |
| Input Voltage: | DC 7V-14V |
| Enrivonment | |
| Working Temperature: | -10ºC~55ºC |
| Storage Temperature: | -20ºC~65ºC |
| Dimension | |
| Unit Size: | 436.4L × 132.5W × 30H(mm) |
| Unit Weight: | 2.08kg |
