7 Inch High Resoluction Broadcasting Equipment

Name: 7 Inch High Resoluction Broadcasting Equipment
Brand: china-manufacturer-directory.com
SKU: 688460232
Availability: InStock
Rating: 4.5 (51 reviews)

Supplier:	Shenzhen Feelworld Technology Co., Ltd.
Price:	Negotiablepiece
Min Order:	1piece
Quantity::
Trade Terms:	FOB,CIF

Product Specifications

Prod Model:	FW789
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	7 Inch
Resolution:	1280X800
DOT Pitch:	0.117(W) * 0.117(H)
Brightness:	400CD/M2
Contrast:	800:1
Aspect Ratio:	16:9
Backlight:	LED
Response Time:	5ms
Inputs:	3G/HD/SD-Sdix2,HDMI,YPbPr,Video,Audio
Outputs:	3G/HD/SD-Sdix2,HDMI,YPbPr,Video

Product Description

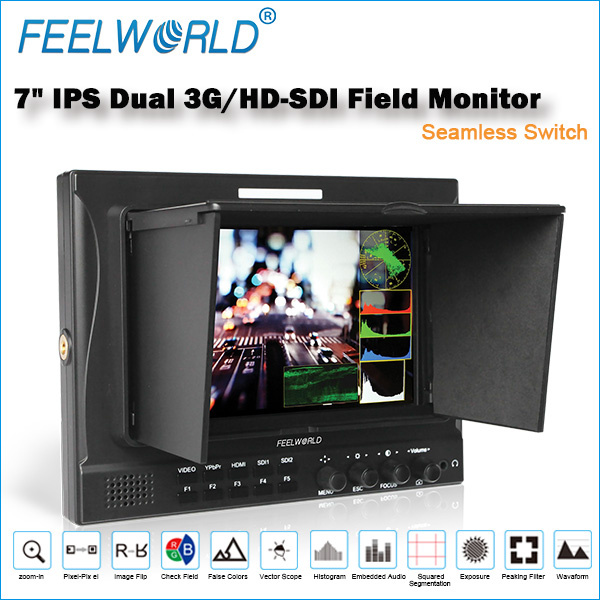

FEELWORLD 7 inch LCD Monitor with IPS Panel for Professional Camera FW789
The FW789 is one of the newest with waveform, vectorscope and RGB Histogram is now available. These key features assist the video professional in getting the shot right the first time. The FW789's 1280 X 800 high definition IPS panel is optimal for displaying its advanced software features. The FW789 is also equipped with false color and peaking, enabling the video professional to deliver precision shots in the field.
The FW789's HDMI input is complimented by Dual 3G-SDI input/output along with the feature of headphone audio out. With 2 SDI inputs , fast swap for toggling between both inputs,Seamless Switch.The FW789 also includes composite and component connections, giving you the versatility to support all of your signals and video equipment.
The customized function buttons can be tailored for your workflow and optimization. Furthermore,The FW789 is well suited for a variety of video applications, from the studio to on location. Enjoy high-resolution, versatile monitoring wherever you need it.

Description:	FEELWORLD 7 inch LCD Monitor with IPS Panel for Professional Camera FW789
Model:	FW-789
Resolution:	1280x800
Dot pitch	0.117(W) x 0.117(H)
Brightness:	400cd/m²
Contrast:	800:1
Aspect ratio:	16:9
Backlight:	LED
Response time	5ms
HDMI Support Mode:	1080/24p/25p/30p;50i/50p;60i/60p;720/50p/60p;480i/480p; 576i/576p
Inputs:	3G/HD/SD-SDIx2,HDMI,Ypbpr,Video,Audio
Outputs:	3G/HD/SD-SDIx2,HDMI,Ypbpr,Video
Viewing Angle:	89°/89°(L/R) 89°/89°(U/D)
Power Consumption:	≤12W
Input Voltage:	DC 7-12V
Install Way:	1/4"-20 Thread Socket(All 4 Sides)
working Temperature:	-10°C~55°C
storage Temperature:	-20°C~65°C
Unit Size:	210L × 160W ×31.5H(mm)
Unit Weight:	620g

SDI Support Mode:

NO.	Resolution	Catalogue
1	1080P@60HZ/59.94HZ	3G-SDI
2	1080P@50HZ	3G-SDI
3	1080I@60HZ/59.94HZ	HD-SDI
4	1080I@50HZ	HD-SDI
5	1080P@30HZ/29.97HZ	HD-SDI
6	1080P@25HZ	HD-SDI
7	1080P@24HZ	HD-SDI
8	720P@60HZ/59.94HZ	HD-SDI
9	720P@50HZ	HD-SDI
10	720P@30HZ/29.97HZ	HD-SDI
11	720P@25HZ	HD-SDI
12	720I@24HZ/23.97HZ	HD-SDI
13	480I@60HZ/59.94HZ	SD-SDI
14	576I@50HZ	SD-SDI
