Product Specifications
| Prod Model: |
TQS7001-08 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Screen Size: |
7 Inch TFT LCD Monitor ,16:9 |
| Input: |
4-Way Video Input |
| System: |
PAL and NTSC Auto Switching |
| Resolution: |
480 X R-G-B X 234 |
| View Angle Range: |
(up/Down/Left/Right): 40/40/60/60 |
| Image Sensor: |
1/3" Sony CCD |
| Effective Pixels: |
N: 510X492 Pixels P: 500X582 Pixels |
| Lens F: |
2.8mm |
| Waterproof Rate: |
IP68 |
| Night Vision Distance: |
45ft |
| Type: |
Monitoring System |
| Application: |
Sound Monitoring |
| Feature: |
Waterproof / Weatherproof |
| Sensor: |
CCD |
| Horizontal Resolution: |
420tvl |
| Technology: |

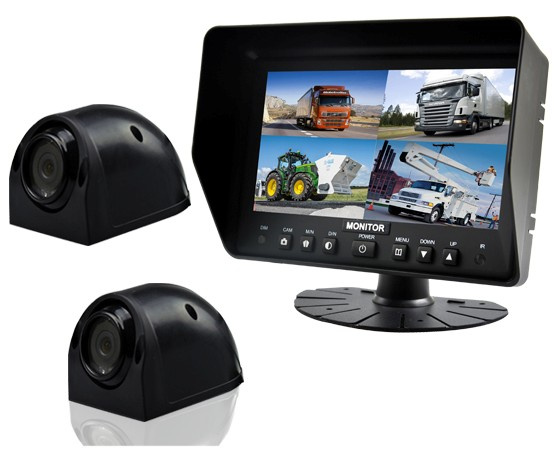

Quad Rear View Monitor System |
Product Description
Key Feature:
- Built-in quad control box function
- Rear view monitor support four camera inputs
- With remote controller
- Single View/Split view/Quad view selectable
- 7 languages OSD display
- PAL/NTSC optional, MIRROR/NORMAL image optional
- Automatically turn on when the reversing gear is engaged
- Trigger priority: CAM 1> CAM 2> CAM 3> CAM 4
- With high-low voltage protection and short circuit protection
- IR rearview camera
- DC 12-24V for heavy duty
Monitor Specifications:
- 7 inch TFT LCD monitor, 16: 9
- Wide view angle(CR> 10): (up/down/left/right): 40/40/60/60
- Resolution: 400 R. G. B X234 dots
- Color system: PAL/NTSC(selectable)
- Power requirement: 12/24V DC
- Power consumption: 5W
- Operating temperature: -20° To +70°
- Storage temperature: -30° To +80°
- Dimension: 183 (L) X 125 (W) X 38 (D)
Camera Specification:
- Type High resolution backup camera
- Image Sensor 1/4" CCD
- TV System NTSC/PAL Optional
- Effective Pixels: N: 510X492 Pixels P: 500X582 Pixels
- Horizontal Resolution: 700TVL
- Lens Angle 120°
- Minimum Illumination 0Lux (LED ON)
- IR LED 10PCS
- Night Vision distance 45ft
- Operating Temperature -20~+70
- Lens f=2.8mm
- Power Supply DC12V
- Waterproof Rate IP68
- Shell Material Aluminium alloy
