Product Specifications
| Prod Model: |
M2107DCC+D10AD |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Screen: |
7 Inch Touch Screen |
| Connection: |
4 Wires |
| Call Transfer: |
Can Transfer to Mobile/Telephone |
| Intercom Transfer/Call/Broadcast: |
Yes |
| DVR: |
Yes |
| Multimedia: |
Yes |
| Calendar & Alarm: |
Yes |
| Voice Message: |
Yes |
| Image Capturing: |
Yes |
| Wireless: |
Wired |
| Type: |
Video Doorbell |
| Power Source: |
Plug |
| Style: |
4 Indoor Monitor with 2outdoor Camera |
Product Description
See who's at the door from your living room/kitchen.
Talk to them from your living room/kitchen.
Hands free talk possible.
Mute to keep silent call with LED flashes.
Multiple camera inputs possible
Can transfer the call to mobile/telephone, speack & unlock by telephone
One outdoor station at front door, the other one outdoor station at back door.
1. Two way communication (Talk with visitor)
2. Unlock the door
3. Monitoring from outdoor camera and indoor monitor
4. Intercom between different monitors
5. Adjustable brightness, color, contrasts and volume
6. Changeable chord melody
Introduction
Digital 7" LCD screen with touch buttons, hands free, surface-mounted
Built-in power supply
Solution: 2 doorbell and 2 CCTV camera work with 4 monitor
Support room-to-room internal communication
Support broadcasting to the other indoor monitors
Support SD Card(32GB Max)
Support saving images, video and audio with SD card
Support recording videos and audio from doorbells automatically with SD card
Feature:
1.4-wire, 7'' color digital LCD (capacitive touch screen)
2. Support lock control
3.1/4'' color CCD camera
4. Doorbell call transfer to mobile phone/telephone
5. Max support 4 indoor monitors+ 1 outdoor panel+8 CCTV cameras
Detail Description:

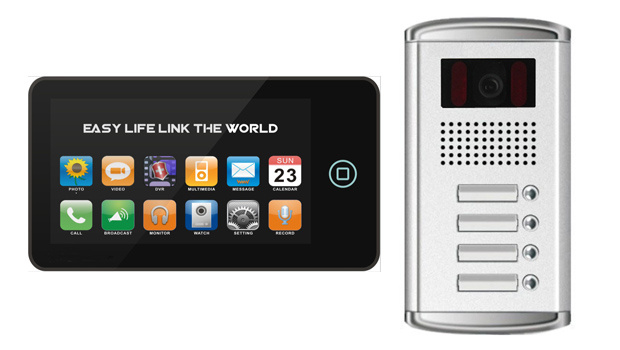

Indoor monitor
1. Intercom function
2. Door monitoring function
3. Lock control
4. Optional volume adjustment
5. Appropriate color, contrast and brightness
6. Don't disturb choice
7. Visitor-call transfer
8. Indoor monitor listening function.
9. Image format convert 16: 9 to 4: 3
10. Make broadcast
11. Video and audio recording
12. Multimedia manager
13. Picture capture
14. Touch key
15. TFT resolution: 800x480
Outdoor panel
1. Metal case
2. High-quality circuit for clear voice
3. Electric-controlled lock release
4. Surface
5. Night Vision& Waterproof
Specification:
Indoor monitor
Display screen: 7'' color digital LCD (capacitive touch screen)
Resolution: >480TV lines
Power Supply: DC 15V 1A
Video input: 75omh, 1Vp-p, CCIR standard
Power consumption: 2.6W ~9 w
Wiring mode: 4 wires, polar
Dimension: 210x116x25mm
Video channels: 4
Support external SD memory card
Outdoor panel
Subscribers quantity: 1
Camera CCD: 1/4' CCD
Construction: Surface
Operating temperature: - 20 C~+ 60 C
Connection: 4 wires
Lock control: Yes
Power: 10V-14V
Dimension: 315*125*68mm
Supports Solution:
Solution 1: 2 doorbells + 2 CCTV Cameras + 4 monitor
Solution 2: 1 doorbells + 3 CCTV Camera+ 4 monitor
|
Specification: |
|
|
Screen |
7" color TFT |
|
Horizontal resolution |
480TVL |
|
Connection |
4Wire |
|
Maximum length of line connection |
100M |
|
Video channels quantity |
2+1 |
|
Additional monitors quantity |
3 |
|
Memory block connection |
built-in card slot |
|
Image capture |
support |
|
Video and audio capture |
support |
|
DVR function |
support |
|
Lock control |
support |
|
Power |
built-in power 15V 1A |
|
Power consumption |
12W |
|
Standby power |
0.8W |
|
Dimension |
210*116*25mm |
