Product Specifications
| Prod Model: |
M2107DCC+D20ADM03 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Screen Size: |
7" |
| Horizontal Resolution: |
More Than 480tvl |
| Connection: |
4 Wires |
| Maximum Length Of Line Connection: |
to 100 |
| Video Channels Quantity: |
4 |
| Additional Monitors Quantity: |
to 4 |
| Memory Block Connection: |
Built in Card-Reader for SD Card |
| Image Capture: |
Yes |
| Telephone Function: |
Yes |
| Wireless: |
Wired |
Product Description

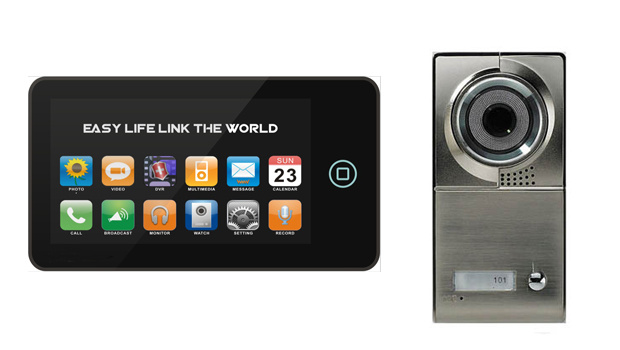

7" Touch Screen Video Phone Intercom home security
Feature:
1.4-wire, 7'' color digital LCD (capacitive touch screen)
2. Support lock control
3.1/4'' color CCD camera
4. Doorbell call transfer to mobile phone/telephone
5. Max support 4 indoor monitors+ 1 outdoor panel+8 CCTV cameras
Detail Description:
Indoor monitor
1. Intercom function
2. Door monitoring function
3. Lock control
4. Optional volume adjustment
5. Appropriate color, contrast and brightness
6. Don't disturb choice
7. Visitor-call transfer
8. Indoor monitor listening function.
9. Image format convert 16: 9 to 4: 3
10. Make broadcast
11. Video and audio recording
12. Multimedia manager
13. Picture capture
14. Touch key
15. TFT resolution: 800x480
16. Doorbell transfer to a mobile or a telephone
Outdoor panel
1. Metal case
2. High-quality circuit for clear voice
3. Electric-controlled lock release
4. Surface
5. Night Vision& Waterproof
Specification:
Indoor monitor
Display screen: 7'' color digital LCD (capacitive touch screen)
Resolution: >480TV lines
Power Supply: DC 15V 1A
Video input: 75omh, 1Vp-p, CCIR standard
Power consumption: 2.6W ~9 w
Wiring mode: 4 wires, polar
Dimension: 210x116x25mm
Video channels: 4
Support external SD memory card
Outdoor panel
Subscribers quantity: 3
Camera CCD: 1/4' CCD
Construction: Surface
Operating temperature: - 20 C~+ 60 C
Connection: 4 wires
Lock control: Yes
Power: 10V-14V
Dimension: 185x92x41mm
Support Solution:
Solution 1: 2 doorbells + 8 CCTV Cameras + 4 monitor
Solution 2: 1 doorbells + 9 CCTV Camera+ 4 monitor
|
Model |
M2107DCC+D20ADM03 |
|
Screen |
color |
|
Screen size |
7' ' |
|
Horizontal resolution |
more than 400TVL |
|
Connection |
4 wires |
|
Maximum length of line connection |
to 100m |
|
Video channels quantity |
2 doorbells+2 CCTV |
|
Additional monitors quantity |
to 4 |
|
Memory block connection |
Built in card-reader for SD card |
|
Image capture |
Yes |
|
Video and audio capture |
Yes |
|
Telephone function |
Yes |
|
Lock control |
Yes |
|
Power |
AC100-240 V |
|
Standby power |
9W/2.6W |
|
Dimension |
210x160x21mm |
