Hyrite Lighting Co. >> 700mA 10W Triac No Flickering Switching Power Supply Dimmable

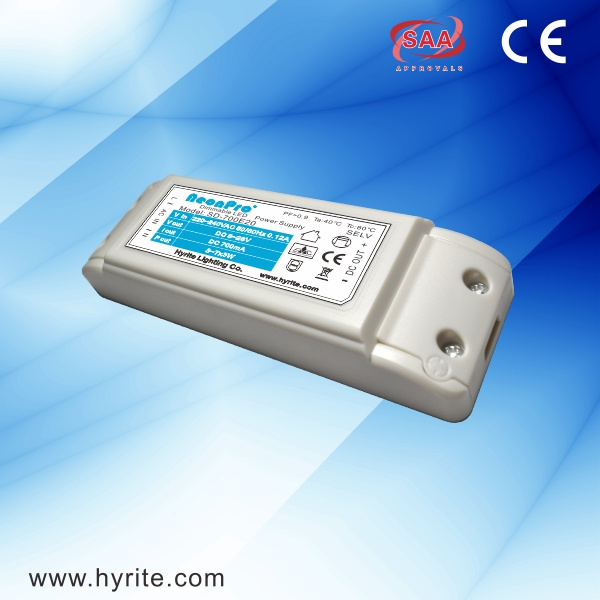

700mA 10W Triac No Flickering Switching Power Supply Dimmable

Name: 700mA 10W Triac No Flickering Switching Power Supply Dimmable
Brand: china-manufacturer-directory.com
SKU: 758253355
Availability: InStock
Rating: 4.6 (59 reviews)

Supplier:	Hyrite Lighting Co.
Price:	US $ 5.9-6.1/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	SD-700E10
Markets:	North America,South America,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output Power:	10W
Output:	Constant Current or Constant Voltage
Input Voltage:	170-250V
IP Rating:	IP20 Non Waterproof
Warranty:	2 Years Warranty
Use:	for Spot Light, Down Light, Panel Light
Size:	1154527mm
Case:	Plastic
Dimmer:	Triac Dimmer
Certificates/Standards:	CE
Usage:	Construction, Building
Circuit Structure:	PWM Controlled
Output Type:	Terminal
Driving Method:	Constant Voltage or Constant Current
Certification:	CE, EMC, SAA
Power Supply Voltage:	AC220-240V
Brand:	Neonpro

Product Description

700mA 10W Triac No flickering Switching Power Supply Dimmable

*Constant Current output IP20
*Leading or trailing edge dimming, 10%-100% no flickering
*Used for LED Module, Strip, Spot Light, Down Light, Panel Light ect
*Protection: Over Load, Over Heat, Short Circuit
*TRIAC Dimming
*CE SAA approved
*2 years warranty

Technical Specification

Model no.	SD-700E10
Input voltage	170-250 VAC 50/60 Hz
Max. power	10W max
Dimmer	TRIAC Dimmer
Output type	Constant Current or Constant Voltage
Efficiency	85%
Output	700mA
Overload protection	105% hiccup mode, auto-recovery
Over voltage protection	120% rated output voltage
Withstand voltage	I/P~O/P:1.5kVAC, 1 minute
Operating temperature	-25~40 degree
Installation	Non Waterproof
IP rating	IP20
Certificates/standards	CE
Connection input/output	Terminal
Dimensions(LWH)	1154527 mm
Packing information	100Pcs/ Carton, G.W 13KG

Hyrite Lighting Company, also known as NeonPro Co, has 20 years experience in the design, development and manufacturing of electronic power supplies, one of an extremely successful range of signage products including, over the last seven years, LED modules and driver units.

The senior management having recognized the ongoing success and further potential of our LED products and utilizing their experience and proven track record in innovative product design and manufacture has formed Hyrite Lighting Company solely dedicated to manufacturing products specifically for the LED signage and lighitng markets.

Our products are surrently being used in many countries under different technical standards in a variety of climate conditions.

Pls kindly check our main products below,

*IP67 Slim high efficiency constant voltage LED power supply (New)

*Traditional IP67 constant voltage waterproof LED power supply

*IP45 Rainproof constant voltage LED power supply.

*IP20 indoor type LED power supply.

*Constant Current LED Driver for LED lighting.

*Dimmable LED driver.

*LED module for Channel letter/light box.

Certificate: CE RoHS SASO SAA TUV UL approved

In addition we offer comprehensive OEM and ODM services to our partners.

We sincerely welcome your visiting and valued advices to us. Any questions from you, our experienced salesperson will feedback to you within 12 hours.
