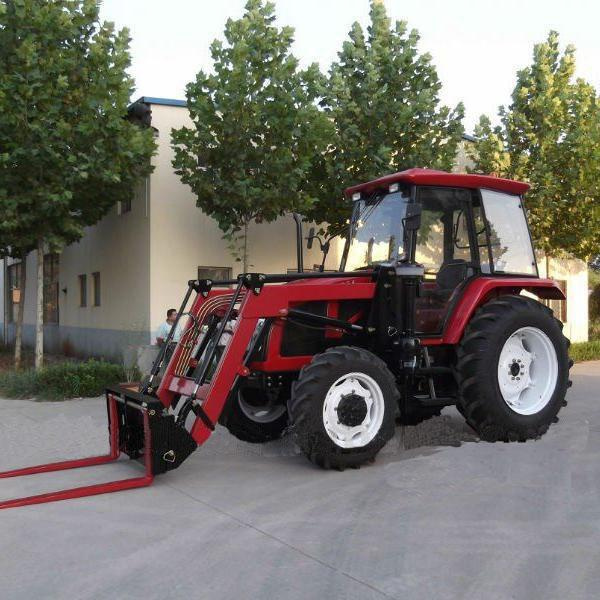

70hp 4wd small tractor farm machinery with front end forks
1. Tractor strong power
2. Large torque reserve
3. Compact structure
4. High traction
5. One year warranty
******Basic configuration
70HP 4Wheel Drive
4 cyliner diesel engine
Rated power: 51.5 kw
Transmission box: F8+R2 or F16+R2 with creeper
Hydraulic power steering
Double speed PTO 540/760rpm
Dual clutch, independ operation
Partial separated hydraulic hitch
Draft positional adjustable control
Category 2 rear-mounted three-point linkage
With Roll Over Protection Structure System
*****Optional Devices:
Enclosed fan cabin
Luxury Cabin
Heater or AC
Front and Rear Ballast
Paddy tyre
Air brake
One or two group output valve
Swing drawbar
High pressure hydraulic hitch
*****Features of QLN704 Farm Tractor
1. This tractors with strong power, compact structure, advanced design, and complete function.
2. Equipped with good quality engine showing advanced capacity, low fuel consumption and high economic efficiency
3. It has flat floor, right side installed operation system, all these characteristics makes operation comfortable and efficiency.
4.80L enlarged fuel tank, ensure long working time
5.8+2(optional 16+4) Transmission type, with reasonable matching of gear position and strong agricultural adaptability.
6. Independent hydraulic fuel system with high reliability.
7. Strengthened chasis having great extension capacity and high reliability.
8. Intensified pressured lifter may be optimal with higher lifting, better operation and high reliability.
9. Carbon fiber composite material is used for driving cab and covers with tensile strength 8 times of steel and gravity 1/4 of steel. The material durability is great for 20 years without color change. Stiffness is also very high in that restoration of shape can be realized after forceful impact.
10. Humanized Euro style appearance with full glass view and air tight driving cab. Air conditioning and sound system will be optimal.
*****If you are interested in our tractor, please feel free to contact us:
Sindy Chen
+++++++++++++++++++++++++++++
HENAN HAIHENG IMPORT AND EXPORT Co., Ltd
MOBIL: +8615890188201
TEL: 0086-371-88888904-EXT 855
FAX: 0086-371-86664545
Specifications and Parameters of 70HP Agriculture tractor:
|
Basic configuration |
|
Model |
QLN-700/704 |
|
Dimensions |
Length×Width×Height(mm) |
4010×1915×2750 |
|
Wheel Tread(mm) |
Front Wheel(mm ) |
1400(4WD) 1460 ( 2WD ) |
|
Rear Wheel(mm) |
1530_1830 |
|
Min.Ground Clearance(mm) |
430(2WD) 340(4WD) |
|
Dry Mass |
With Cab(kg) |
2800(2WD) 2880(4WD) |
|
Without Cab(kg) |
2585(2WD) 2665(4WD) |
|
Engine |
Trade Mark or Brand |
YTO/YUCHAI |
|
Engine Model |
Vertical Water Cooled 4-stroke |
|
Directly Injection |
|
Number of Cylinder |
4 |
|
Cooling System Type |
Water Cooled |
|
Rated Power(kw) |
51.5KW |
|
Max. Torsion(N.M) |
270 |
|
Rated Speed(r/min) |
2300(YCD4J11T \ LR4B5 \ YC4A100) \ 2200 ( YT4B \ YC4A90 ) |
|
Fuel Tank |
Volume(L) |
78 |
|
Transmission System |
Clutch |
Single,Dry,Dual Stage Type |
|
Gear Box |
F8+R2 |
|
Differential |
Closed 4-planetary Gears |
|
Differential Lock |
Mechanical Sliding Sleeve |
|
Braking System |
Wet Double Plate Disc Brake |
|
|
Running System |
Tyre Model |
F/R(2WD) |
6.5_20/14.9_30 |
|
F/R(4WD) |
8.3_24/14.9_30 |
|
Steering System |
Hydraulic Wheel Steering |
|
|
Working Device |
Hydraulic System Type |
Positive lifter |
|
Linkage Type |
II Rear Mount 3-point Linkage |
|
PTO(Standard) |
φ38,8teeth φ35,6teeth |
|
PTO Speed(r/min) |
540/760 |
|
Drawbar Type |
Fixed Drawbar |
|
Optional configuration |
|
Cab |
AC |
Heater |
Air-brake |
|
Adjustable Seat |
Multiple Unit Valve |
ROPS |
Sunvisor |
|
Double Crush Lifter |
Radio |
CD Player |
Paddy Tyre |
|
Bob-weight |
Frontballest |
11×20=220kg 20kg/pcs |
|
|
Rearballast |
2×80=160kg 80kg/pcs |
|
|
Paddy Tyre |
F/R |
6.5_20/11_32 |
|
|
F/R(optional) |
8.3_24/11_32 |
|
