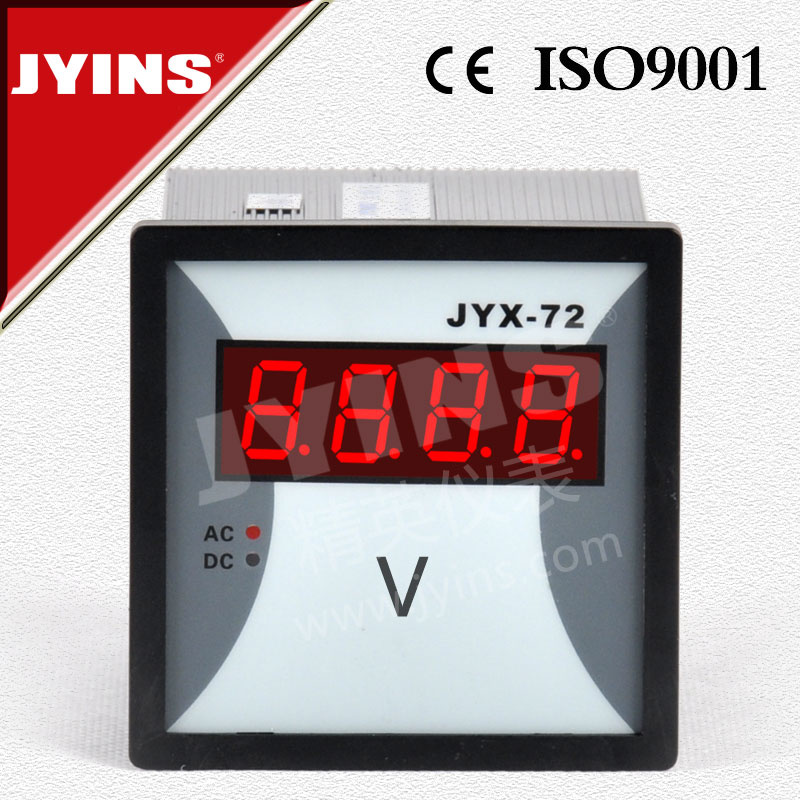

72*72 High Quality Digital Display Panel Meter

Name: 72*72 High Quality Digital Display Panel Meter
Brand: China-Manufacturer-Directory.com
SKU: 721779955
Availability: InStock
Rating: 4.5 (145 reviews)

Supplier:	Yueqing JYins Electric Technology Co., Ltd.
Price:	US $ 7.50-12/Piece
Min Order:	50/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	JYX-72
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	120*120
Theory:	Electronic Meter
Usage:	Meter for Industry and Home Use
Display:	Digital
Power Source:	AC
Installation:	General Installation Meter

Product Description

Product Specification: JYX-72 Ammeter\Voltmeter
Outline Size: 72X72 Hole cutour size: 67X67
Product Discription and Technical Parameter
Be suitable for measure and display current and voltage of eletricity system and automation control system, it have an advantage of high precision, good stability, anti-vibration. The product conform to GB/T13978-1992 standard production.
Function: For measure AC current

Feature:
1. Display: Three and a half display(red)
2. Accuracy: ± (1.0%read± 2digit)
3. Standard: IEC51-1
4. Auxiliary power: AC 220V± 10% 50/60Hz
5. Input signal: AC current
6. Range: Above 100mA-5A AC5A mach with current transformer
7. Power-consumption: <3.2VA
8. Maximum signal loss: <0.5VA
9. Working envirenment: Temperature 0C~40C relative humidity: Le; 85%
10. Storage envirenment: Temperature -40C~+60C relative humidity: Le; 70%

model	range	distinguish	Input resistance	Transformer various	Accuracy	Max input
AC& DC Voltage	199.9mV	100 μ V	5M Ω	Direct input	± 0.5%F. S ± 2Digit	5V
	1.999V	1mV	5M Ω	Direct input	± 0.5%F. S ± 2Digit	10V
	19.99V	10 mV	5M Ω	Direct input	± 0.5%F. S ± 2Digit	50V
	199.9V	100 mV	5M Ω	Direct input	± 0.5%F. S ± 2Digit	500V
	600V	1V	5M Ω	Direct input	± 1%F. S ± 2Digit	1000V
AC& DC Current	19.99mV	10 Μ v	10 Ω	Direct input	± 0.5%F. S ± 2Digit	500mA
	199.9mV	100 μ V	1 Ω	Direct input	± 0.5%F. S ± 2Digit	1A
	1.99V	1mV	0.1 Ω	Direct inputor CT input	± 0.5%F. S ± 2Digit	5A
	5A	10 mV	0.1 Ω	Direct inputor CT input	± 0.5%F. S ± 2Digit	10A
	> 19.99V	100 mV	0.01 Ω	5A or 75mV	± 0.5%F. S ± 2Digit	25A
