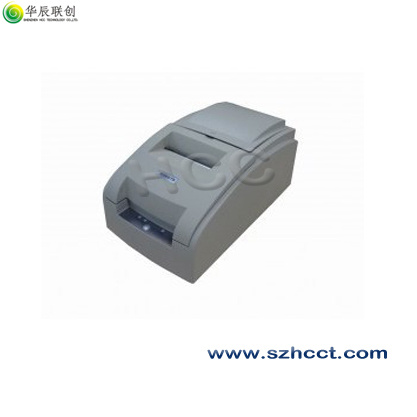

76mm Ethernet DOT Matrix Printer with Parallel USB Serial
Product Specifications
| Prod Model: |
HRP76-0121 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Print Method: |
9-Pin Serial Bi-Directional |
| Print Density: |
200 Dots (Whole Dots) / 400 Dots (Half Dots) |
| Print Speed: |
4.4 Lines/Sec |
| Reliability: |
5 Million Lines (Mcbf) |
| Feed Speed: |
100mm/Sec High Quality Common White Paper or Impac |
| Type: |
Dot-matrix |
| Interface Type: |
USB Serial Parallel |
| Max. Paper Size: |
76mm |
| Usage: |
Receipt Printer and Ticket Printer |
Product Description
76MM White Ethernet Dot Matrix Printer-- HRP76
Feature
Printing Speed 100mm/second;
Stable Printing;
Pretty Outside Design.
| Print Method | 9-pin serial bi-directional |
| Print Density | 200 dots (whole dots) / 400 dots (half dots) |
| Print Speed | 4.4 lines/sec |
| Reliability | 5 million lines (MCBF) |
| Feed Speed | 100mm/sec |
| Roll Model | high quality common white paper or impact paper roll |
| Width | 76.0 ± 0.5mm |
| OD | 75mm (max.) |
| ID | 75mm (max.) |
| Thickness of Per Layer | 0.06-0.085mm, total thickness ≤0.2mm |
| Ribbon | Ribbon Cassette ERC –39 purple or black |
Black Mark check
| Black mark printed on the right of the front of note, its length 5mm, width 12mm (min); the reflection rate of black mark part: ≤10%, other part: >75%. |
| Print Font | ASCII character set II, 5×7dots and 7×7dots
GB level I, II Chinese character library, 15×16dots |
Interface
| Parallel: 25pin Centronics, 8-bit parallel interface, BUSY/ACK handshaking protocol, TTL signal level.
Serial: DB9 (female) socket, RTS/CTS protocol, baud rate: 9600bps
USB, Ethernet. |
| Cash Drawer Control | DC24V, 1A, 6-pin RJ-11 socket |
| Power Supply | 24V/2A |
| Cutter | Without Cutter |
| Dimension | 248×160×142mm |
