76mm White Ethernet DOT Matrix Printer
| Price: |
US $ 95/Piece |
| Trade Terms: |
EXW |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Paypal,Western Union |

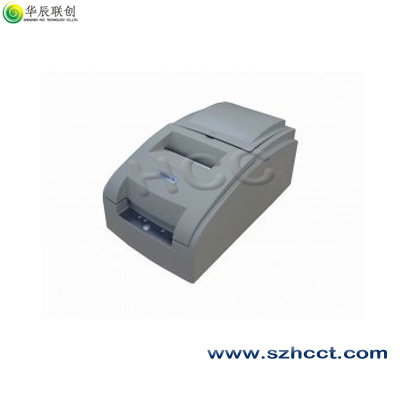

76MM White Ethernet Dot Matrix Printer-- HRP76
Feature
Printing Speed 100mm/second;
Stable Printing;
Pretty Outside Design.
|
Print Method |
9-pin serial bi-directional |
|
Print Density |
200 dots (whole dots) / 400 dots (half dots) |
|
Print Speed |
4.4 lines/sec |
|
Reliability |
5 million lines (MCBF) |
|
Feed Speed |
100mm/sec |
|
Roll Model |
high quality common white paper or impact paper roll |
|
Width |
76.0 ± 0.5mm |
|
OD |
75mm (max.) |
|
ID |
75mm (max.) |
|
Thickness of Per Layer |
0.06-0.085mm, total thickness ≤0.2mm |
|
Ribbon |
Ribbon Cassette ERC –39 purple or black |
Black Mark check
|
Black mark printed on the right of the front of note, its length 5mm, width 12mm (min); the reflection rate of black mark part: ≤10%, other part: >75%. |
|
Print Font |
ASCII character set II, 5×7dots and 7×7dots
GB level I, II Chinese character library, 15×16dots |
Interface
|
Parallel: 25pin Centronics, 8-bit parallel interface, BUSY/ACK handshaking protocol, TTL signal level.
Serial: DB9 (female) socket, RTS/CTS protocol, baud rate: 9600bps
USB, Ethernet. |
|
Cash Drawer Control |
DC24V, 1A, 6-pin RJ-11 socket |
|
Power Supply |
24V/2A |
|
Cutter |
Without Cutter |
|
Dimension |
248×160×142mm |
| Prod Model: |
HRP76 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Print Method: |
9-Pin Serial Bi-Directional |
| Print Density: |
200 Dots (Whole Dots) / 400 Dots (Half Dots) |
| Print Speed: |
4.4 Lines/Sec |
| Reliability: |
5 Million Lines (Mcbf) |
| Feed Speed: |
100mm/Sec High Quality Common White Paper or Impac |
