Price: | Negotiable/Piece |
---|---|
Trade Terms: | FOB,CFR,CIF |
Min Order: | 10/Piece |
Pay Type: | L/C,T/T,Paypal |
2Choose best spare parts from supplier.

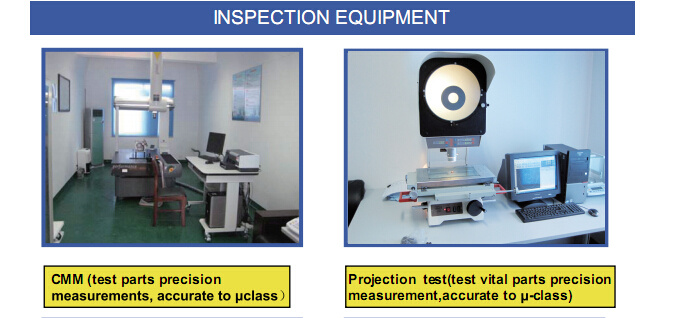

3Check the spare parts according to TS 16949.
4Clean the spare parts before assembling.

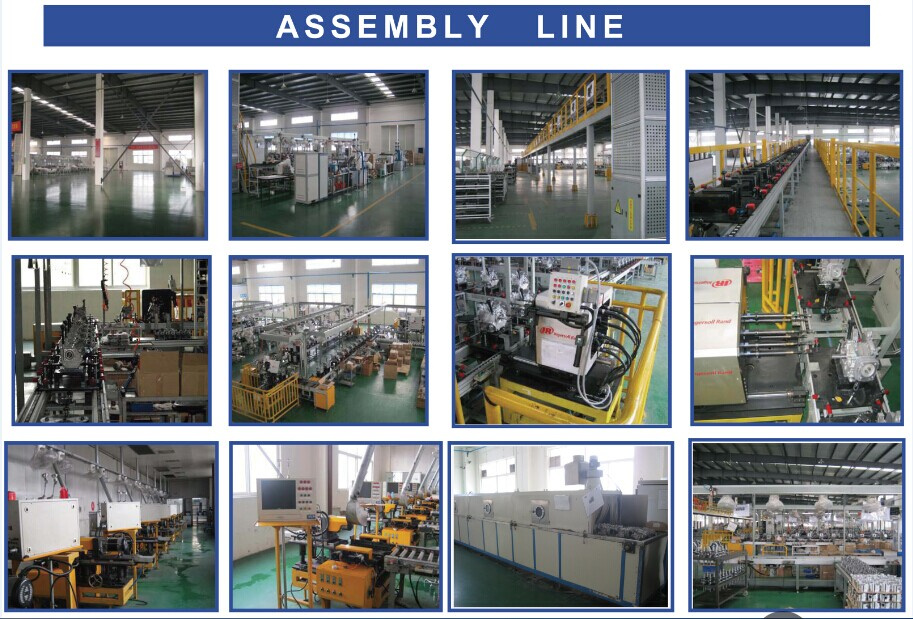

5 Advanced assembly line includes robot, SPC and etc.
6100% testing.
7Packing.
Data for Hot Sale Diesel Engine | ||||||||||
Model & HP | TD170F(4HP) | TD178F(7HP) | TD186F(9HP) | TD186FA(10HP) | TD188F(12HP) | |||||
Diesel engine type | Single cylinder, vertical, 4-stroke, air cooled, direct injection | |||||||||
Bore×Stroke | 70×55mm | 78×62mm | 86×70mm | 86×72mm | 88×75mm | |||||
Displacement | 211cc | 296cc | 406cc | 418cc | 456cc | |||||
Speed | 3000rpm | 3600rpm | 3000rpm | 3600rpm | 3000rpm | 3600rpm | 3000rpm | 3600rpm | 3000rpm | 3600rpm |
Rated power | 2.5kW | 2.8kW | 3.7kW | 4.0kW | 5.7kW | 6.3kW | 6.0kW | 6.7kW | 7.0kW | 8.0kW |
Rated HP | 3.4HP | 3.8HP | 5.0HP | 5.5HP | 7.7HP | 8.5HP | 8.1HP | 9.1HP | 9.5HP | 10.8HP |
Fuel consumption(g/kw.h) | 280 | 288 | 276 | 285 | 275 | 281 | 274 | 280 | 273 | 279 |
Fuel tank capacity | 2.5L | 3.5L | 5.5L | 5.5L | 5.5L | |||||
Lube oil capacity | 0.75L | 1.1L | 1.65L | 1.65L | 1.65L | |||||
Fuel | Diesel | |||||||||
Lube | SAE10W30(above CC grade) | |||||||||
N.W./G.W. | 28/30kg | 33/35kg | 52/54kg | 52/54kg | 52/54kg | |||||
Dimension | 420x380x470mm | 480x460x520mm | 500x475x555mm | 500x475x555mm | 500x475x555mm | |||||
Rotation direction | Anticlockwise(view from flywheel) | |||||||||
Optional | PTO shaft, electric starter, air cleaner |

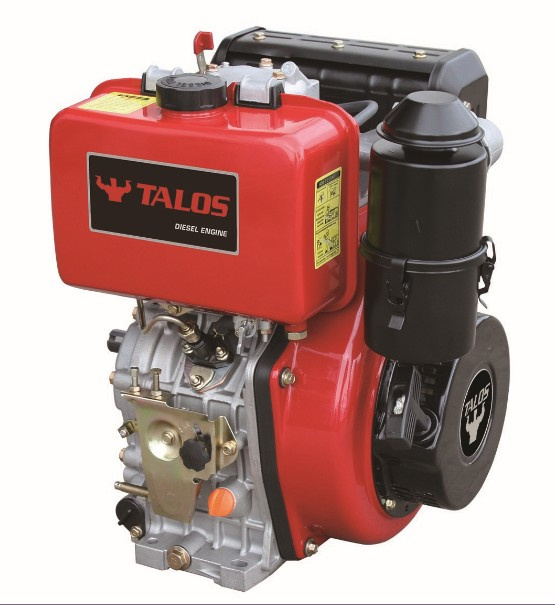

Prod Model: | TD178F |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Model & HP: | Td178f(7HP) |
Type: | Air-Cooled, 4-Stroke, Diesel Motor |
Borexstroke: | 78X62mm |
Rated Output: | 4.0kw(5.5HP) / 3600rpm |
Displacement: | 296cc |
Starting System: | Recoil Start |
Fuel Tank Capacity: | 3.5L |
Dimension: | 480X460X520mm |
N.W./G.W.: | 33/35kg |
Certificate: | CE |
Fuel: | Diesel Engine |
Speed: | 3000/3600rpm |
Number Of Cylinders: | Single |
Cylinder Arrangement Form: | Over Head |
