Product Specifications
| Prod Model: |
FS-LM3006 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product: |

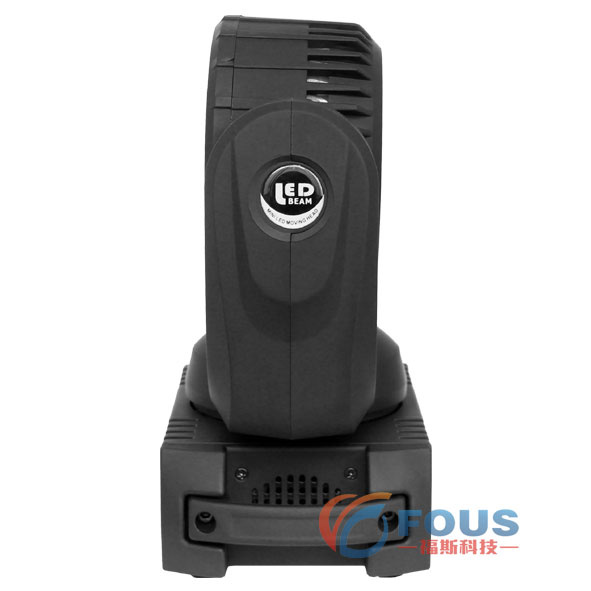

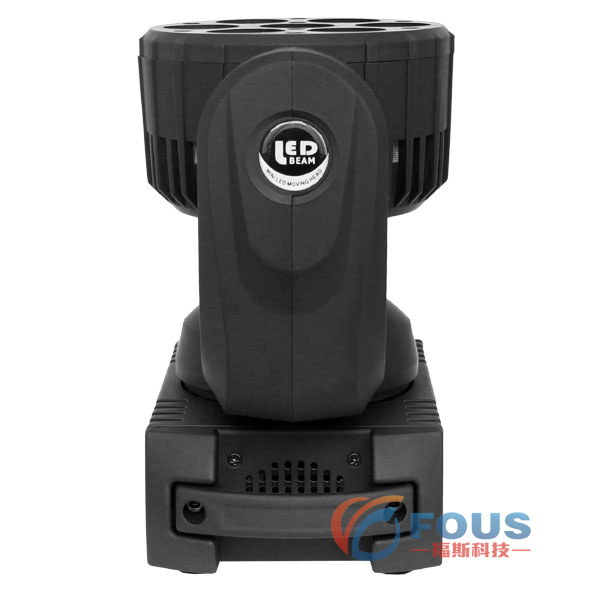

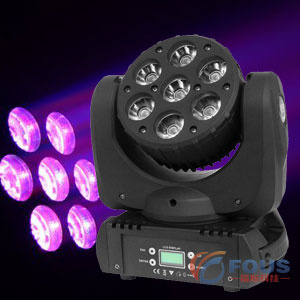

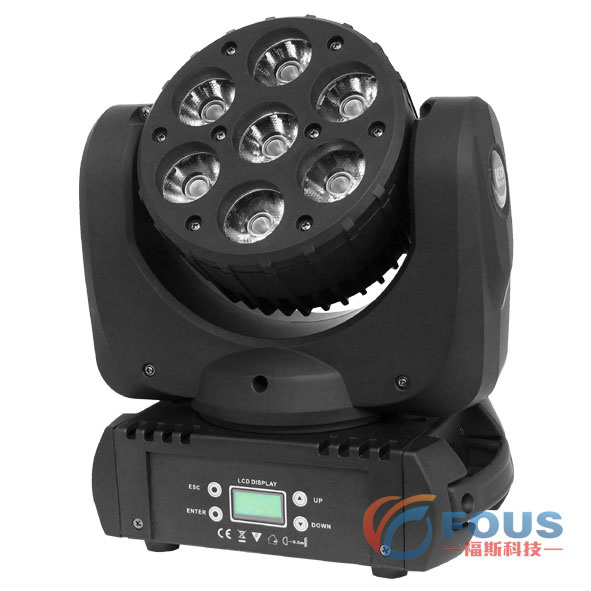

7 12W Osram RGBW 4 in 1 LED Beam Moving |
| IP Rating: |
IP20 |
| Strobe: |
Electronic Strobe |
| Certification: |
CE |
| Light Source: |
LED |
| Control Channel: |
15 |
| Voltage: |
110-250 |
Product Description
We are professional manufacturing LED Stage Lighting, LED Beam Moving Head Light, LED Moving Head, 200W 5R Beam, Stage Laser Light, LED Par...
TECHNICAL INFO
Power supply: AC110V-250V
Frequency: 50-60Hz
Power consumption: 120W
Drive Current: 1400mA
Lux: 2m @ 40500+
Light source: 7 PCS RGBW 4 in 1 12w osram leds
Lamp life: 6-10 ten thousand hrs
Lens angle: 8 degree
Color: RGBW unlimited color mixing system, the beam is very bright and the color is well-distributed.
Pan movement: 540 degrees
Tilt movement: 270 degrees
Pan/Tilt resolution: 8-16 bit
Dimmer: 0-100% electronic dimmer
Strobe: 0-20 times / sec, adjustable
Control channels: 15CH
Control mode: DMX512, master/slave, auto, Custom
Cooling: Fan intelligent control
Operation Temperature: -20° C ~45° C
Operation menu: LCD screen display
Packing size: 530x340x360mm ( 2 pcs in 1 carton )
N. W: 4.7kg
G. W: 6kg
|
Chanel |
Function |
Values |
Description |
|
1 |
Pan |
0-255 |
PAN Movement |
|
2 |
Pan Fine |
0-255 |
Fine control of Pan movement |
|
3 |
Tilt |
0-255 |
Tilt Movement |
|
4 |
Tilt Fine |
0-255 |
Fine control of Tilt movement |
|
5 |
Dimmer |
0-255 |
0-100% Linear dimmer from dark to bright |
|
6 |
Strobe |
0-255 |
Strobe effect from slow to fast |
|
7 |
Red |
0-255 |
0-100% red dimmer from dark to bright |
|
8 |
Green |
0-255 |
0-100% green dimmer from dark to bright |
|
9 |
Blue |
0-255 |
0-100% blue dimmer from dark to bright |
|
10 |
White |
0-255 |
0-100% white dimmer from dark to bright |
|
11 |
Colors |
0-255 |
Colors changing effect |
|
12 |
Macros |
0-010 |
CH1-CH11 activated |
|
011-120 |
Colors jumping |
|
121-180 |
Colors fading |
|
181-244 |
Colors mixing |
|
245-255 |
Sound control |
|
13 |
Speed |
0-255 |
Speed of macros |
|
14 |
Speed |
0-255 |
Speed control of PAN/TILT (fast to slow) |
|
15 |
Reset |
0-244 |
CH1-CH14 activated |
|
245-255 |
Reset after 3 seconds |
