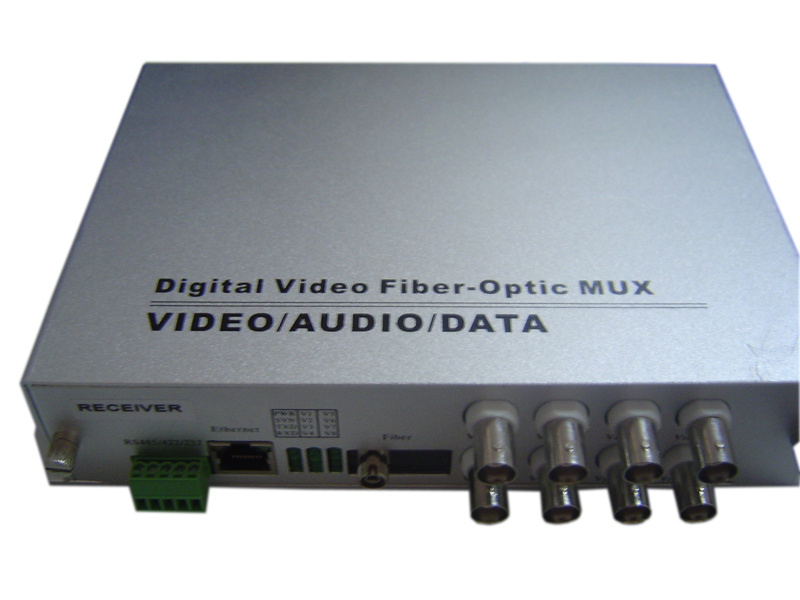

8 Channel Video + Data + Ethernet Series
The 8 Channel Video + Data + Ethernet Series products adopt the most advanced international technology of digital video and optical fiber transmission, performing synchronous, undistorted, uncompressed and high quality signal transmission over all kinds of optical fiber.
This Fiber Optical Transmitter & Receiver can be easily used in the normal operation by virtue of LED indication of working status, and without any electric or optical regulation on site. It can be installed independently or installed in 2U/4U rack.
Features
Card-type or Stand-alone type for your choice; Suitable for concentration management in 4U Racks
10 digit coding and non-compression video transmission
Supporting any high resolution video signal
Automatically compatible with PAL, NTSC and SECAM video format
Supporting video intact regenerative relay, the video transmission can be reach above200km
Supporting advanced SNMP standards, realise long-distance web-controlling
LED indication of power and other parameter status, monitoring real-time operation
Modularized and industrialized design ensuring reliability and flexibility
Target Industries
Intelligent transportation supervisory system(ITS)
High-speed Way supervisory/Tele-Communication System
Security protection system, TV medical treatment
Long-distance Muti-media Schooling, Campus monitoring
Long-distance broadcast television transmission system
High-building Security Protection, Military Tele-COM projects
Fiber Features: ( the fiber optic connectors usually is FC, can order ST)
Typewavelength
(nm)TX power dBmTransmission Distance KmLose dBm/KmFiber Type
Multi-mode850, 1310-19.5~-160~0.51850/1310nm(Multi-mode)
Single-mode1310-8~-50~200.5Single-mode(9/125um)
1310-6~-30~400.5Single-mode (9/125um)
1550 DFB-3~-10~600.25Single-mode (9/125um)
1550DFB0~+30~1000.25Single-mode (9/125um)
Data Features
Applications: Supporting multi-channel data, compatible with all kinds of Keyboard, Matrix agreements, DVR, alarm data industrial application transmission
Interface: Standard industrial connecting terminals
Controlling Equipments: PTZ decoder, Keyboard, data interface of Matrix, High speed dome camera, industrial equipments
Interface Signals: RS-485(2 lines), RS232, RS422 and so on
Communication speed rate: 0~512Kbps ( speed autoadaptation, no need to adjust)
Alarm Features
Interface: Standard industrial connecting terminals ( Alarm, Switch, Remote control )
Alarm/switch input signals: Any active or passive alarm/switch input, supporting TTL, RS-232/422/485 and passive switch
Alarm/switch output signals: Any active or passive alarm/switch output, supporting TTL, RS-232/422/485 and passive switch
Current: Low current, High-current and high-voltage can use above 1A/12V
Ethernet Features
Interface Speed Rate: 10/100Mbit/s Auto-adaptation, the default is 100Mbps working condition
Interface Type: RJ-45
Supporting Agreements: IEEE802.3U 100Base-TX, 10/100M
Communication Working format: Full-duplex or half-duplex
