8 Channle Video Multiplexer Over Fiber (RB-VM08)

Product Specifications

Prod Model:	RB-VM08
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Distance:	up to 100km
Optical Port:	Sc/St/Fc
Rack:	Mini Rack or 19 Inch Rack
Warranty:	1 Year After Shipment
Channel:	8 Video + 1 Audio
Type:	Wired
Usage:	Telecommunication, Broadcast, CATV and Network
Support Network:	Video Multiplexer Over Fiber

Product Description

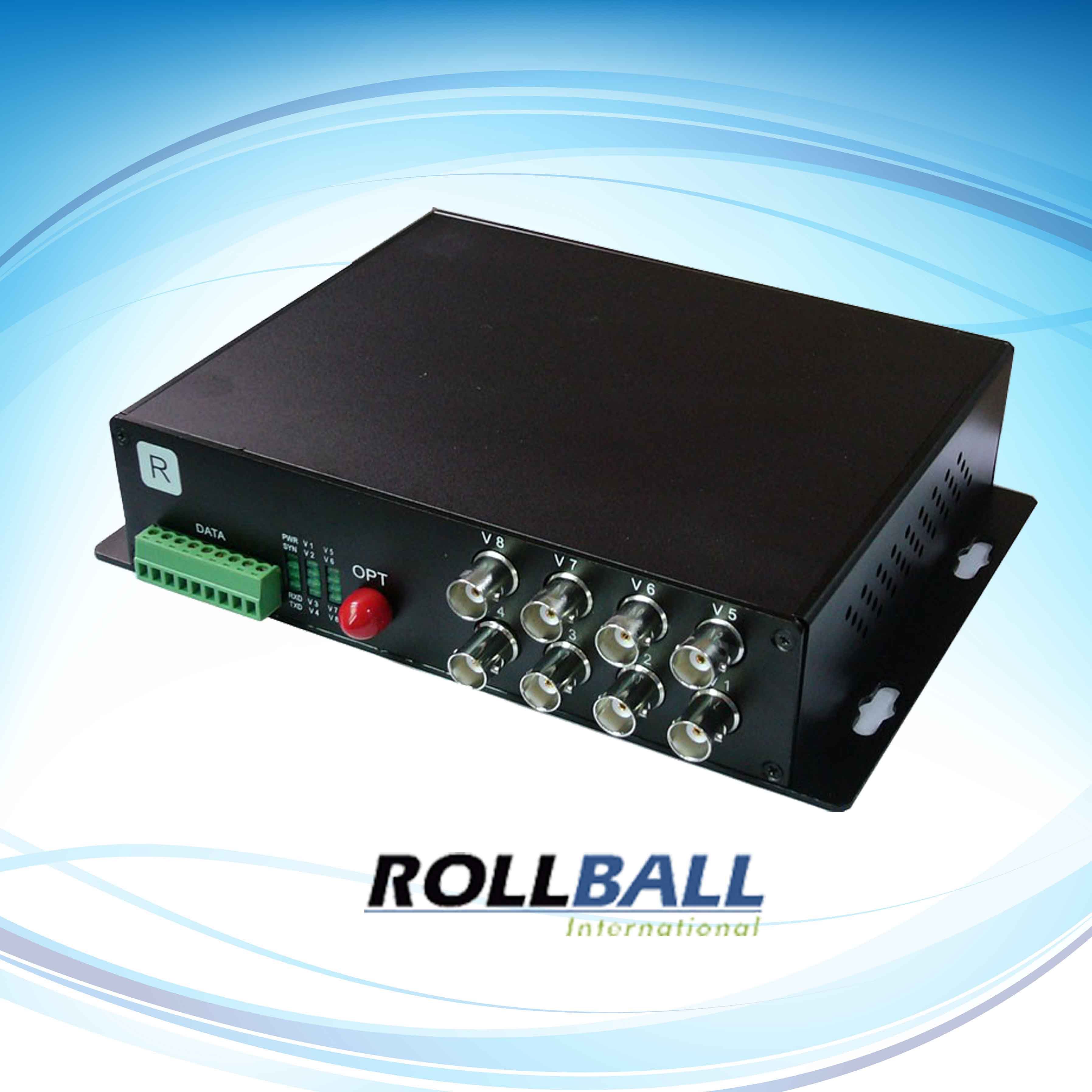

8 Video multiplexer over fiber(RB-VM08) - 8 video + 1 audio channels, Serial and ethernet port is optional, Up to 100km transmission, 19 inch rack installation, One year warranty after shipment, Self-adapt in PAL, NTSC, SECAM standards.

RB-VM08 series unit can transmit 8 lines bidirectional digital video broadcasting, 1-2 lines bidirectional high-fidelity audio, 1-4 line bidirectional asynchronous data, 1 lines 10/100M adapt Ethernet data to one fiber efficiently.
Application:
1. Intelligent transportation system;
2. High speed way video monitoring and control system;
3. Toll monitoring and control system;
4. Close circuit TV industry monitoring and control;
5. TV program switching channel transmit;
6. High-fidelity video conference system;
7. Security monitoring and control system;

Feature:
1. Completely digital fiber transmit platform;
2. No need to configuration or any adjusting during the instalation, user friendly design;
3. Based on self copyright IC;
4. No interference between analog in adjusting channel, picture and range;
5. 4 steps filtering;
6. Completely digital, broadcast transmition efficiently managed by specific IC;
7. High speed 10/100M Ethernet channel;
8. Full speed asynchronous date channel;
9. Flexible configuration on the same platform;
10. Power supply, link, video by dynamic indication;
11. Self-adapt in PAL, NTSC, SECAM standards;
12. ASIC based design;
13. Transmit distance: Up to 100KM
14. Power supply: 220V, -48V, +24, +12V, +5(optional), any specific on reuqest;
15. SNMP management;
16. Three installation types: Wall method, rack in 19inches 1U, or plug in-card.

Technical Specification:
Video interface:
Input/output impedance: BNC 75 ohm unbalance interface
Input/output voltage: Peak 1 vpp, max 1.5 Vpp
Signal: PAL/NTSC/SECAM
Video bandwidth: 8MHz
Video number wide: 8/10/12 bit
Differential gain: < 1%
Differential phase: < 0.6°
Slope: < 0.5%
Luminance delay inequality: 10ns
Luminance gain gap: ± 10%
Weighted noise ratio: 66dB

Date interface (can support 1~4 line asynchronous date RB-232/485/422)

Physical interface: Industry standard terminal lead
Full duplex/half duplex
Interface type: RB-232/485/422 Manchester
RB232 rate 0-115.2Kbps
RB-422/485 rate: 0-115.2Kbps
RB-422/485 transmit distance: 0-1200m
RB-422/485 agreement support RB-485/422 agreement
Error rate: < 10-9
Fiber interface
Physical interface: FC/PC/ST/PC
Fiber type: Single/multi mode
Transmit distance: Multi mode up to 2 km, single mode up to 100 km, WDM available

Audio interface: Supports 1 line optional and bidirectional audio

Audio input/output: Impedance 600 balance/unbalance interface industry standard terminal lead.
Audio input/output level: 2Vp-p
Frequency response: 10 Hz-20 kHz
Audio channel width: 24 bit
Weighted noise ratio: 80dB
Total Harmonic Distortion: 0.1%

Ethernet interface
Physical interface: Shielding RJ-45
Support IEEE 802.3/802.3u/802.1q VLAN
IEEE 802.3x full duplex and Back-Pressure half duplex flow control.

Working environment

Work temperature: -30~+75
Storage temperature -45~+85
Humidity: 0-95% without condensation
Input voltage: 220V-48V, +24V+12, +5V optional
Power 5W (single terminal)
Size: 482.6X 260X 25.4mm
