8 Core Shielded Twisted Pair Copper Cat5e Telecommunication Cables

Product Specifications

Prod Model:	XXD-13PE24
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Item Name:	Twisted Pair Copper Cat5e Telecommunication Cables
Catagory:	Cat5e
Conductor:	Oxygen-Free Copper/Bare Copper/CCA/CCS
No. Of Conductor:	8
Insulation:	HDPE
Jacket:	PVC
Color Of Jacket:	White,Grey,Black,Blue,Red,Optional
Length:	0.5m,1m,2m,3m,5m,10m...
Delievry Time:	15days
Payment:	T/T,Paypal,Western Union...
Application:	Long Distance Symmetric Cable
Conductor Material:	Copper
Cover Material:	PVC
Certification:	RoHS
Type:	Cat5e

Product Description

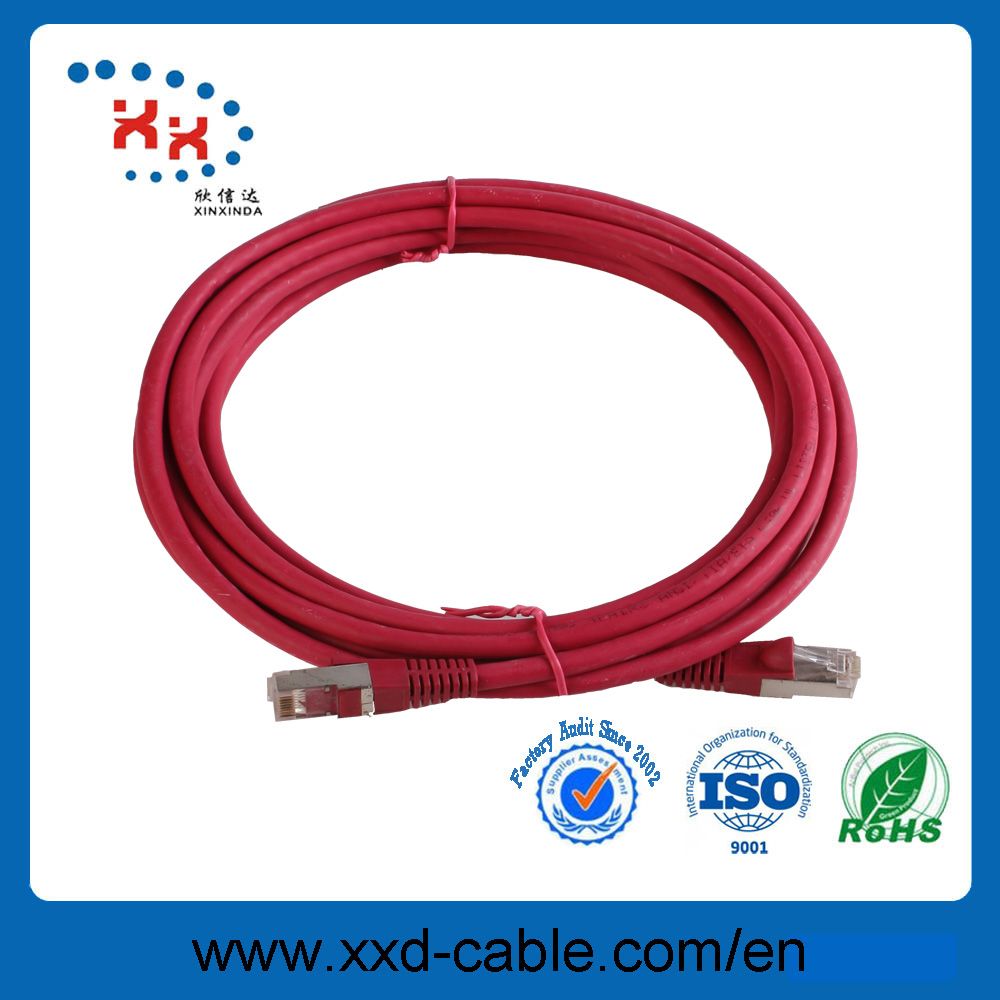

8 core Shielded Twisted Pair copper Cat5e telecommunication cables



Main Description


RJ45 Cat5e Ethernet Patch Cable connects computers to network components in a wired Local Area Network (LAN). Intended for use in the home or office, this Cat5e Patch Cable meets more stringent standards than conventional Category 5 cables and is capable of transmitting data at speeds of up to 1000 Mbps (or to 1 Gigabit per second). Includes gold-plated connectors for high-quality, corrosion-free connectivity, and male RJ45 connectors for compatibility with network components including computers, printers, routers, and switch boxes.

Description

1. Specification: 4P
2. Rated Temperature: -45 ° C - 75° C
3. Unshielded twisted pairs: 4pairs
4. Conductor: 26AWG or 24AWG Stranded Bare copper
5. Insulation: HDPE
6. Jacket: PVC or LSZH
7. Impedance: 100± 15%Ω At 1~100MHz
8. Reference standard: YD/T1019-2001, ISO/IEC11801, ANSI/TIA/EIA-568B,
9. Print Legend: CM or CMR


Feature
Narrow Boot/Strain Relief
1, Supports high density installations
2, Cord fits into narrow jack locations
3, Uniform appearance between the Cat. 6 and Cat. 5e patch cords
High Performance
1, Maintains channel performance
2, Strong component performance
3, Exceeds cordage requirements of TIA/EIA 568B and ISO/IEC 118801


Technical parameters:
1)Tranmission frequency: 100-350MHZ
2)Transmission speed: 100-1000mbps
3)Transmission range: 100-250m
4)Compliance: ETL verified ANSI TIA/EIA568-2, UL Subject 444. (UL) c(UL) type CMR/CMG. Type CM/CMH. Type CM/CMH, NEC Srticle 800 Type CMP or CM. ISO/IEC 11801. ROHS Compliant.
5)Application: 100 Base-TX, 100VG-AnyLAN, 1000Base-T, ATM, Noisy Environment
6)Electrical characteristics:
*Impedance: 100 ± 15Ω
*Static electric capacity: 17.1nf/kF (maximum)
*Resistance: 28.6/kF (maximum)
*Unbalance resistance: 5% (maximum)
*Unbalance capacity: 330pF/100m (maximum)
*Communicate rate: 65%

Application:
VoIP
ISDN
Token
100M TP-PDM
Analog and Data Video
TR-16 Active and Passive
155M/622M/1.2GATM
IEEE 802.3: 10Base-T; 100Base-T; 1000Base-T; 10GBase-T

Description:
Rated temperature: 60° C, 75° C, 90° C
Solid bare copper conductor
PVC/LSZH jacket, RoHS/REACH compliant
Comply to TIA/EIA-568-C. 2-10, IEC61156-5,
EN50173&IEC11801
Operating temperature: -30~+50° C
Minimum bending radius: 8D
