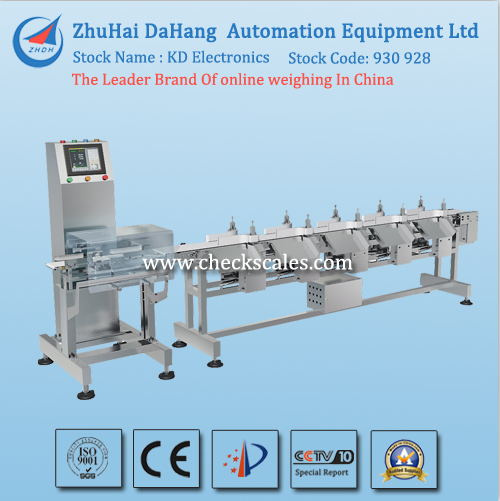

Product Specifications
| Prod Model: |
DWS-8 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Eastern Asia,Western Europe |
| Operation Panel: |
8 Inch Touch Screen |
| Condition: |
New |
| Frame: |
SUS 304 ,Polishing |
| After Sale Service: |
Engineers Available to Service Machines Oversea |
| Application: |
Food, Machinery & Hardware |
| Voltage: |
220V |
Product Description
Parameters:
| Weighing Range | 10g~1500g |
| Accuracy | ±2g |
| Grade | 8 kinds |
| Sorting Speed | 12 / min |
| Conveyor Belt Speed | up to 100 m/min |
| Product Size | Custom-tailor |
| Loadcell | Double Beam Load cell |
| Belt Size | Custom-tailor |
| Power | AC100V ~ 120V , AC200V ~ 240V |
Featurers:
* Strong stainless steel structure; Water proof design
* High Accurate load cell; Based on advanced DSP Technology
* Zero-Tracking: Automatic Aero-Tracking
* Operation Panel: 8 Inch Touch screen
* Product Storage: 40 product preset
* Language: English
* Rejector System: Pusher, Flipper, Air Jet, Drop Down available for choice
Construction:
-- Standard: IP30 (International standard)
-- Waterproof: IP65 (International standard)
* Weighing accuracy and speed depend on product shape and other conditions
* Customerized size and weighing capacity be accepted
After-sale Service:
one year warranty, life-long maintenance. With engineers serving overseas available.
Packing & Shipping
Wooden case, 22 working days delivery
Trader:
MOQ: 1set
Trade Terms: FOB, CIF, EXW
Payment Terms: T/T, 60% in advance, 40% balance before shipping
Delivery Time: Within 22~25 workdays since payment receipt
Packing: Plastic film and wooden case
Shipping: By sea delivery (Small Size by air is acceptable )
ZhuHai DaHang was established in 2005. In 2014 the company name changed to ZhuHai DaHang Automation Equipment Co., Ltd with 10 million RMB registered capital, it is a branch of Zhuhai KangDing Electronics Co., Ltd which is a listed company (Stock Name: K. D Electronics, Stock Code: 830928).
Zhuhai Dahang is an integrated high-tech enterprise which includes research and development, production, sales and service in the industry of weight sorting, check weight, non-standard automatic technology and equipment with 10 year industry experience.
Core Competitivenes:
1. Leader brand in industry, occupied 80% of Chinese marketing
Dahang equipment widely be used many fields and were validated by many leading enterprises, Dahang have the largest and most stable customers resource in China, market share and excellent rate were the first one in industry, Dahang occupied 80% of Chinese marketing
2. The biggest professional research center and production base
Zhuhai Dahang have the strongest team of technology research and development in domestic, including the general engineer Mr. Yangcheng who is the leader of online weighing industry reported by CCTV10. Dahang is SGS supplier passed the SGS authentication, existing plant area of 3000 square meters.
3. Technology leading in industry, The first one of several technical indicators in domestic
Zhuhai Dahang Self-help develop unique dynamic weighing control system with high stability andpracticability. The weighing sorting accuracy can reach ± 0.05g, sorting speed can reach 200 times/min, the top sorting rank can reach 16 levels, the technical indicators always keep the first position in domestic industry.
4. Inventing patents
Zhuhai Dahang got 9 Technology Licensing Patents and 4 Computer Software Copyrights. Dahang invented
Seafood Weight Sorting Machine and Rotating Disc Weight Sorting Machine. Dahang is the inventor of weigh
Sorting company special reported by CCTV10 scientific channel.
5. Strong Scientific research support, cooperate with 3 high universities
Zhuhai Dahang cooperated with 3 Chinese high universities to sure strong research support, including Jilin University of Electric design and research Institute, Beijing University of Aeronautics and Astronautics of Mechanical Engineering and Automation Institute, Zhangjiajie Aeronautical Engineering Institute of Aviation electrical and information engineering department.
