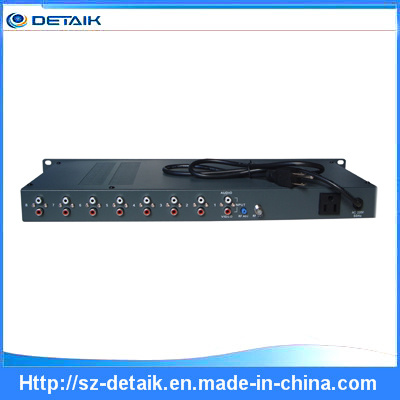

1. 8 Audio / Video input, one RF output from 47-550 MHz or 470-860 MHz.
2. Intermediate frequency, twice conversion frequency and with saw filters.
3. MCU technique, audio intermediate frequency, video high frequency RF.
4. Integrated circuit is applied to outputs, theeach functional circuit of SMT.
5. LED displays frequency, using up and down buttons to select channels.
6. Convenient controls, all frequency level adjustment is on the front panel.
7. Offer different CATV system standard according to the customers' needs.
|
Reflection |
Output frequency range |
47-550 MHz or 470-860 MHz |
|
Frequency accuracy |
± 5kHz |
|
Output level |
95dBμ V |
|
Out band suppression |
- 60dBc |
|
Output impedance |
75 Ω |
|
Input reflection |
12dB min |
Video
Frequency |
Video to audio carrier ratio |
18 ± 2 dB |
|
Input level |
0.6 ~ 1.5Vp-p |
|
Input impedance |
75Ω |
|
Input reflection |
30dB min |
|
Video s/n |
60dB |
|
C/L delay |
45nsec |
|
Frequency response |
± 1dB |
|
Differential gain |
± 5 % ( modulator 87.5 %) |
|
Differential phase |
± 5 ° (modulator 87.5 %) |
Audio
Frequency |
Input level |
-10 ~ 10 dBm |
|
Input impedance |
10KΩ min. |
|
Frequency response |
± 1dB |
|
Distortion |
1 % |
|
Signal to noise ratio |
-60dB |
|
Audio video difference |
According to CATV System |
|
Efficiency |
Power supply voltage |
90 ~ 265V |
