Product Specifications
| Prod Model: |
SN*10801 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| 0.8 Inches: |
Dual Digits |
| Manufacturing Technology: |
Optoelectronic Semiconductor |
| Material: |
Element Semiconductor |
| Type: |
P-type Semiconductor |
| Package: |
DIP(',Dual In-line Package) |
Product Description

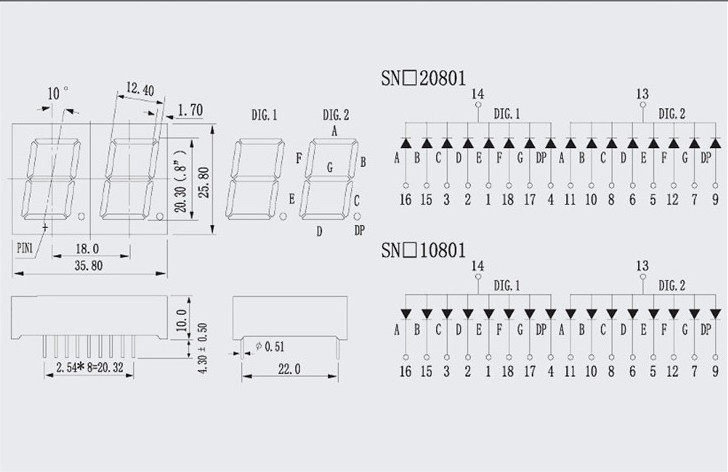

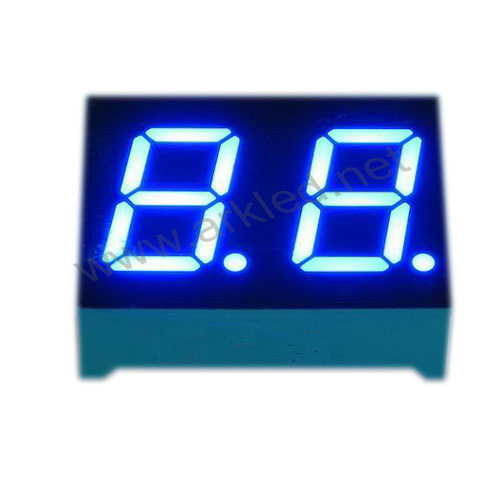

Part No: SN2/1081
Features
0.8 inch digit height.
Low current operation.
High contrast and light output.
Stackable horizontally.
Column cathode and column anode available.
Easy mounting on P. C. Boards or sockets.
Multicolor available.
Available emitted color: Red, green, blue, orange, yellow, white or dual-color
Mechanically rugged.
Standard: Black face, white segment.
Other available face color: Grey
RoHS compliant.
|
Emitting Color |
CA Part No |
CC Part No |
|
Super Red |
SN410801K |
SN420801K |
|
Ultra Red |
SN410801N |
SN420801N |
|
Ultra Yellow |
SN510801Y |
SNY20801Y |
|
Green |
SN2108019 |
SN2208019 |
|
Ultra Green |
SN2108015 |
SN2208015 |
|
Pure Green |
SN810801G |
SN820801G |
|
Ultra Blue |
SN610801B |
SN620801B |
|
Ultra White |
SN710801W |
SN720801W |
