Product Specifications
| Prod Model: |
CKL-9138H |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

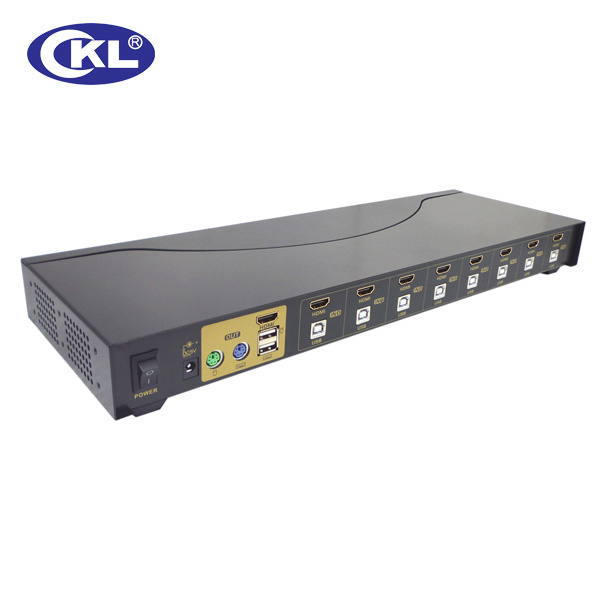

8/16Port HDMI KVM Switch
Features
One USB or PS/2 console controls 8/16 HDMI-interface computers
Switch Mode: A. Button push b. Keyboard Hot-Key switch
HDMI digital monitor support - fully compliant with HDMI 1.4a; Also HDCP compliant
Superior video quality - supports 480i, 480p, 720p, 1080i, and 1080p(HDTV)/1920 x 1200(DVI)
Support Hot plug & play
Supports widescreen resolutions
OS support - Windows, Linux, and Mac
Auto Scan Mode for monitoring all computers and HDMI devices
Specification
Computer Connections
8/16
Port Selection
Front Panel Pushbuttons; Hotkeys
Connectors
Console Ports
Keyboard
1× USB Type A Female
Video
1× HDMI Type A Female
Mouse
1× USB Type A Female
KVM Ports
Keyboard / Mouse
2 USB Type B Female
Video
8/16 HDMI Type A Female
Power
1× DC Jack
Switches
Selected
Push button
Emulation
Keyboard/Mouse
USB
Video
1080p (HDTV) / 1920× 1200 (DVI)
Scan Interval
10 seconds.
Power Consumption
DC 5V
Environment
Operating Temp.
0-50
Storage Temp.
-20-60
Humidity
0-80% RH, Non-condensing
Physical Properties
Housing
Metal, Plastic
Weight
3kg
Dimensions (L x W x H)
440× 150× 42mm
Switching Operation Instructions
1. MANUAL( push button)
Simply press the appropriate port selection switch on the front panel. After you press the switch, the select LED lighting indicate that the port is current selected.
HOT KEY
Hot Key allows you to conveniently to access connected PCs directly from the keyboard, instead of having to manually select them by pressing port selection switches. To select a port with the hot key method, do the following:
[Scroll Lock] + [Scroll Lock]+ 1/2/3/4/5/6/7/8 +[Enter]
Auto Scan function: [Scroll Lock] + [Scroll Lock]+S+[Enter]
