Product Specifications
| Prod Model: |
LPH03 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power Range: |
250W |
| Voltage Range: |
36V |
| Over Lock Dimension: |
135mm |
| Effiency: |
80% |
| Rated Speed: |
225rpm |
| Current: |
5A |
| Torque: |
18n.M |
| Weight: |
2.8kg |
| Drvie: |
Rear Wheel Drive |
| Running Distance: |
45-60KM |
| Motor: |
Brushless |
| Max Speed: |
20-40km/h |
| Battery Type: |
Lithium-Ion Battery |
| Frame Material: |
Aluminum/Alloy |
| Voltage Of Battery: |
36V |
| Power: |
200-250W |
| Certification: |
ISO |
| Maximum Loading Capacity: |
≥120kg |
| Wheel Hub: |
Alloy Hubs |
| Wheel Size: |
26" |
| Folded: |
Unfolded |
| Charging Time: |
<6h |
| Part: |
Motor |
| Brake: |
V Type Brake/Disc Brake |
Product Description

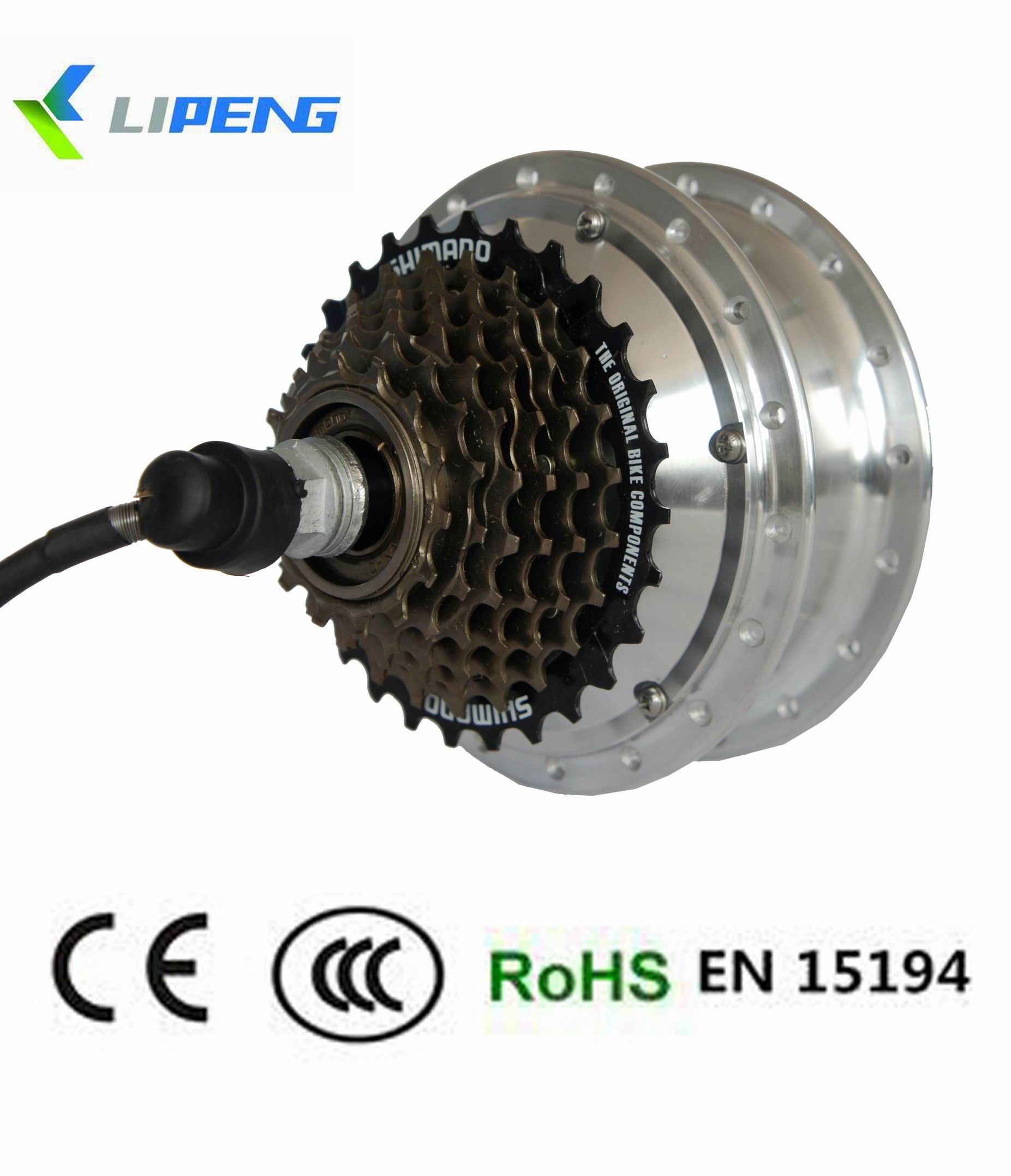

Our Advantage of electric hub motor:
1. Size, RPM, Torque and Over Lock Dimension can be customized
2. High performance in water proof
3.2 years warranty except destructible test and artifically damage
4. Cpmpetitive Price because we're factory
Application:
Electric bicycle/ DIY bicycle kit/Rear wheel drive
Design Drawing
Our engineers have more than 10years design experiences
We can offer OEM/ODM servies
LP is a electric bike kit supplier in China, and have been in this field for few years. We can supply you:
1. Competitve price. We are factory.
2. In time delivery. We can manufacture about 1000pcs hub motor per day.
3. High Quality. We have strict quality control, passed ISO9001.
4. Reliable Service. We have our own after-sales department
Certification EN15194:
Service:
The minimum order quantities with one set as testing sample. It will be delivered by TNT, DHL OR FEDEX express.
We offer two years warranty for the motor, the other accessories will be one year. If there is any problem for the system during the period of warranty, please send the detail description and photos for our judge in order that we can send the replacement or refund to you.
Rated Power(W): |
250 |
| Rated Voltage(V) | 36 |
| Max Speed(rpm): | 370 |
| Rated Efficiency (%) | ≥78% |
| 2P: | 20 |
| Weight(kg): | 2.8 |
| Over Lock Dimension(mm): | 135 |
| Drive and freewheel type: | Rear/6s-9s |
| Spoke Specification: | 12G/13G |
| Cable location: | Shaft center,right |
| Hall sensor: | Optional |
| Integrate speed sensor: | Optional |
| Limitied Current(A) | 0.7 |
| Brake type: | V brake |
| Surface: | Silver Anodized/Silver painted |
| Noise(db): | ≤55 |
| Salt fog test(h): | 24/96 |
| Water proof Grade: | IP54 |
| Certification: | ROHS EN15194 CE |
