Product Specifications
| Prod Model: |
WL-TX-8 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Alarm Zones: |
8 Wired Zones and 16 Wireless Zones |
| Alarm Mode: |
Auto-Dial & Siren Alarm |
| Guarantee: |
3 Years Guarantee |
| Main Material: |
Metal Case |
| Groups Of No. Can Be Dial: |
6 |
| Type: |
Security Alarm Host |
| Function: |
Non-Networked |
| Usage: |
Smoke |
| Networking Mode: |
Dial-up |
| Wiring Mode: |
Sub-Line System |
Product Description

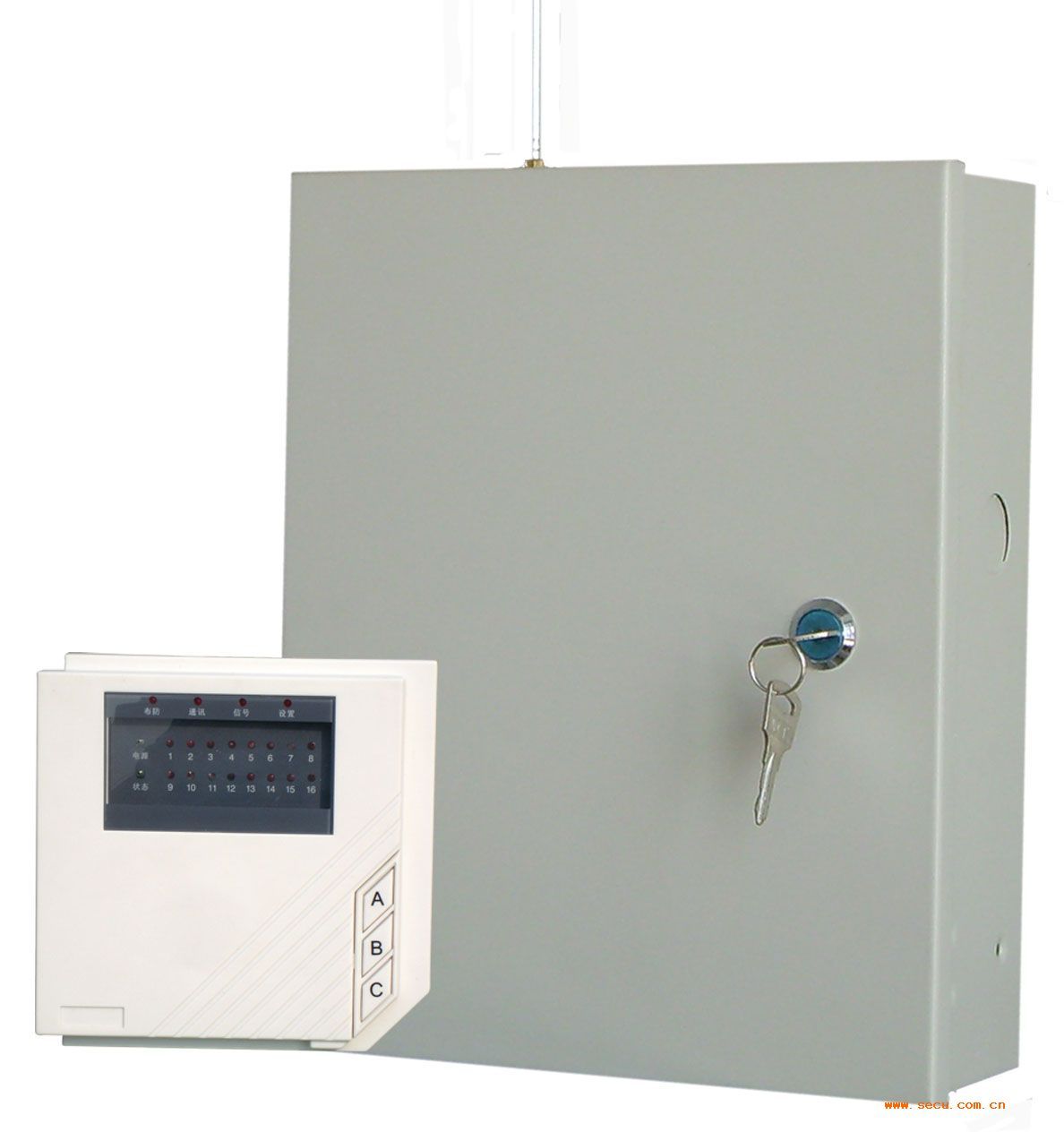

8 Wired & 16 Wireless Compatible Zones Intelligent Wired Alarm System
Feature:
1.8 wired zone control panel, auto dial function.
2. LED display
3. Support up to 4 keypads
4.9 passwords: 1 master password, 8 operation password
5. Support 6 telephone number (office telephone or mobile phone)
6.10 second's Voice Record. It will repeat your voice when it calls you if there is any alarm.
7.7 Arm Mode: Single Zone Arm, Timing Arm, Exit Arm, Peripheral Arm, Delay Arm, Remote Arm and Compulsive Arm
8.5 Disarm Mode: Single Zone Disarm, Keypad Disarm, Remote Disarm, Alarm Receive Disarm and Remote Control Disarm
9.5 Zone Type: Instant Zone, Delay Zone, 24 Hours Zone, Peripheral Zone, and Bypass Zone
10. It can be programmed by telephone and you can monitor and listen spot sound via telephone
11. It can be armed, disarmed, Emergency Armed by Remote Controller
12. Siren's Alarm time can be programmed
13. It will alarm when there is any problem in telephone line, such as telephone line disconnection or cut off
14. It will rob telephone line and call you when there is any alarm although you are using telephone.
15. Compatible with Contact ID, Ademco, 4+2 and WL.
16. It can record 50 events, and you can check its alarm, armed and disarmed status.
17. Rechargeable 12V, 7Ah battery is optional for you.
| Power supply | AC220V+10% or AC110V |
| Static current consumption | ≤100mA |
| Power | <1.5W |
| Sensor output | Above 400mA, 12V |
| Current output | DC12~15V |
| Wireless receive frequency | 315MHZ |
| Environment temperature | 40~70% |
| Humidity | >8000LUX |
| Weight | 2.5KG |
| Dimension | 255*235*70mm |
| Case material | Metal |
