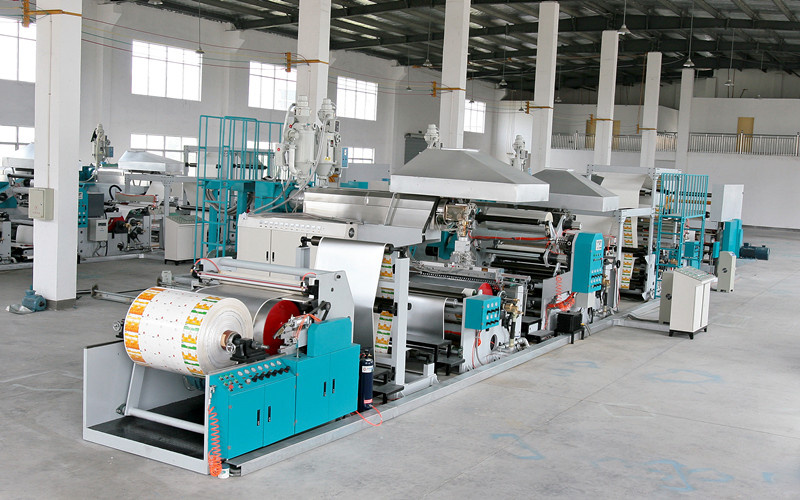

80*3/70*2-1000*3 Milk and Drink Aseptic Soft Packing Multi-Layer Compound Material Production Line (2.1.2 configuration)

80*3/70*2-1000*3 Milk and Drink Aseptic Soft Packing Multi-Layer Compound Material Production Line (2.1.2 configuration)
Supplier: Zhejiang Bori Industrial Co., Ltd.
Price: Negotiable
Min Order: 1
Quantity::
contact supplier

Product Specifications

Prod Model: BR-M Series
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type: Machine Tool&Accessories

Product Description

Main features:
Structure of product: One-off make the paper-plastic-aluminum 6-layers extrusion compound. Extrude A layer/paper base material/extrude B layer/interlayer aluminum material/extruder C and D layer. High performance, low cost, one-off compound milk and drink aseptic paper-plastic-aluminum high-obstruct packing material production line.

Extruder: 3Φ 80mm, 2Φ 70mm high-performance (Japanese technique) extruder, including 1Φ 80mm, 1Φ 70mm extruder and high-precision multi-layer co-extrusion distributor combine to the co-extrusion device.

Model head: High-precision full-seal original imported model heal (Taiwan, Italy, Japan)

Control type: High-precision Siemens PLC programmable control, HMI (Siemens) dialog, whole integrative running.

Transducer: Japanese ANCHUAN digital vector control transducer,

Tension control: Full automatic constant tension control for reeling, unreeling and every tension point.

Unreeling machine: Adopt the round-plate type unreeling structure (only one in our country) with advanced international level (Italian technique).
Reeling receiving/changing device: Adopt the automatic cutter receiving/changing device(only one in our country)with advanced international level(German technique)

Main technical parameters:
Max.extrusion output 200kg/h,120kg/h
Highest speed of machine 150m/min,260m/min
Thickness of coating film singly extrude 12-50um,co-extruder 12-60 um
Power  45kw,30kw,22kw
Error of even degree of thickness ≤±3%(international standard)
Effective width 600-1100mm
Used base material Paper(50-310g/square meter),plastic film, aluminum foil and so on
Used resin LDPE, LLDPE, PP, EVA, EAA, EMA, EMAA and other coating grade resin
Interlayer unreeling diameter maximalΦ600mm(center reel)
Reeling diameter maximalΦ1700mm(surface reel)
Unreeling diameter maximalΦ1200-Φ1500mm(center reel)
 Overall dimension  L22000mm×W9000mm×H3600mm

Zhejiang Bori Industry Co., Ltd is an enterprise which integrates research & development, design, production and sales. Adhering to the philosophy of "innovation realizes value, specialization brings up excellent brand" and combing European technology, American technology and Japanese technology into a whole. Our company has researched and developed: milk / liquid aseptic packing materials production line; high-grade digital photo paper extrusion lamination compound unit; toothpaste-tube sheet material extrusion compound unit; laminating pouch film, thermal lamination film extrusion lamination compound unit; high-barrier candy and food packing material extrusion compound unit; high-barrier medicine packing material extrusion production line; instant noodles packing material lamination compound unit, paper cups and paper tableware lamination machine, single-side lamination machine, double-side lamination machine, extrusion machine, double-layer co-extrusion machine, three-layer co-extrusion machine and other hi-tech products. With strong technical strength, reasonable prices of products and excellent after-sale service, Zhejiang Bori Industry Co., Ltd can provide high-performance extrusion compound unit, (such as plastic-plastic extrusion compound unit, paper-plastic extrusion compound unit, aluminum-plastic extrusion compound unit, paper-aluminum-plastic extrusion compound unit) for you. We warmly welcome customers at home and abroad to visit our company, and we look forward to making great achievements together with you.
