Product Specifications
Product Description

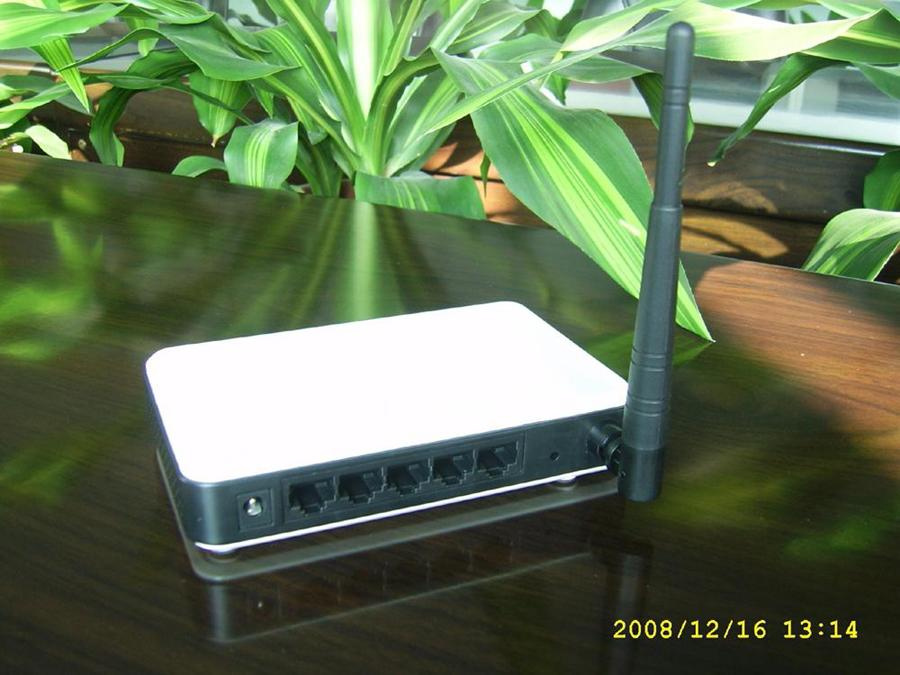

The DWR-G541A 54Mbps Wireless Router integrates firewall, NAT-router and Wireless AP. The design is dedicated to Small Office/Home Office (SOHO) Wireless network solution. The DWR-G541A 54Mbps Wireless Router will allow you to connect your network wirelessly better than ever, sharing Internet Access, files and fun, easily and securely.
With the most attentive wireless security, the DWR-G541A 54Mbps Wireless Router provides multiple protection measures. It can be set to turn off wireless network name (SSID) broadcast so that only stations that have the SSID can be connected. The Router provides wireless LAN 64/128/152-bit WEP encryption security, and WPA/WPA2 and WPA-PSK/WPA2-PSK authentication and TKIP/AES encryption security. It also supports VPN pass-through for sensitive data secure transmission.
The DWR-G541A 54Mbps Wireless Router complies with the IEEE 802.11g/b standards and adopts 2x to 3x eXtended Range WLAN transmission technology so that transmission distance is 2-3 times that of traditional 11g/b solutions, up to 855.36m tested in China. Transmission range is extended to 4-9 times. It is compatible with all IEEE 802.11g and IEEE 802.11b products.
The DWR-G541A 54Mbps Wireless Router provides flexible access control so that parents or network administrators can establish restricted access policies for children or staff. It has built-in NAT and DHCP server supporting static IP address distributing. It also supports Virtual Server and DMZ host for Port Triggering needs, as well as remote management and log so that network administrators can manage and monitor the network on real time.
| Software Specification |
| Standards | IEEE 802.11g, IEEE 802.11b |
| Wireless Signal Rates With Automatic Fallback | 11g: Up to 54Mbps(dynamic) 11b: Up to 11Mbps(dynamic) |
| Frequency Range | 2.4-2.4835GHz |
| Wireless Transmit Power (MAX) | 17dBm |
| Modulation Technology | IEEE 802.11b: DQPSK, DBPSK, DSSS, and CCK IEEE 802.11g: BPSK, QPSK, 16QAM, 64QAM, OFDM |
| Receiver Sensitivity | 54M: -68dBm@10% PER 11M: -85dBm@8% PER 6M: -88dBm@10% PER 1M: -90dBm@8% PER 256K: -105dBm@8% PER |
| Wireless Mode | AP Router Mode Bridge mode (point-to-point / point to Multi-point) |
| Wireless Range | Indoors up to 200m, Outdoors up to 830m |
| Wireless Security | SSID Enable/Disable MAC Address Filter 64/128/152-bit WEP Encryption WPA/WPA2/WPA-PSK/WPA2-PSK (AES/TKIP) Encryption |
| Hardware Specification |
| Interface | 4 10/100M LAN Ports(RJ45) 1 10/100M WAN Port(RJ45) |
| Antenna | 3dBi Detachable Omni Directional Antenna (Reverse SMA Connector) |
| Power Supply Unit | Input: Localized to Country of Sale Output: 9VAC / 0.8A Linear PSU |
| Operating Temperature | 0°C~40°C |
| Storage Temperature | -40°C~70°C |
| Relative Humidity | 10% ~ 90%, Non Condensation |
| Storage Humidity | 5%~95% Non-Condensing |
| Dimensions | 7.0 x 4.5 x 1.1 in. (178 x 115 x 27.5 mm) |
