Xinland International Limited >> 808nm 50mw Infrared Line Laser Diode Module (XL808L0925)

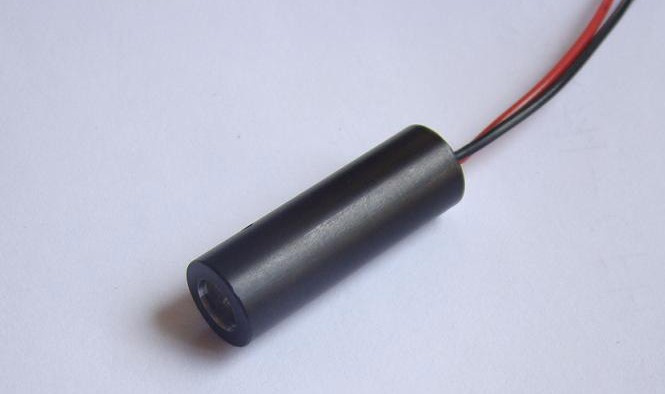

808nm 50mw Infrared Line Laser Diode Module (XL808L0925)

808nm 50mw Infrared Line Laser Diode Module (XL808L0925)
Supplier: Xinland International Limited
Price: Negotiable/Piece
Min Order: 100/Piece
Quantity::
Trade Terms: FOB
contact supplier

Product Specifications

Prod Model: XL808L0925
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Wavelength: 808nm
Power: <50mw
Beam Shape: Line
Size: 9x25mm

Product Description

Specification:
Size: Φ 9x25mm, Φ 10x30mm
Material: Copper or aluminum
Life time: Continuously life time >6000hrs
Wavelength: 808nm+_5nm
Output power: <50mW
Shoot range: <10m
Beam shape/diameter: Line/mini line width<1.0mm; Beam size<3mm @1m
Fan angle: 36.5deg; , 60deg; , 90deg; , 90deg; , 110deg;
Circuit: APC
Operating voltag: DC=3.0V/DC5.0V
Operating current: I<200mA
Operating temp: -10~+40Degree C
Storage temp: -40~+80Degree C.
Xinland International Limited, a professional opticalelectronics products supplier in China and specilized in developing and selling of all professional laser products and laser componets, such as red, green, blue, blue-violet laser module(including DOT, line and cross line laser module), laser pointer/flashlight, DPSS laser, laser level, laser sight/riflescope, laser stage lighting, laser equipment and bore sight. Meanwhile, We also can supply laser accessories, such as laser diode, collimator lens, laser protection googles etc.

These laser products are widely used in the field of test detection instrument, military equipment, laser medical equipment, laser marking, laser ranging, laser swinger, barcode scanning, location identification, teaching, power tools, measuring ranging, cutting marking, stage lighting and laser landmarks and so on
