Product Specifications
| Prod Model: |
XL-IRP-204 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |

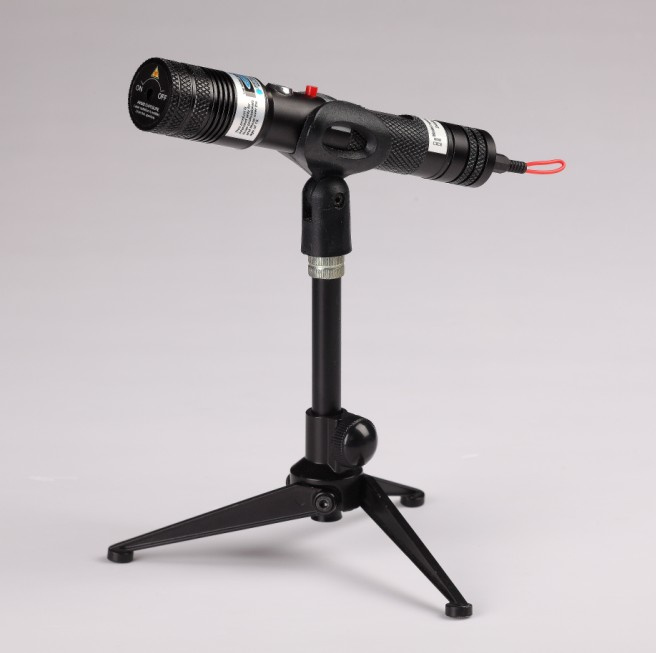

808nm Infrared Laser Pointer |
| Wavlength: |
808nm |
| Power: |
500mw~2500mw |
Product Description
Key Words: 808nm High Power Infrared Laser Pointer, Medical Laser Pointer, Portable Laser Pointer, Handheld Laser Pointer, Laser Pointer Pen, Infrared Laser Pointer, IR Laser Pointer
Specifications:
Wavelength (nm): 808
Beam Color: Infrared
Transverse mode: TE
Range in darkness (m): 200-1000
M2 factor: <1.2
Beam divergence, full angle (mrad): <6.0
Beam Diameter at Aperture (mm): <2.5
Spectral Line width (nm): <0.1
Polarization Ratio: >100: 1
Warm-up Time (minutes): <0.5
Operation Temperature (C): 10~30
Storage Temperature(C): -10~+50
Expected Lifetime (hours): 5000
Laser Head Dimensions(D× L, mm): Φ 38 * 205
Cooling System: Metal heat sink
Operating voltage(VDC): 1*18650 battery
Warranty time: 6 months
|
Model # |
Wavelength |
Output Power Range |
|
XL-IRP500-204 |
808nm |
490-500mW |
|
XL-IRP800-204 |
808nm |
800-850mW |
|
XL-IRP1000-204 |
808nm |
1000-1100mW |
|
XL-IRP1500-204 |
808nm |
1500-1600mW |
|
XL-IRP1800-204 |
808nm |
1800-1900mW |
|
XL-IRP2000-204 |
808nm |
2000-2100mW |
|
XL-IRP2500-204 |
808nm |
2500-2600mW |
Xinland International Limited, a professional opticalelectronics products supplier in China and specilized in developing and selling of all professional laser products and laser componets, such as red, green, blue, blue-violet laser module(including DOT, line and cross line laser module), laser pointer/flashlight, DPSS laser, laser level, laser sight/riflescope, laser stage lighting, laser equipment and bore sight. Meanwhile, We also can supply laser accessories, such as laser diode, collimator lens, laser protection googles etc.
These laser products are widely used in the field of test detection instrument, military equipment, laser medical equipment, laser marking, laser ranging, laser swinger, barcode scanning, location identification, teaching, power tools, measuring ranging, cutting marking, stage lighting and laser landmarks and so on
