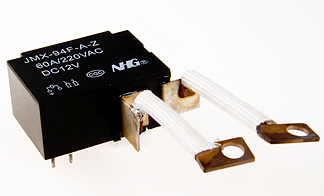

80A High Power Latching Relay (JMX-94F)
Product Specifications
Product Description
Dimension: 39X30X17.5
80A switching capacity
Magnet latching relay
Well anti-shock and anti-vibration
RoHS compliant
Contact Arrangement
| 1A (1H)(SPSTNO) 1B(1D)(SPSTNC)
|
Contact Material
| AgCdO
|
Contact Rating (resistive)
| 80A /250VAC
| 60A /250VAC
| 40 A
/250VAC
|
Max. Switching Power
| 20000VA
| 15000VA
| 10000VA
|
Max. Switching Voltage
| 300VAC
Max. Switching Current: 80A
|
Contact Resistance or Voltage drop
| ≤ 50 m Ω(at 1A /24VDC)
Item 3.12 of IEC 255-7
≤ 100m V(at rated load)
Item 3.12 of IEC 255-7
|
Operation Life
| Electrical (Rated load)
| 10,000
Item 3.30 of IEC255-7
|
Mechanical (No load)
| 1,000,000
Item 3.31 of IEC 255-7
|
Ningbo Huaguan Electronics Co., Ltd. is a sole foreign invested company, specialized in electric-magnet relay R&D and mass production. Over many years endeavor, we have built 25000 square meter workshops, imported fully or partially more than 30 production lines. In 2001 we have successfully imported 4 automatic production lines making the third generation communication relays, boosting onto the advanced position of production and technology level in China. Our company annual output is over 60, 000, 000PCS. Fixed asset is over 60, 000, 000. The annual sales is over RMB120, 000, 000, becoming one of the biggest in China the base for relay development and production. We have been entitled several times one of the China Electronic Components Top 100 Enterprises.
Our company takes great importance to HR and employee training. We have 1050 staff and workers, among them there are 160 senior engineers, engineers and technicians. We invite in a regular basis the experts domestic and abroad to give lectures providing information of relay technology, processing and products. We develop new products together too. We have completed one of the Key State Scientific and Technical Porch Plan Projects and started mass production already. In the recent years, we have promoted every year over 10 new products into the market, becoming one of the entities producing large variety and high volume of relays. We have got more than 20 state patents. We have been honored with Zhejiang Province High and New Technology Enterprise, Ningbo CAD software usage model company, China famous trademark, etc.
We take importance to total quality control. We are certified by ISO9001 assurance system, and ISO/TS16949 Quality Control System Certificate sucessfully. The products have been passed the safety certificates of UL, CSA, TUV, CE, VDE and CCEE etc.
