Product Specifications
| Prod Model: |
MPT-80K |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Technology: |
Online Low Frequency |
| Phase: |
Three Phase |
| Type: |
On-line |
| Protection: |
Overvoltage |
Product Description

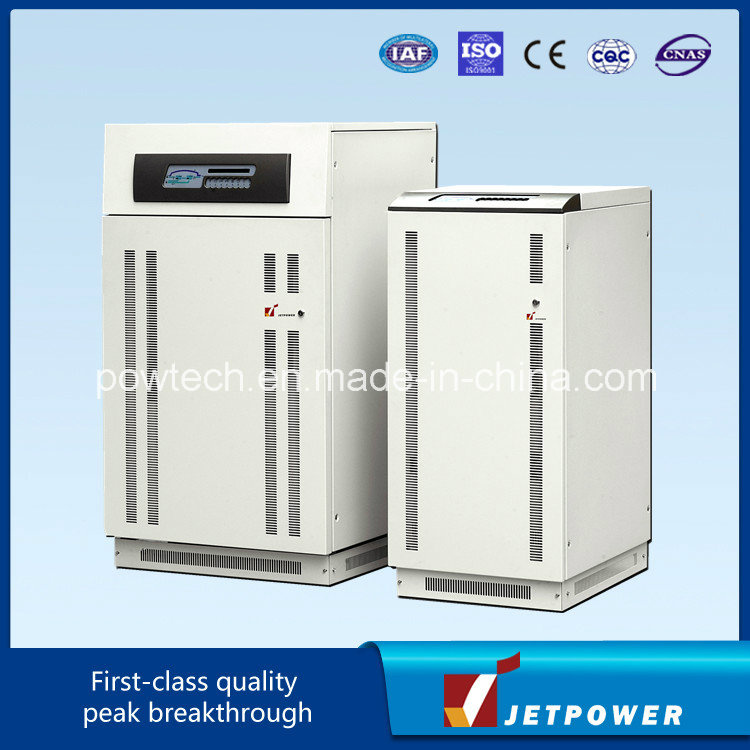

UPS: Low frequence online UPS
Description:
Input: 380Vac, 3phase
Output: 380Vac, 3phase
Capacity: 6kVA to 250kVA UPS
Isolation: Built-In Isolation Transformer
UPS features:
(1) High Performance System
(2) On-Line Double Conversion Topology
(3) True Sine Wave output
(4) Microprocessor Controller
(5) AVR Design, Expand Input Voltage Range(160 Vac~300 Vac)
(6) Inverter Design Using IGBT Module
(7) Well Protection
(8) Lightning and Spike Protection
(9) Electro Magnetic/Radio Frequency Interface(EMI/RFI) Filter Protection
(11) Outstanding Overload Capacity (Maintenance Up to 30 Seconds of 150% Overload)
(12) LED and LCD Display UPS Status and Internal Messages
Smart Computer Interface(RS232 Standard)
(13) Remote Monitoring, Control and Schedule Switch On/Power Down Capable
(14) Optional Series
External Battery Packs Can Extend Discharge Time From 0.5~2 Hours
Long Backup Series Contain 10A High Capacity Charger an Up to 8 Hours of Discharge Time
EPO(Emergency Power Off)
Auto By Pass Switch/Manual By Pass Switch
Technical Specifications:
| MPT6K~50K |
| Mode | MPT6K | MPT10K | MPT15K | MPT20K | MPT30K | MPT40K | MPT50K |
| Capacity (VA/W) | 6K/4.8K | 10K/8K | 15K/12K | 20K/16K | 30K/24K | 40K/32K | 50K/40K |
| Battery voltage (V) | 384 |
| Overall efficiency | ≥91% |
| Noise | ≤53dB (distance 1m) | ≤56B (distance 1m) |
| Size: W×D×H(mm) | 550×600×1135 | 650×700×1510 |
| Weight (Kg) | 260 | 280 | 310 | 340 | 480 | 520 | 560 |
| (w/o battery) |
| MPT 60K~250K |
| Mode | MPT60K | MPT80K | MPT100K | MPT120K | MPT150K | MPT200K | MPT250K |
| Capacity (VA/W) | 60K/48K | 80K/64K | 100K/80K | 120K/96K | 150K/120K | 200K/160K | 250K/200K |
| Battery voltage(V) | 384 | 480 |
| Overall efficiency | ≥93% | ≥94% |
| Noise | ≤60dB (distance 1m) | ≤65B (distance 1m) |
| Size: W×D×H(mm) | 1250×750×1600 | 1600×750×1600 |
| Weight (Kg) | 580 | 780 | 860 | 980 | 1250 | 1600 | 1800 |
| (w/o battery) |
| Common parameter |
| Input | Voltage | Three phase with four line+ground wire, 380V±25% |
| Frequency | 50Hz±10% |
| Power factor | ≥0.92 |
| Output | Voltage regulation | Three-phase four-wire system, 380V±1% |
| Frequency regulation | 50Hz±0.05%(battery mode) |
| Wave form | True sine wave |
| Harmonic distortion | <3% (linear load), <5%( non-linear load) |
| Unbalanced voltage | Balanced load≤1%, unbalanced load≤3% |
| Phase displacement angle | Balanced load≤1º, unbalanced load≤3º |
| Transient response | ≤3% (load change: 0~50%~100%) and recovery time ≤10ms |
| Overload | 110%≥20min; 150%≥20s |
| Crest ratio | 5:01 |
| Transfer time | 0ms |
| Efficiency | Input AC to output AC | ≥95% |
| Indicator | LCD | Input voltage, output voltage, frequency, battery voltage, output power (%) |
| LED | BLV LED (battery low voltage) |
| Battery | Battery type | Lead-acid sealed, maintenance-free |
| Charging method | PWM constant current and constant voltage, battery intelligent management system |
| Charging time (standard type) | 12 hours |
| System performance | MTBF | 300,000 hours |
| Environment | temperature-10º~50º, humidity 0~93% without condensation, altitude ≤3000m |
| Support software interface | Novell Net Ware Windows9X Windows2000 Windows NT Linux |
| Other | Dustproof and moisture proof, inverter isolating transformer, thunderbolt surging wave absorption, and manual bypass switch |
Advantages:
Reliability
Powtech has been engaged in designing and manufacturing ADSS/OPGW cable,Cable accessories nearly for 20 years.
Powtech professional design teams and strict quality control systems ensure each product from Powtech is reliable and ideal deals.
Powtech quality products meet the demands of many clients all around the world well according to their specific requirements.
Faster Delivery
With our own factory and product line, we can ensure faster delivery in the industry.
Further more, we have accumulated rich resources in shipping channels, which also promise our faster delivery time.
Powtech standard cases can be finished within 7 days and those custom-made within 8 days.
Lower Price
Powtech are committed to providing the best products for money of our customers all over the world.
Powtech has its own factory and massive production line,Which ensures that we can procure all materials at a lower purchasing cost than our competitors.
We promise that all products from Powtech are the most affordable in the industry.
Why Choose Us?
1.Strict quality control system
2.Factory direct-sales,Lower purchasing cost
3.Professional,efficient after-sales service,Time and manpower saving
4.Experienced workers team,Advanced technicians,Sophisticated equipment
5.Small trial order/OEM product/artwork is acceptable
6.Online UPS,Line interactive UPS,Offline UPS,Inverters,Rectifiers supplier from China,ISO certificated
FAQ
Q1:Can u provide us with samples?
Powtech answer:Yes, we can provide 1-2 pieces free samples, But u should pay express
cost or u provide us with express account number.
Q2:If we need customized/OEM product,Can u supply?
Powtech answer:Yes,Customized/OEM product/artwork is available for us.Professional
designers,Advanced technicians and mold modifications department ensure that we will make
the exact model for u accordingly.
Q3:If u can accept small trial order?
Powtech answer:Yes,Small trial order can be available also,But u should pay 100% T/T down
payment before production.
Q4:What payment terms available for u?
Powtech answer:If order amount less than 10000USD,100% T/T;If amount more than
10000USD,30%T/T in advance plus 70%T/T before shipment.
U can place an order via Alibaba website,Which is also very safe
and has payment protection for u.
Q5:Can u offer discount ?
Powtech answer:Yes,Discount available on large order.The larger the order,The more
discount we will offer.
Q6:What is ur delivery time?
Powtech answer:Usually,Delivery will be made within 2 weeks after down payment;If order very
large,1 month we will need.Please note,Delivery time is production time,Shipping time not
included,If u want to know,We can help u consult shipping company for details.
