80L Rust Drum Blowing Machinery (ABLD100)
Product Specifications
| Prod Model: |
ABLD100 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Automatic: |
Yes |
| Computerized: |
Yes |
| Making Method Of Parison: |
Stretch Blow |
| Type (',For Injection Machine): |
Full-Electric Controlled |
| Kind: |
Full-Electric Controlled |
| Processing Technics: |
Blow Molding Machine |
| Type: |
Plastic Extruding Machine |
Product Description

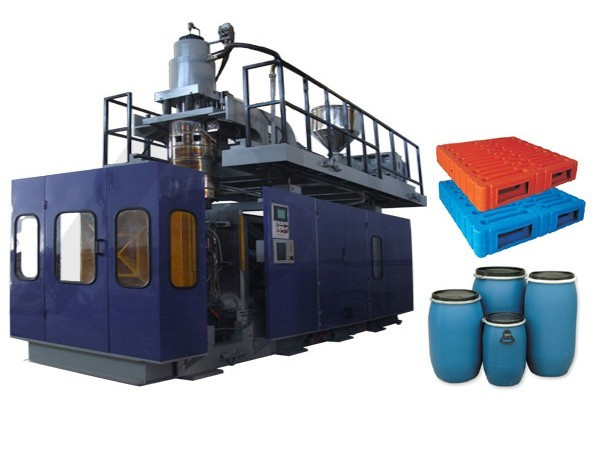

This type of blow molding machine ABLD100 can produce bottle, kettle, can, etc. The machine is especially designed for producing with material PE, PVC, PP and so on. The productive capacity can reach 30-40PCS/hr.
|
Max. Product volume |
100liters |
|
Output capacity |
30~40 pcs/h |
|
Screw diameter |
100mm |
|
Screw L/D ratio |
25 L/D |
|
Screw drive power |
45KW |
|
Screw heating capacity |
20KW |
|
No.of heating zone |
4 zones |
|
Output of HDPE |
160 KG/H |
|
Oil pump drive power |
37KW |
|
Clamping force |
440 KN |
|
Max.size of mold |
800X1000mm |
|
Mold stroke |
500-1200mm |
|
Max.die diameter |
430mm |
|
Die heating power |
9.5KW |
|
Die heating segments |
5zones |
|
Blowing pressure |
0.8mpa |
|
Air volume |
1.2M³/MIN |
|
Cooling water pressure |
0.3mpa |
|
Water consumption |
100 L/MIN |
We Apollo Machinery, located in the high-speed developing port city-Zhangjiagang, which is nearby to the international big city-Shanghai, specializes in making various kinds of blowing molding machine for the solution for plastic industry. We have specialized in this field for over 10 years. Our company with over 100 staff was established in 1997, occupy 8000 square meters.
Through over 10 years of hard struggle, our company has developed from a small company to Medium and Large size company. We always place our customer's profit on the first place through high quality, responsible price and considerate after-sale sevices.
We can provide blow molding machines for various kinds of plastic products, including cosmetic packaging, medical packing, washing packing, foodstuff packing, lubricate packing, plastic toys, hollow tube, tool boxes, chemical barrel and more. Our machinery are suitable for plastic containers from 5ML to 200L. Our machinery are also suitable for various kinds of plastic processing such as: PP, PE, PVC, PA, ABS, PPE, POM, PPO, HDPE, PVDC, EVOH, PETG and so on. So we are confident that we can meet your various kinds of demands for plastic blow molding machines.
Our products have a great reputation in the blow molding machinery and our products are always warmly welcomed by our new and old customers. Not only our sales in our domestic land, our products are also exported to overseas, such as America area: Canada, Mexico, Argentina, Colombia, Europe area: UK, France, Germany. Russia, Middle East area: Saudi Arabia, Oman, Iran, Turkey and the other countries of Asia: Japan, Philippines, Myanmar, India and more.
