Guangzhou Qianteng Electronic Information Technology Co., Ltd. >> 80mm Thermal Printer POS Printer for POS Terminal

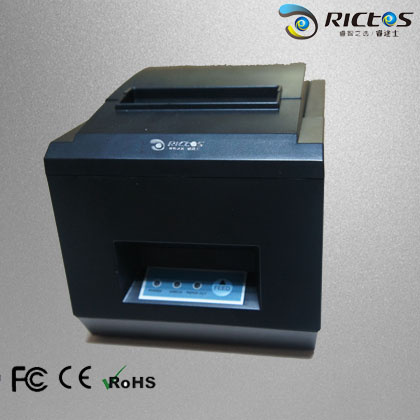

80mm Thermal Printer POS Printer for POS Terminal

Name: 80mm Thermal Printer POS Printer for POS Terminal
Brand: China-Manufacturer-Directory.com
SKU: 702669602
Availability: InStock
Rating: 4.7 (134 reviews)

Supplier:	Guangzhou Qianteng Electronic Information Technology Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,EXW

Product Specifications

Prod Model:	ERS8250
Markets:	South America,Southeast Asia,Africa,Mid East,Eastern Asia
Print Speed:	300mm/Sec
Interface:	Parallel/Serial Port/USB Port/ Ethernet
Emulation:	ESC/POS Command
Print Width:	79.5±0.5mm( Print Width 72mm
Print Diameter:	83mm
Print Thickness:	0.06-0.08mm
Touch Screen:	Without Touch Screen
Printer:	Thermal
Certification:	EMV
System:	Windows
Type:	Portable
Card Type:	All Type of Credit Card

Product Description

Suitable for all kinds of commercial in retails POS system, restaurant system, industrial control system.
Compatible with ESPON,SAMSUNG
support to download the Logo trademark

Features:
Low cost and High-quality thermal printing
Cash drawer drive supported
Easy paper-roll installation, Easy maintenance and Rational structure
Low-power waste, low-run cost (without the ribbons, ink cartridges)
Built-in data buffers (be capable of receiving print data while printing)
Characters can be amplified,printed in bold optionally,and line spacing printing can be adjusted
Support different density bitmap graphics printing
Support NV image downloading and printing
Support raster bitmap printing
High-speed printing using embedded soft font for all interfaces.
Compatible with ESC/POS print instruction set, optional columns and font(adjusted by DIP switch)
Advantage Characteristics
Audible and visual alarm supported, best application for kitchen menu printing.
USB port, Serial port, and Ethernet interface integrated on a main board.

Specifications:
Printing method:			Thermal line printing
Printing speed:			250mm/sec
Effective printing width:			72mm
Printing dots			512dots/line or 576 dots/line
Character size:			ANK,FONT A: 12 X 24 dots,FONT B: 9 X 17 dots Simplified Chinese/Traditional Chinese:24 X 24 dots
Storage	Data caching:		1MB
	SDRAM		8MB
	NV		256K
Resolution:			203 X 203dpi(8 dots/mm)
Language			International languages
Status monitoring		Black mark:	Support black label detection of left or middle two positions
		Network status	Support
		Cutter status	Support
		Paper status	Support
Paper size		Thickness	0.06-0.08mm
		Width:	79.5 + 0.5mm or 57 + 0.5mm
		Max dia	100mm
Interface:			Parallel port, Serial port, Ethernet, USB,USB to serial port
Automatic paper cutter			Full-cut or semi-cut
Working life		Printing movement	(10X105pulse)about 100km
		Automatic paper cutter	1,000,000pcs
		Mechanical	38,000,000 lines
Power adaptor		Input voltage:	AC 110V~220V
		Output voltage:	DC 24V/2.5A
		Frequency:	50Hz / 60Hz
Cash drawer controlling			DC12~24V/1A
Environment:		Working temperature	0-45ºC
		Contrast humidity:	10-80%
Barcode types:		1D barcode:	CODE128,CODE93,CODE39,EAN-13,ENA-8,UPC-A
		2D barcode:	QR
Software supporting		Driver:	WIN98/WIN2000/WINNT/WINXP/WIN7
		Compatibility:	Compatible with ESC/POS command and common machines in the market.
Physical features:		Size	145 x 195x 148 mm

Guangzhou Qianteng Electronic Information Technology Co., Ltd. is a positive moving towards high-tech enterprise group, the company involves in business field of importing & exporting trading, electronic component package (RITOS brand), electronic product development, SMT chip processing, connectors & connecting lines production, injection mold etc by investing or holding methods.

The company has a number of high-quality product design, development and sales management personnel, and always advocates "customer first, quality-oriented, technology lead, innovation as the soul" to be the pious belief and quality service to our customers, spurs all the staffs of company continue to move forward with the theme of " Be pious in the market and rising in the word".

Development with wisdom establishes company's premise and foundation to move forward fast, brings strong market power for the development of electronic products, and finally achieve mutual benefit and win-win prospects.

RICTOS scanner is the branch under the enterprise for electronic products, has a professional R & D, manufacturing team of "RICHOS" brand laser bar code scanner, 2D bar code scanner, scanning platform, bill paper printer and other products, with the first-class R & D the ability to adapt to the market and meet different customers' needs instantly
