80t Frame Vulcanizing Machine Plate Vulcanizing Machine
Product Specifications
| Prod Model: |
xlb 500*500*2 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Version: |
Xlb500*500*2 |
| Quality Guarantee: |
Two Years Life |
| Colour: |
Bule or as Per Customer's Requirements |
| Advantage1: |
High Working Pressure |
| Advantage2: |
High Producing Efficiency |
| Temperature: |
0-300 Adjustment |
| Heating Way: |
Electric/Steam/Oil |
| Type: |
General Rubber Machinery |
| Type Of General Rubber Machinery: |
Material Processing Machine |
| Type Of Tire Machinery: |
Rubber Regeneration Machinery |
| Certification: |
CE, ISO, ISO9001: 2008/CE/SGS |
Product Description

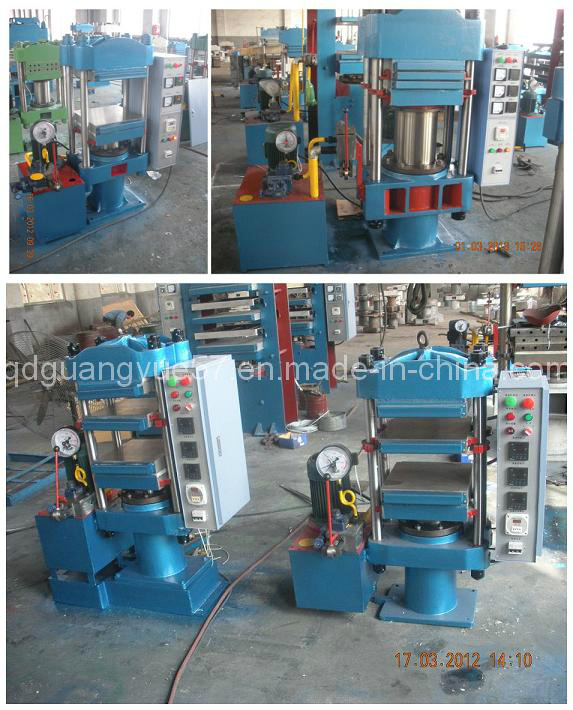

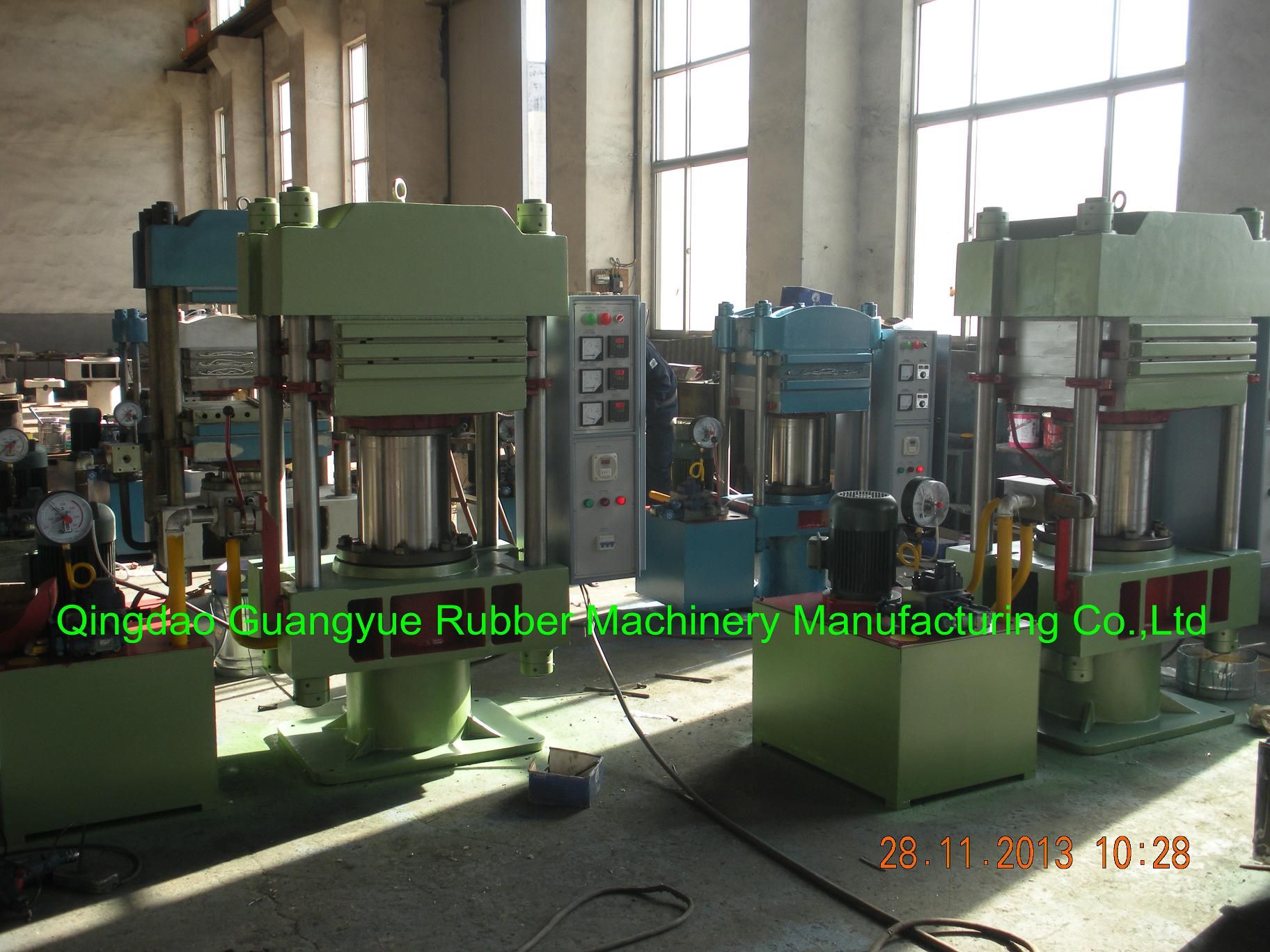

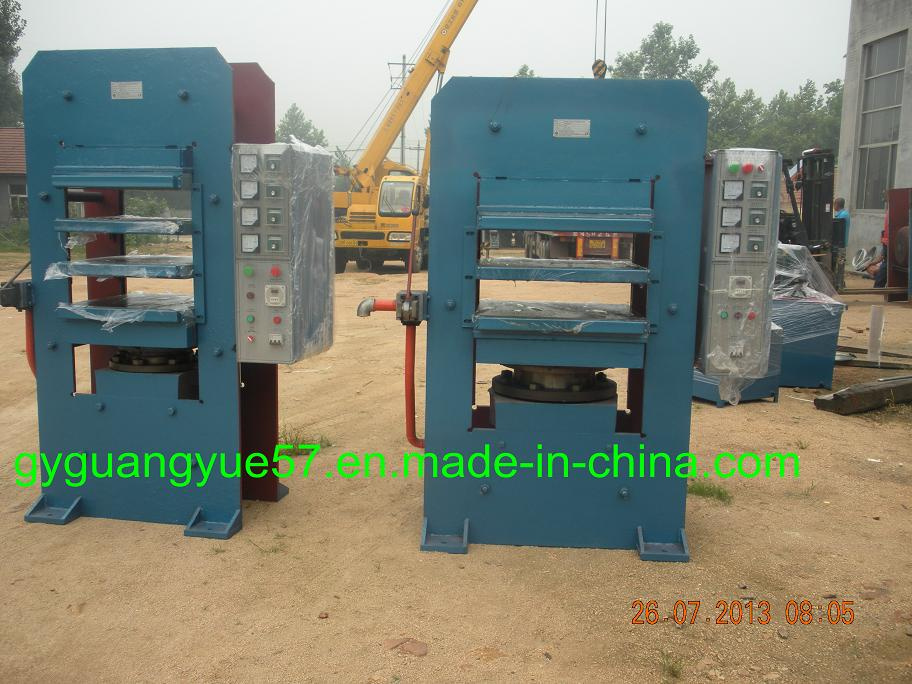

80t Frame Vulcanizing Machine , Plate Vulcanizing Machine
features:
1. This series product applies to press techniques of various plastic materials, such as punching, bending, crimping, etc. Besides, it can also be used for amendment, pushing mounting, forming of grinding wheel, press forming of plastic, rubber and powder products.
2. This series plate vulcanizing machine special-purpose takes shape the equipment for the rubber profession. Heats up the way to uses the electric heating(steam or oil heats up), the power uses the height combination to pump for the oil way, reduces the equipment the power loss.
3. The electrical control uses the advanced PLC control technology, may realize automati-cally controls when, automatically operates the mold, is automatic warm controls and so on the craft. And may realize automatically deflates. Thus guarantee product quality and high efficiency.
4. May have custom-made each kind of four columns, the frame type, the work table emigration type, the work table emigration type in addition according to the customer product technological requirement and so on the many kinds of plates vulcanizing machine.
about our factory: Qingdao Guangyue Rubber Machinery Co.,Ltd is one of the improtant backbone enterprises in rubber machchinery industry in China and is one member of Shandong machinery union company. The company owns powerful technical strength ,advanced technics,the best design and strict quality guarantee system,which owns a high reputation in China rubber machinery industry. The company takes"To live by quality,To develop by reputation,To innovate by science and technology,To keep improving all the time"as managing ideas,and insists on the principle of "Quality is the first,Reputation is the first,Client is the first" that will provide you the best service.We can product all kinds of non-standard rubber machinery,we can design by your requests Our products have been exported to many countries, such as America, Canada, Australia, South Korea, and Southeast Asia, Middle-east, etc.
If you interested in our products mentioned above. Kindly let us know by return email.| Model | XLB350x350x2 | XLB400X400X2 | XLB500x500x2 | XLB600x600x2/4 | XLB750x850x2 | XLB1000x1000x1/2 |
| Nominal mold clamping force(MN) | 0.25 | 0.5 | 0.8 | 1.0 | 1.6 | 2.5 |
| Space between hot plate(mm) | 125 | 125 | 125 | 125 | 125 | 200 |
| Working lager of hot plate | 2 | 2 | 2 | 2/4 | 2 | 2 |
| Unit area pressure of hot plate(Mpa) | 2.04 | 3.13 | 2.52 | 2.78 | 2.51 | 2.5 |
| Plunger stroke(mm) | 250 | 250 | 250 | 250/500 | 250 | 400 |
| Heating mode | electric/steam | electric/steam | electric/steam | electric/steam | electric/steam | electric/steam |
| Main motor power(kw) | 2.2 | 2.2 | 2.2 | 2.2 | 3 | 5.5 |
| Overall dimensions(mm) | 1450x400x1350 | 1600x400x1440 | 1450x690x1818 | 1880x780x1660 | 2100x1010x1900 | 2400x960x2500 |
| Mzchine weight(kg) | 1200 | 1500 | 1700 | 2500/3100 | 3560/4300 | 8300 |
| Structural form | post type | post type | post type | post type | post/box type | box type |
The company owns powerful technical strength, advanced technics, the best design and strict quality guarantee system, which owns a high repution in China rubber machinery industry.
The main products are plate vulcanizing press, open rubber mixing mill, banbury intensive kneader, extruder, rubber and reclaimed rubber machinery, within the (outside) tires complete set of machinery.The products have been sold to more than 20 provinces and cities in China and have been exported to more than 10 countries and areas.All of the products are designed visually by three-dimension CAD design, quickly built module, limited element analysis, analogue action and interfering inspection.The combination of three-dimension CAD system and internet guarantees the synchronization with internatinal advanced technology.The combination of three-dimension CAD and CNC numeral process center realizes the transit from traditional manufacture to modern three-dimension manufacture.At the same time, the company keeps good contact with several universities and research institutes.
The company takes"To live by quality, To develop by reputation, To innovate by science and technology, To keep improving all the time"as managing ideas, and insists on the principle of "Quality is the first, Reputation is the?First, Client is the first" that will provide you the best service.
