Dream (Shanghai) Compressor Co., Ltd. >> 8bar All-in-One Air Screw Compressor

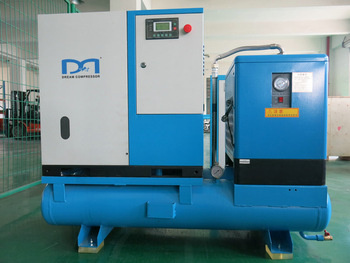

8bar All-in-One Air Screw Compressor

Name: 8bar All-in-One Air Screw Compressor
Brand: china-manufacturer-directory.com
SKU: 774556975
Availability: InStock
Rating: 4.3 (119 reviews)

Supplier:	Dream (Shanghai) Compressor Co., Ltd.
Price:	US $ 3000-10000/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	DM-11SAT
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Rotary Screw
Working Pressure:	7~13bar
Air Tank:	180L
Air Dryer:	Refrigerant
Dew Point:	2~10

Product Description

Stationary Electric rotary Screw type Air Compressor with Dryer

SKF bearing match with high efficiency screw air end
Single stage air compression design,stable air supply.
Inlet sound attenuation design,build a low noise working environment to user.
1-2 years warranty period for whole machine,5 years for air end.

Technical data for combined screw air compressor with air dryer and air receiver

Model	Power consumption	Discharge pressure (Mpa)	Air discharge (m3/min)	Air tank volume (L)	Refrigerated air dryer (m3/min)	Filter (um/ppm)	Connection size (inch)	Dimension (LWH,mm)	Weight (Kg)
DM-5SAT	5.5Kw/7.5Hp	0.7	0.85	180	1.2	1/1	ZG1	15706451300	580
		0.8	0.78
		1.0	0.65			0.01/0.01
		1.25	0.5
DM-7SAT	7.5Kw/10Hp	0.7	1.1	180	1.2	1/1	ZG1	15706451300	680
		0.8	1
		1.0	0.8			0.01/0.01
		1.25	0.6
DM-11SAT	11Kw/15Hp	0.7	1.7	260	2.4	1/1	ZG1	19009601590	785
		0.8	1.6
		1.0	1.4			0.01/0.01
		1.25	1.2
DM-15SAT	15Kw/20Hp	0.7	2.4	260	2.6	1/1	ZG1	19009601590	810
		0.8	2.2
		1.0	2.1			0.01/0.01
		1.25	1.7
DM-18SAT	18.5Kw/25Hp	0.7	3.1	500	3.8	1/1	ZG1.5	215011601740	895
		0.8	2.9
		1.0	2.7			0.01/0.01
		1.25	2.2
DM-22SAT	22Kw/30Hp	0.7	3.8	500	3.8	1/1	ZG1.5	215011601740	930
		0.8	3.5
		1.0	3.2			0.01/0.01
		1.25	2.5
DM-30SAT	30Kw/40Hp	0.7	5.2	500	6.5	1/1	ZG1.5	215011601740	1050
		0.8	5
		1.0	4.3			0.01/0.01
		1.25	3.7

1.The combined screw air compressor integrates the parts including screw compressor,air dryer,high efficiency air filter and air tank,making it convenient for the user to install,use and move.
2.After the air pass the integrated system,the quality of the air is made largely better to satisfy the process requirements of various companies.

3.Beautiful appearance,reliable performance and excellent economy make it one of our most important export series.

PACKING

Dream(Shanghai) Compressor Co., Ltd., founded in 2005, is a Sino-German high-tech enterprise in research, development, production and sales. Our company is located in Songjiang District, Shanghai, covering an area of ten thousand square meters with more than 300 employees. We have set up offices in the major provinces and cities. Since establishment, Dream (Shanghai) Compressor Co., Ltd. Has been diligently striving toward the development of new technology and promotion of use to ensure that the process closely synchronized with European standards. Our company set up an R&D center in Germany. Needs of the China market and the operation conditions are well understood. We take domestic operation design and main components imported from Europe, using European standard production assembly lines. By this, we strictly control the production in Shanghai and the production of spare parts, so that the performance of each air compressor synchronous is up to European standard.
