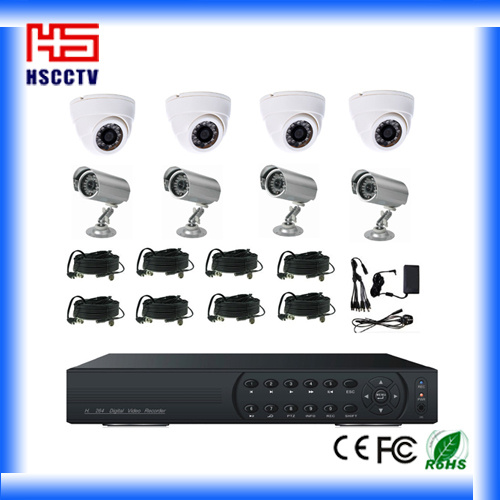

8CH Audio 8CH home Security camera system
Specification:
1.8CH DVR system, 8CH security camera system
2.8PCS waterproof camera CCTV camera system
A: 1/4 CMOS 700TVL with IR cut filter, 24PCS IR LED, 3.6mm board lens
4PCS HS-7602, 4PCS HS-5621
3.1PC 8CH 2D1 6 CIF H. 264 DVR
4.8PCS 20M video+power cable
5.1PC 12V 10A power adaptor with 1-8 splitter
6. Support 1*2TB HDD
7.8CH 1D1 7CIF DVR, 1CH AUDIO
9. With Black/White /silver/Grey/purple color option
Shenzhen Huishi Electronics Co., Ltd is Chinese factory of CCTV camera and camera board over 5 years. We provide IR Waterproof Camera, Dome Camera, CCD camera, board camera, security camera, Box CCTV Camera, High speed dome Camera, DVR, and so on
OEM, 2-5 days leadtime, 2 years warranty, lifetime maintain. NO MOQ. Sample order is welcome.
Our Service:
(1) Prompt reply: Your inquiry related to our products or price will be replied within 24 hours.
(2) OEM Service: We offer customized options for our products, and customer's designed LOGO printing is available.
(3) Quality Control: All products we sold are 100% strictly selected and tested by our QC department.
(4) Warranty: We offer 2 years product warranty.
|
Model No. |
|
HS-7708V |
|
|
System |
Video Compression Format |
H.264 |
|
Main Processor |
High Performance Embedded Microprocessor HI3515 |
|
Video System |
NTSC / PAL |
|
Operation System |
Embedded Linux |
|
Video |
Video Input |
|
8CH BNC |
|
|
Video Output |
|
|
Audio |
Audio Input |
|
1 CH RCA |
|
|
|
(could be expanded to 8CH) |
|
|
Audio Output |
1CH RCA |
|
|
|
Bidirectional Talk |
YES |
|
|
|
Recording |
Real Time Recording |
|
1D1 / 7CH CIF Real Time |
|
|
Resolution |
NTSC - CIF (352 x 240) / D1 (704 x 480) |
|
PAL - CIF (352 x 288) / D1 (704 x 576) |
|
Frame Rate - D1 |
|
NTSC 30fps / PAL 25fps |
|
|
Frame Rate - CIF |
|
NTSC 30fps / PAL 25fps |
|
|
Recording Mode |
Manual / Alarm / Video Detection / Continuous |
|
Playback |
Playback Channel |
|
8CH CIF Real Time Playback |
|
|
Search Mode |
Time / Date / Alarm / Motion Detection / Exact Search |
|
Playback Mode |
Normal Play / Fast Forward / Fast Rewind / Frame by Frame |
|
Playback Software |
General H.264 Player V1.7.0. |
|
Alarm |
Alarm Input |
N/A (could be expanded to 8CH) |
|
|
Alarm Output |
N/A (could be expanded to 1CH) |
|
|
Storage |
HDD Interface |
1 x SATA Fixed HDD up to 4TB each |
|
Backup |
USB Port |
2 x USB 2.0 port |
|
Backup Format |
H264 (only for Playback Software - General H.264 Player V1.7.0.) |
|
Backup Mode |
Network download / Flash stick / movable HDD / SATA HDD / DVD-RW |
|
PTZ |
PTZ |
1 x RS485 |
|
Protocol |
PELCO-P / PELCO-D / HY / NEON / PANASONIC / SAMSUNG / PHILIPS / SANLI / SANTACHI / SHARP / SONY / YAAN |
|
Network |
Interface |
RJ45 port / 10M / 100M / 1,000Mbps Ethernet |
|
Protocol |
TCP/IP, DHCP, DDNS, DNS, PPPoE, UPNP, NTP, SMTP , FTP, RTSP, ARSP etc.. |
|
CMS Program |
G eneral _CMS_Eng_3.0.7.7.T (support up to 255 DVRs Platform) |
|
Mobile Phone Support |
iPhone / iPad, Android, BlackBerry, Symbian, Windows Mobile Pro |
|
Computer System Support |
Windows2000 / XP/ Vista/7/ Mac OS x 10.6/10.7 |
|
Compatible Browser |
Google Chrome. Internet Explorer. Mozilla Firefox. Safari |
|
|
Simultaneous Remote Viewers |
up to 10 users |
|
|
|
Others |
Language |
28 Kinds Language Choose |
|
Operating Temperature |
0°C ~ 55°C |
|
Operating Humidity |
10% ~ 90% |
|
Dimension |
300*235*45mm |
|
Weight |
2.38KG |
|
IR Remote Control |
YES |
|
USB Mouse |
YES |
|
Power Supply |
DC 12V/2A |
