Product Specifications
| Prod Model: |
8CH-404 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| DVR Kit: |
8 CH |
| Camera: |
8PCS Vandal Proof Camera |
| Camera IR: |
30PCS |
| Camera Lens: |
3.6mmboard Lens |
| Camera Resolution: |
480tvl |
| DVR: |
8CH D1 |
| Network Monitor: |
Yes |
| Mobile Monitor: |
iPhone, Symbian, Android |
| Audio: |
8CH |
| Type: |
Monitoring System |
| Technology: |
Infrared |
| Application: |
All-Round Monitoring |
| Kind: |
Manual Focus Lens |
| Feature: |
Vandal-proof |
| Sensor: |
CMOS |
| Horizontal Resolution: |
480tvl |
Product Description

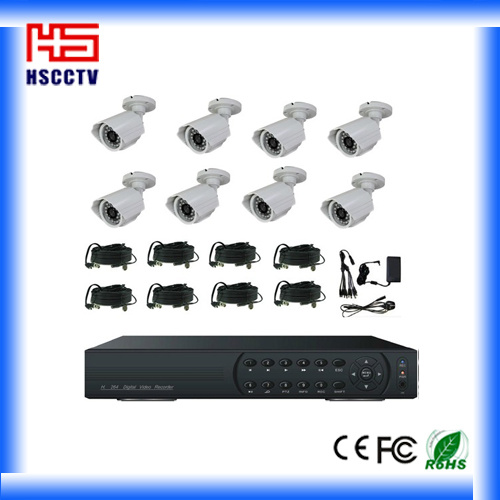

8CH HDMI CCTV DVR System
1.8CH DVR system, 8CH CCTV DVR system
2.8PCS waterproof camera CCTV DVR,
A: 1/3 Sony 480TVL, 30PCS IR LED, 3.6mm board lens(hs-7628)
3.1PC 8CH D1 H. 264 DVR(hsd9408HD)
4.8PCS 20M video+power cable
5.1PC 12V 10A power adaptor with 1-8 splitter
6. Support 1*2TB HDD
7.8CH D1 DVR, 8CH AUDIO
8. Support OSD
Shenzhen Huishi Electronics Co., Ltd is Chinese factory of CCTV camera and camera board over 5 years. We provide IR Waterproof Camera, Dome Camera, CCD camera, board camera, security camera, Box CCTV Camera, High speed dome Camera, DVR, and so on
OEM, 2-5 days leadtime, 2 years warranty, lifetime maintain. NO MOQ. Sample order is welcome.
Our Service:
(1) Prompt reply: Your inquiry related to our products or price will be replied within 24 hours.
(2) OEM Service: We offer customized options for our products, and customer's designed LOGO printing is available.
(3) Quality Control: All products we sold are 100% strictly selected and tested by our QC department.
(4) Warranty: We offer 2 years product warranty.
|
DVR Model |
HSD9408HD |
|
System |
System Resources |
Live, Recording, Playback, Backup& Remote access |
|
Control Mode |
Front panel, USB mouse, IR remote contral, Keyboard, Network |
|
Compression |
H. 264 /G711 |
|
Video |
Input |
8 channel, BNCx4, Composite: 1.0Vp-p/75, |
|
Output |
1 channel BNC/TV, 1 channel VGA, Composite: 1.0Vp-p/75 |
|
Audio |
Input |
8 channel, BNC |
|
Output |
1 channel, BNC |
|
Display |
Display Split |
1, 4, 8, 9 |
|
Resolution |
1024*768; 800*600 |
|
Frame Rate |
Display |
PAL: 100FPS NTSC: 120 FPS |
|
Record |
PAL: 100 FPS NTSC: 120FPS |
|
Alarm |
Trigger Events |
Recording, PTZ Movement, Alarm, Email |
|
Alarm Input |
8 channel |
|
Relay Output |
8 channel |
|
Playback& Backup |
Playback Functions |
Play, Pause, Stop, Fast play, Slow play, Full screen, Backup selection |
|
Backup Mode |
Flash drive, USB HDD, USB CD, Network download |
|
Network |
Interface |
RJ45 Port, 10/100MB |
|
Functions |
TCP/IP, PPPoE, DHCP, DDNS, IP Fliter, UDP, Email, Alarm Server, uPNP |
|
Remote Operation |
Monitor, PTZ control, Playback, System setting, File download, Log information |
|
Hard disk |
2 SATA port, Max 3000G HDD support |
|
Auxiliary Interface |
USB Interface |
2 ports, 1 for mouse control, 1 for backup |
|
RS485 |
PTZ control |
|
Environments |
Power Supply |
AC 100~240 V, 50/60Hz |
|
Power Consumption |
25W |
|
Dimension |
1U, 336mm*350mm*50mm |
|
Weight |
3.0kg |
