Fuzhou Monita Photoelectric Co., Ltd. >> 8CH DVR

8CH DVR

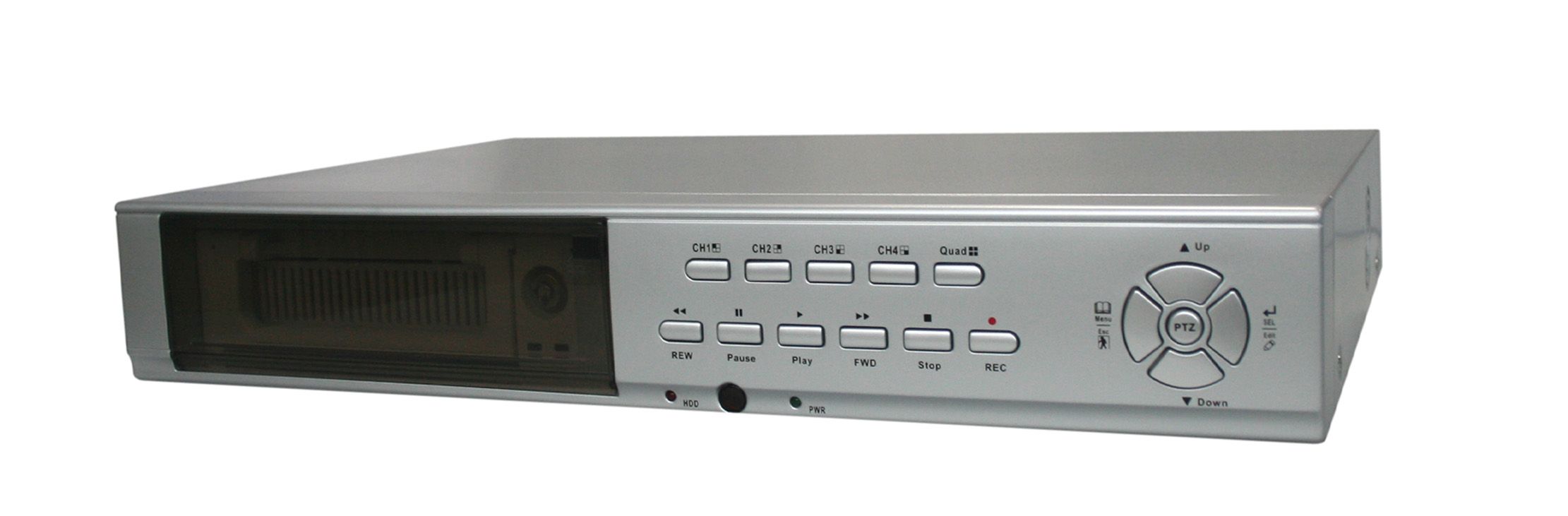

Name: 8CH DVR
Brand: China-Manufacturer-Directory.com
SKU: 662697572
Availability: InStock
Rating: 4.6 (23 reviews)

Supplier:	Fuzhou Monita Photoelectric Co., Ltd.
Price:	Negotiable
Min Order:	1
Quantity::

Product Specifications

Prod Model:	MNT-DF8108V
Type:	H. 264 dvr
Usage:	record

Product Description

*Category: Stand-alone DVR
*Video: 4/8-CH inputs / 2-CH output
*Resolution: CIF
*support dual stream transmission
*Support remote view with Mobile Phone

Model	MNT-DF8108 Standalone DVR
Video Compression	H.264
Video System	NTSC / PAL
Operation System	Linux
Video Input / Output	BNC 8-channel inputs / 2-channel outputs
Audio Compression	8kHz*16bit ADPCM
Audio Input / Output	RCA 1-channel input / 1-channel output
Display Frame Rate	PAL: 200fps / NTSC: 240fps
Playback Resolution	PAL: CIF(352x288) / NTSC: CIF(352x240)
Total Recording Frame Rate	PAL: 200fps@CIF / NTSC: 240fps@CIF
Recording Mode	Always / schedule / motion detection / sensor triggered
Recording Pack Time	15/30/45/60mins selectable
HDD Interface	Support SATA HDD & USB disk
Network Interface	RJ45, 10M/100M
Network Protocol	Support TCP/IP, UDP, DHCP, DNNS, PPPoE
Network Function	Support to live view with IE (Internet Explorer) & with Mobile phone
USB2.0	USB mouse, USB disk (backup, upgrade)
Playback Mode	Normal play, fast forward, fast rewind, frame by frame
PTZ	Built-in RS-485 port, support PELCO-P & PELCO-D
Backup	Backup AVI file via USB flash disk, USB disk, USB CD/DVD-RW & Network
PTZ Control	Built-in RS485, support PELCO-P & PELCO-D
Alarm Mode	Motion Detection, Sensor triggered, video loss, HDD error, HDD full
Senor & Alarm I/O	8 sensor inputs / 1 alarm output
Power Supply	DC 12V/3A (power adaptor included)
Power Consumption	10~15W
Working Temperature	-10°C to +40°C
Working Humidity	10% to 90%
Dimension	400 x 275 x 70mm (W x D x H)
Extension Model	Description
MNT-DF8108V	MNT-DF8108 with 1 VGA output

Monita Photoelectric Co., Ltd. is an enterprise specialized in developing, researching and manufacturing various CCTV products and intelligent control system. The products range from Camera, DVR, intelligent control system products to relevant accessories. Over these years, we have built a good reputation in this field for our quality goods and excellent service.

Now, Monita is one of the leading security and intelligent control system manufactures with considerable technology and scale in China. Over 60% of company's products are exported to more than 30 countries and districts like USA, Venezuela, Canada, Australia, Chile, Singapore, Sweden, Netherlands, UK, Ukraine and so on.

We are able to offer professional, comprehensive OEM and ODM schemes. Efficient production methods coupled with lower costs of production enable us to deliver a competitive price point without compromising quality. Our technical support centre delivers a full range of skills and technical "know how" for all our products.

Thank you for visiting our website and looking forward to establishing business relation with your esteemed firm.
