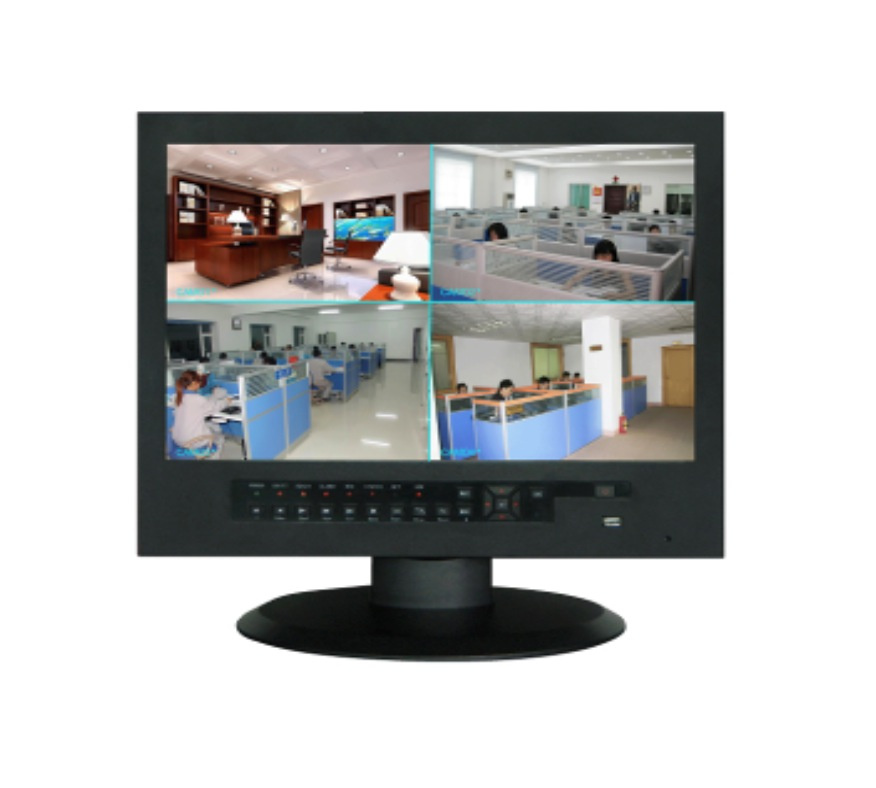

8CH H. 264 17" LCD CCTV DVR Home Security System
| Price: |
US $ 309/Piece |
| Trade Terms: |
FOB,EXW,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
Product Specifications
| Prod Model: |
WDM-DVR8108L |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Support: |
PTZ Control, Multi-Language OSD |
| Mobile Phone Surveillance: |
Support iPhone, Android, Symbian, Blackberry, Wind |
| Backup: |
1 USB 2.0 Port for USB Flash Disk, Portable HDD |
| Function: |
Buzzer, Alarm, Recording, PTZ Movement, Email, Cha |
| Recording Frame Rate: |
6 CH CIF+2 CH D1 |
| Recording Playback: |
8 Channels Playback Simultaneously |
| HDD: |
Support 1 SATA HDD, Capacity to 4tb |
| Video Output: |
VGA, HDMI |
| Audio: |
1CH Audio |
| LCD: |
17 Inch LCD, 4:3 TFT Digital Screen |
| Type: |
Standalone |
| Video Compression: |
H.264 |
| Operating System: |
Linux |
| Application: |
Commercial DVR |
| Interface Type: |
BNC/VGA/HDIM |
| Video Input/Output: |
8 Channel |
| Remote Control: |
With Remote Control |
| Audio Input/Output: |
1channel |
Product Description
8CH H. 264 17" LCD CCTV DVR Home Security System
Features:
>H.264 compression
>multiple lanuage
>Support mutiple CH monitoring on phone
>Best network service(support DHCP,PPPOE,FTP,IP searching,alram center and so on),complementory set(WEB,customer software,SDK)
>8 CH D1 window,full-time live view D1 recording,8 CH playback simultaneously 2 Ch D1,6 CH no full-time live view CIF,full-time live view CIF recording,8 CH full-time live view CIF playback simultaneously
Parameter |
Item name |
8CH H. 264 17" LCD CCTV DVR Home Security System |
Item number |
WDM-DVR8108L |
Compression |
H·264 |
Recording capacity |
6 CH CIF+2 CH D1 |
VGA Preview |
HD |
Video Interface |
17 inch LCD,4:3 TFT digital screen |
Audio Interface |
1RCA input,1RCA output |
Comes with domain name |
www.xmeye.net |
Alarming interface |
Optional |
Encoding Mode |
D1/CIF/QCIF,Main and subdiretory Stream |
Coding frame rate |
2 CH D1@25fps+6 CH CIF@25fps |
Playback Windows. |
Multiple |
PTZ |
Support |
Device interface |
RS485,2*USB2·0,mouse,remote monitor |
Phone mornitor |
Android and IOS |
HDD Interface |
Support one 2048G(2T)hard disk |
Other Function |
Customized logo on screen when turn on/timing switch |
Net Interface |
RJ45,10M/100M network adaptive |
Dimension |
380(W)*390(L)*80(H)MM |
