Product Specifications
| Prod Model: |
CH-N8008M |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Standalone |
| Application: |
Commercial DVR |
| Interface Type: |
BNC/VGA/HDIM |
| Operating System: |
Linux |
| Compressed Format: |
H.264 |
| Video Compression: |
H.264 |
| Audio Input/Output: |
8 Channel |
| Video Input/Output: |
4 Channel |
| Remote Control: |
With Remote Control |
| Operation System: |
Embedded Linux |
Product Description
Model: CH-N8008M
Home Security 1080P 8CH Surveillance Video Digital Security CCTV Standalone Network DVR

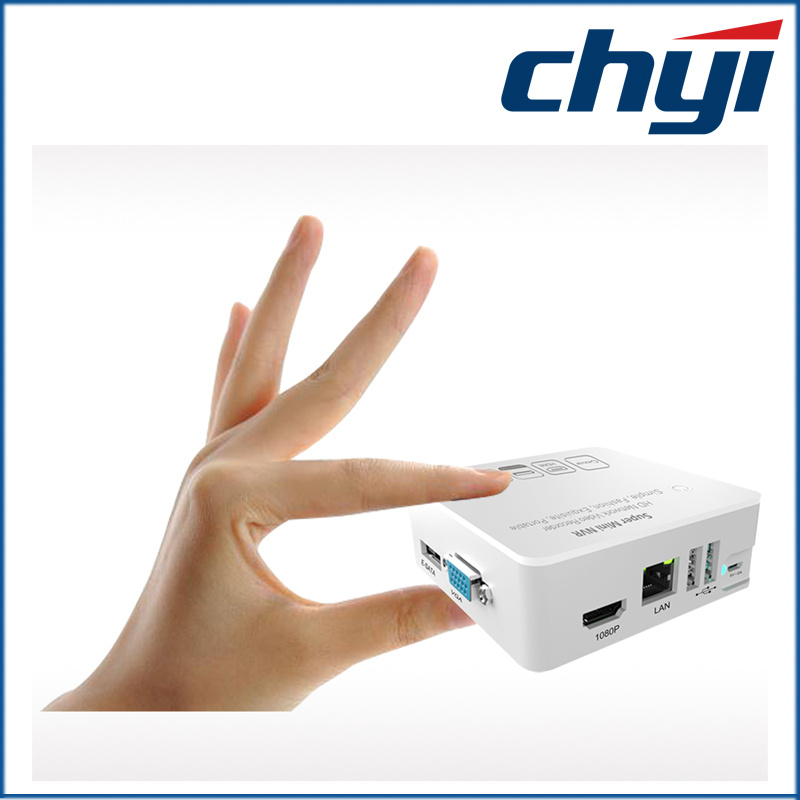

8CH Mini NVR
Embedded LINUX operating system
Support standard Onvif 2.0 protocol, can connect IP camera, IP high-speed dome camera and DVS;
Support 8CH 1080P / 8CH 960P / 8CH 720P IP Cameras;
Support 4CH playback in 8CH 720/960P mode; 1CH 1080P playback in 8CH 1080P model;
Support U disk, USB mobile HDD, USB DVD-RW. Network storage and backup;
Support 1CH VGA+1CH HDMI video output;
Support 8CH netword audio input and 1CH RCA auxiliary output;
Can connect third party (AXIS, Bosch, Panasonic, SANYO, Sony, Hikvision, Dahua, Histream etc. )IP cameras;
Support megapixel high-definition network video preview, storage and playback;
Can select any area on the screen by mouse and zoom;
Support preview and playback zooming function;
Support search, playback and backup video files by event;
Support 3G, WiFi;
Support Mobile HDD/E-SATA/USB Disk
Support 3G smart phone surveillance(iPhone, blackberry, windows mobiles, android mobiles and symbian mobiles).
DC 5V 2A Max Brandwidth 40Mbps
Demension: 88mm× 88mm× 32mm
Weight: 0.25 KG
30sets / Carton 8KG/Carton
Why Choose CHYI?
1. Products superb quality
- Well-Selected Raw Material
- High Temperature Test
- 24 Hours Aging Test
- Waterproof Test
2. Two year warranty
3. FCC, RoHS, CE approved
4. Free samples at the first week of each month
5. Fast lead time 3-7 days for sample order, 5-15 days for general orders.
| Model Number | CH-N8008M |
| Operating System | Embedded LINUX operating system |
| Image Code Control | Image code quality adjustable, variable bitstream and constant bitstream optional |
| Dual Stream | Each channel can set main stream and sub stream |
| Video Standard | 1080P(1920×1080)30fps/960P/(1280×960)/720P (1280×720)30fps |
| Monitoring Image Quality | 1080P(1920×1080) / 960P/(1280×960)/720P(1280×720) |
| Image Motion Detection | Each screen can set mutiple detection areas and set 6- level sensitivity(IPC Support) |
| Recording Playback Quality | 4ch playback in8ch 720/960P mode; 1ch 1080P playback in 8ch 1080P mode |
| Region Cover | Every channel can set 4 cover regions(IPC Support) |
| Recording Mode | Support manual , auto, dynamic detection, alarm trigger record mode(Partly needs IPC Support) |
| Backup Way | Support U disk, USB mobile HDD, USB DVD-RW, network storage and backup |
| Operation Way | Mouse |
| Local Login | User name and password |
| Recording Storage | Local HDD, network |
| External Ports | Video Input | 1, 8×(1280*720)+sub[640*360]+1Ref.+4Play 8CH 1.0MP IP Camera |
| 2, 8×(1280*960)+sub[640*480]+4Ref.+1Play 8CH 1.3MP IP Camera |
| 3, 8×(1280*960)+sub[720*576]+2Ref.+1Play 8CH 1.3MP IP Camera |
| 4, 8×(1920*1080)+sub[720*576]+1Ref.+1Play 8CH 2.0MP IP Camera |
| Audio Input | 8ch network audio input |
| Video Output | 1ch VGA+1ch HDMI |
| Network Port | 1 RJ45,10M/100M self-adaptive LAN port |
| USB Port | 2 USB 2.0 ports |
| Wireless Port | 3G,WIFI |
| HDD | Mobile HDD/E-SATA/USB Disk |
| Mobile Surveillance | Support( iPhone, Windows Mobile, BlackBerry, Symbian, Android) smart phone |
| Power Supply | 5V2A |
| Power Consumption | ≤10W(without HDD) |
| Working Temperature | -10~+55 Centigrade |
| Working Humidity | 10%-90% |
| Dimension | Equipment:88mm×88mm×32mm, Packing:185.5mm×115.5mm×36mm |
| Weight(without HDD) | N.W.: 105g; With packing:250 |
| Outside Carton | 30 pcs/carton. 365mm×350mm×188mm; Weight: 8kg |
| Installation Way | Desktop Installation |
