8CH Security System with Digital Zoom Function (MVT-K08D)

Name: 8CH Security System with Digital Zoom Function (MVT-K08D)
Brand: china-manufacturer-directory.com
SKU: 702938945
Availability: InStock
Rating: 4.8 (86 reviews)

Supplier:	Shenzhen MVTEAM Technology Co., Ltd.
Price:	Negotiable/Set
Min Order:	1/Set
Quantity::
Trade Terms:	others

Product Specifications

Prod Model:	MVT-K08D
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
DVR:	H. 264 DVR with Digital Zoom Function
Indoor Camera:	4PCS Mvt-D2251t(1/3"Sony CCD, 420tvl)
Outdoor Camera:	4PCS Mvt-R2051t(1/3"Sony CCD, 420tvl)
IR Distance:	25m
Power Adaptor:	1PC 1-in and 8-Output Power Adaptor
Cables:	8PCS 20m Power + Video Extension Cable
HDD Info:	Support 1PC 2tb SATA HDD
Language:	Support 18 Kinds Language
Software:	Free Cms Client Software
CE, RoHS, FCC Certificate:	Yes
Type:	Monitoring System
Sensor:	CCD
Technology:	Pan / Tilt / Zoom
Horizontal Resolution:	420tvl
Feature:	with Digital Zoom Functions
Kind:	Fixed Lens
Application:	Home, Office Use

Product Description

8CH Security System with Digital Zoom Function (MVT-K08D)

Warmly notice:
1-MVTEAM provide security camera system come with all needed accessories except hard disk.
Because the installed hard disk in DVR is easily damaged during transport. Our suggestion is to buy hard disk in your lacal market. If you need HDD from MVTEAM we also could provide.

2-In the system, power+video extension cable from camera to DVR is 20m long, if the distance form cameras to DVR is more or less than 20m, please inform us. We also could provide 10m, 15m and 30m cables.

3-8PCS cameras in the system support night vision, can view about 25m at night

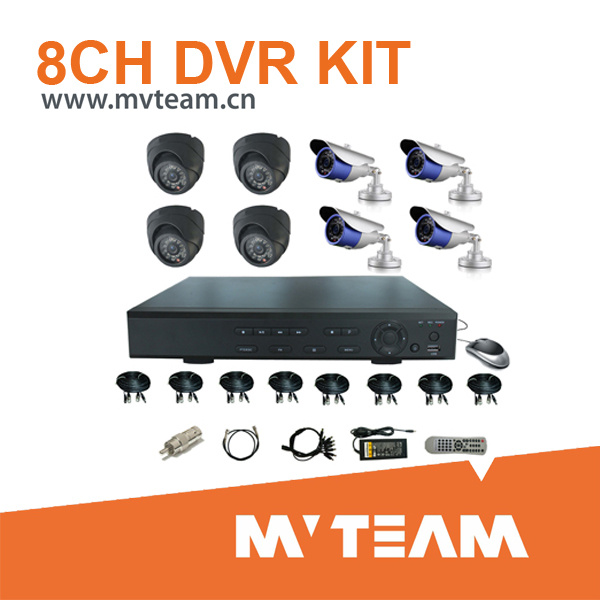

4CH CCTV System Components:
1PCS DVR MVT-6008+4PCS outdoor CCTV Camera MVT-R2051T +4PCS indoor camera MVT-D2251T+ 1PCS 1-in and 8-output powe adaptor+8PCS 20m Extension cable+1PC 2m coxcial cable

Spec:
1-DVR MVT-6008, 1PC 8CH DVR, Compression format: H. 264, Digital Zoom Function While
Display and Playback
2-Display & Record Frame Rate: 25*4FPS (PAL), 30*4FPS (NTSC)
3-4PCS MVT-R2051T(1/3"Sony CCD, 420TVL, 23PCS× Φ5 LEDs, 6mm lens, IR distance: 25m)
4-4PCS MVT-D2251T(1/3"Sony CCD, 420TVL, 23PCS× Φ5 LEDs, 6mm lens, IR distance: 25m)
5-1PC 1-in and 8-output power adaptor for CCD cameras, 1PC 2m coxcial cable to connect
DVR and TV set
6-8PCS 20m 2 in 1 (Power+Video ) extension cable with BNC connector
7-USB port: High speed USB2.0 for mouse, backup and upgrade, support 1PC SATA
HDD, support windows mobile phone, Dopdo phone recommened, come with 1PC mouse.
8-support IE browser and client software(Notework), with Remote controller
9-DVR can be connected to the PC monitor, TV set and LCD Monitor
Support multi-language:
English, Russian, Italian, German, Polish, Turkish, French, Portuguese, Spainish, Persian,
Arabic, Thai, Greek, Hebrew, Japanese, Simplified Chinese, Traditional Chinese.

Model		MVT-6008
System	Main Processor	High performance embedded microprocessor
	Operating System	Embedded LINUX
	System Resources	Pentaplex function: Live, Recording, Playback, Backup & Remote access
	Control mode	Front panel, USB mouse, IR remote control, keyboard, network
Digital zoom		support digital zoom while display and playback
	Standard	NTSC 240F/S, PAL 200F/S
	Output	1TV, BNC(1.0Vp-p, 75Ω ), 1VGA
Audio	Input	8 channel, BNC(200-2800mv, 30KΩ )
Audio	Output	1 channel, BNC(200-3000mv, 5KΩ )
Display	Display Split
	Resolution	1024 x 768, 800 x 600
	Tour display	Support
	OSD	Camera title, time, video loss, motion detection, recording
Recording	Audio Compression	G711
	Image Resolution	D1/CIF(704x576/640x480), HD1(704x288/640x240), CIF(352x288/320x240)
	Encoding Speed	Main Stream: CIF(1~25/30F/S) / HD1(1~12/15F/S) / D1(1~6F/S)
	Encoding Speed	Extra stream: QCIF(1~25/30fps)
	Bite Rate	32~2408Kb/s
	Image Quality	1~6level(level 6 is the best, VBR effectively)
	Recording Mode	Manual, schedule(regular(continuous), MD(Video detection: Motion detection, camera blank, Video loss), Alarm), Stop
	Recording priority	Manual> Alarm> Motion detection> Regular
	Recording Interval	5-120min. (default: 60 min. )
Video Detection	Trigger Events	Recording, PTZ movement, Alarm, E-mail
& Alarm	Motion Detection	Zones: 396(22x18), sensitivity: 1-5(level 5is highest)
	Video Loss	Support
	Alarm Input/Output	4 channel in/1channel out
Playback	Playback Channel
& backup	Playback Speed	CIF(1~30FPS/CH), HD1(1~15FPS/CH), D1(1~6FPS/CH)
	Search Mode	Time/Date, Alarm, Motion Detection
	Playback Functions	Play, Pause, Stop, Fast play, Slow play, Full screen, Backup selection
	Backup Mode	Flash drive/USB HDD/USB CD/DVD-RW/Network download
Network	Interface	RJ-45 port(10/100M)
	Network Functions	TCP/IP, UDP, DHCP, DNS, IP Filter, PPPOE, Email, Alarm Server, uPNP
	Remote Operation	Monitor, PTZ control, Playback, System setting, File download, Log information
Hard Disk	Hard Disk	1SATA port, Max2TB HDD supported
	Space occupation	Audio: 28.8MB/H, Video: 56~900MB/H
	HDD Management	Hard disk hibernation technology, HDD faulty alarm
Auxiliary Interface	USB Interface	2 ports, 1for mouse control, 1for backup
Auxiliary Interface	RS485	PTZ control
Environment	Power Supply	AC 100~240V, 50/60Hz
	Power Consumption	25W
	Dimension	440mm(L)× 300mm(W)× 110mm(H)
	Weight	3KG
