Our new NVR series are especially designed for the grocery, warehouse, office, and home, with High-Definition IP Cameras, now is available for preview/record/forward capabilities;
Support cell phone monitoring;
Multiple network mode.

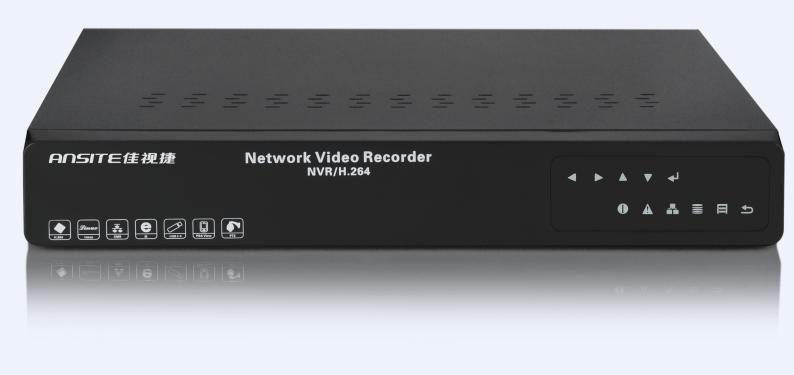

8CH NVR Case, Support Review+Recording+Forward+WEB Server; DualCore 32Byte DSP+Linux, 11pcs Touch Key, 11pcs LED, 1pc IR, 2pcs Sata HDD interface, 2pcs USB, 1pc 100M Network Interface, HDMI, VGA, Audio In&out, RS232, DC12V; 1pc IO Extension Port(1*RS485, 8CH Alarm In, 1 Alarm Out); Support 9CH 720P/4CH 1080P Recording, Support VM3000 Server Management: Support Web/UC/Clients/Mobile Remote control; Case Size: 380mm*280mm*55mm, 2KGS
NoSpecification AST - 6808
1SystemEmbedded Linux system, dual-core DSP, watch dog, hard disk storage, HD Display
A8+DSP, 720MHz, 32M FLASH, 2G DDR3;
2Video Input HD IPC access, dual-stream for each IPC, Auto research/add/record/preview.
8ch 720p, 4ch 1080p
3
Video Output1 HDMI output, 1 VGA output, Support 1920× 1080, 1440× 900, 1366× 768, 1280× 1024, 1024× 768, 800× 600 resolution ratio
1/4/9 Real time preview
1/2 video playback
4
Video Features2pc SATA HDD, 3.5inch SATA II hard disk, 2TB/3TB rated capacity, video record
Local video playback, internet long-distance playback,
Video resolution ratio: 720P/1080P H. 264
Max frame rate: 225fps@720p, 100fps@1080p
Max code stream: 28Mbps
5
Voice Intercom1ch 3.5mm stereo input, connect pickup; 1ch 3.5mm stereo output, connect power amplifier. G. 711/AAC encoding and decoding standard.
6Internet PortRJ 45 Ethernet port, 10/100M adaptive, 8 remote users access 1pc RS485
Support FTP /PPPOE /DHCP /DDNS /NTP /UPnP network agreements
7Peripheral Port 1pc 232 SPI, 1pc USB port
8Alarm Port16ch on/off input, alarm input, 3ch(1A@24VDC)output, 1ch encoding output
9Expansion Port11*button, 11*LED, 1*IR, 2pcs Fans port
10Service FeaturesUC Video Surveillance Client, VM3000 Platform management,
11OthersDC12V 2.5A, ≤ 12W power dissipation,
Shenzhen Jia Shi Jie Technology Co., Ltd. Was founded in 2003. As a professional manufacturer of CCTV Camera, Surveillance Cameras and Security cameras, etc, in China, we ensure you all our qualified products with reliable function and reasonable price.
Customer Service dept and technical dept as a common after-sales center, with the professional training, make the service more professional. The main after-sales services: System using, assemble, adjusting, maintenance and other technical training support!
Jiashijie put "the customer satisfaction not less than 99%" as our goal, control the quality of after-sales service seriously, and provide the top service to customer with all our heart.
"Professional, Efficient, Quality, Enthusiasm" are our working standard, customer satisfaction is our unremitting pursuit.
Shenzhen Jiashijie Technology Co., Ltd
