8HDD Onvif NVR 32 Channel Record and Playback P2p CCTV NVR

8HDD Onvif NVR 32 Channel Record and Playback P2p CCTV NVR
Supplier: Shenzhen Guoxingda Technology Co., Ltd.
Price: US $ 330/Piece
Min Order: 1/Piece
Quantity::
Trade Terms: FOB,EXW
contact supplier

Product Specifications

Prod Model: HX-9124K-P
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type: Standalone
Application: Commercial DVR
Interface Type: BNC/VGA/HDIM
Operating System: Linux
Compressed Format: H.264
Video Compression: H.264
Audio Input/Output: 16 Channel
Video Input/Output: 32 Channel
Remote Control: With Remote Control

Product Description

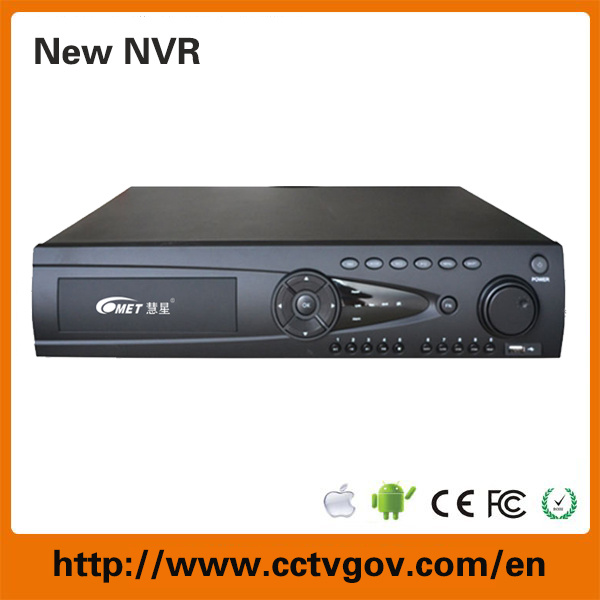

8HDD Onvif nvr 32 channel Record and Playback P2P CCTV NVR (HX-9124K-P)

NVR definition mode:
8*5M/16*3M/24*1080P/32*960P access storage;
1/4/8/16/24/32 screen;
8*SATA, Gigabit Ethernet, supports ONVIF

32CH Onvif NVR Parameters:

BrandComet
ModelHX-N9124K-P
SystemMain processorHuawei Hi3535 industrial-grade embedded microcontroller controller platform
Operate systemEmbedded LINUX operate system
System resourcesMulti-channel real-time record sync, single way real-time playback, multi-channel multiplayer network operation, USB backup
InterfaceOperate interface16-bit true color graphical menu operation interface, support mouse operation
Picture display1/4/8/16/24/32 pictures
VideoVideo standardPAL(625 lines, 50 field/s); NTSC(525 lines, 60 field/s)
Video codeH.264(High Profile);
Monitor qualityVGA: HD;HDMI: HD
Playback quality5M/3M/1080P/720P
Video input8*5M/16*3M/ 24*1080P/32*960P Access storage
Motion detection
AudioStandardG.711A
IntercomSupport
Record & playbackRecord modeManual > alarm > timing > detection dynamic
Local playback2*5M/ 4 *3M/ 4 *080P/ 8*960P real-time
Video searchTime retrieval, calendar retrieval, events retrieval, passage retrieval
Storage & backupEach takes up hard disk spaceVideo: CIF 4 ~ 5 G/day * channel ; D1 8 ~ 10 G/day* channel, 960h  12 ~ 20 G/day* channel, 720p 24 ~ 30 G/day* channel, 1080p 40 G/day * channels;
Audio: 691.2 M/day * channel
Video saveLocal Hard disk, network
Backup modeNetwork backup, USB mobile hard disk, USB burn, SATA burn
InterfaceVideo inputRJ45
Video output1*VGA,1*HDMI
Loop outputNot support
Audio input1*RCA
Audio output1*RCA
Alarn input16 channel
Alarm output4 channel
Network interfaceRJ45 10m / 100m / 1000m adaptive Ethernet port
PTZ Control1*RS485, 1*RS232; Support for multiple kinds of PTZ agreement
USB interface2*USB interface
HDD interface8* SATA interface (each maximum support 4TB), 1*E-SATA interface
Wireless interface3G,WIFI(via a USB extension)
OthersOnvif protocalSupport
Power supplyDVR dedicated ATX power supply
Size442mm(L)* 430mm(W)* 91mm(H)

Shenzhen Guoxingda Technology Co., Ltd., established in 2010 and specialized in designing, manufacturing and marketing. It is a professional manufacturer of Megapixel IP Camera and HD-SDI Camera in Security & Safety field.

Shenzhen Guoxingda Technology Co., Ltd. Took the lead in launching the 4/8/16-channel real-time embedded digital video recorder, all our DVR build free DDNS and server, people can view through mobile phone and internet. Our products with good quality and high credit are sold in America, South Africai, Asia, and are widely used in many fields such as public security, energy resources, intelligent-building and intelligent-transportation. All the products have already gotten certifications of CE, FCC.

Another main products in Shenzhen Guoxingda Technology Co; Ltd is CCTV camera. Including IR dome camera, IR bullet camera, Day & night camera, PTZ camera and IP camera. Now the new 600TVL night camera show excellent effect during nigh, no noise, clear picture quality and a distinctive color.

From the beginning, Shenzhen Guoxingda Technology Co., Ltd. is continually dedicating in the aim of "To protect the safety of you and your family anytime, anywhere. " To meet the increasing demands in the markets, we continually dedicating to make the safety monitor penetrate to every home, commercials, industry, public environment, and to be a natural part of people' S life, work, entertainment in good combination of safety and convenience. We continually insist on company' S culture: Brand, service and creativity to service society and customers. We are making every effort to build a promising future in video surveillance field together with our customers.
