8p8c 4 Pairs Cat5e FTP-M Network LAN Cable
| Price: |
US $ 28-35/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
50/Roll |
| Pay Type: |
L/C,T/T,D/P,Paypal,Money Gram |

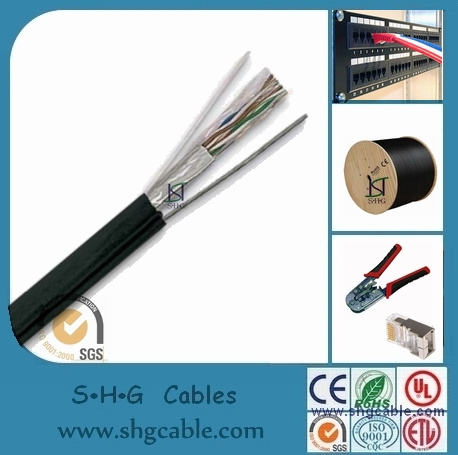

Network Lan cable CAT5e FTP-M aerial 24AWG ethernet network cable, ethernet cable 8p8c shielded, 305m/box, PVC/LSZH jacket, 350 MHz Fluke Test pass!
Certification: UL, ETL, CE, RoHS, REACH, ISO9001

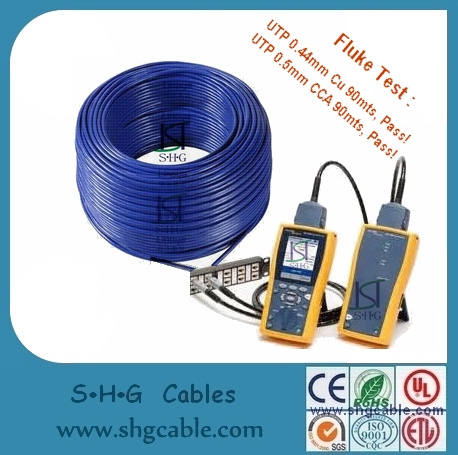

Quality warranty: Fluke Test !
Construction:
Conductor: Solid bare copper / AWG 24
Conductor Dia(mm): 0.51
Insulation: PE
Shield: Aluminum Foil
Ground / Earth wire: 24AWG Tinned copper
Average thickness ( +/-0.03mm): 0.25mm
Min point thickness: 0.22mm
Insulation Dia ( +/-0.03mm): 1.00mm
Messenger / Aerial: 1.16mm Steel
Jacket: PVC or LSZH
Average thickness: 0.5
Min point thickness: 0.46
Outer Dia( +/-1.0mm) 5.7
Rip cord: YES
Core color:
Pair 1: Blue - white/blue
Pair 2: Orange - white/orange
Pair 3: Green - white/orange
Pair 4: Brown - white/brown
Electrical Performance (At 100MHz)
1.0-100.0MHz Impendance(ohms) 100+/-15
1.0-100.0MHz Impendance delay screw(ns/100m) <45
Pair to Ground Capacitance Unbalance (PF/100m) 330Max
Conductor DC resistance 20%(ohms/km) <93.8
Resistance Unbalance(%): 5
Spark Test 850 V AC
Dielectric Strength 2500 V DC / 3 seconds
Insulation Resistance Test Min. 150 MΩ/Km
Conductor Resistance Max. 9.38Ω/100m at 20
Resistance Unbalance Max. 5%
Capacitance Unbalance Max. 330 pF/100m
Mutual Capacitance Max. 5600 pF/100m
Test object: Jacket
Test Material: PVC, PE, LSZH
Before Tensile strength(Mpa): >=13.8
Aging Elongation ((%): >=100
Aging condition(C xhrs): 100x240
After Tensile strength(Mpa): >=85% of unaged
Aging Elongation(%): >=50% of naged
Application:
1000BASE-T Gigabit Ethernet
10BASE-T, 100BASE-T Fast Ethernet (IEEE 802.3)
100 VG - AnyLAN(IEEE802.12), 155/622 Mbps ATM
550MHz Broadband Video
Voice, T1, ISDN

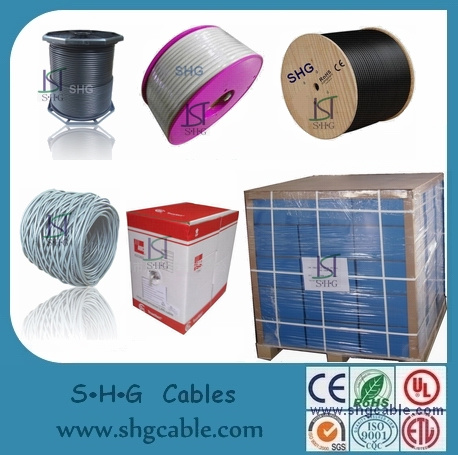

Package: 1000ft wooden reel

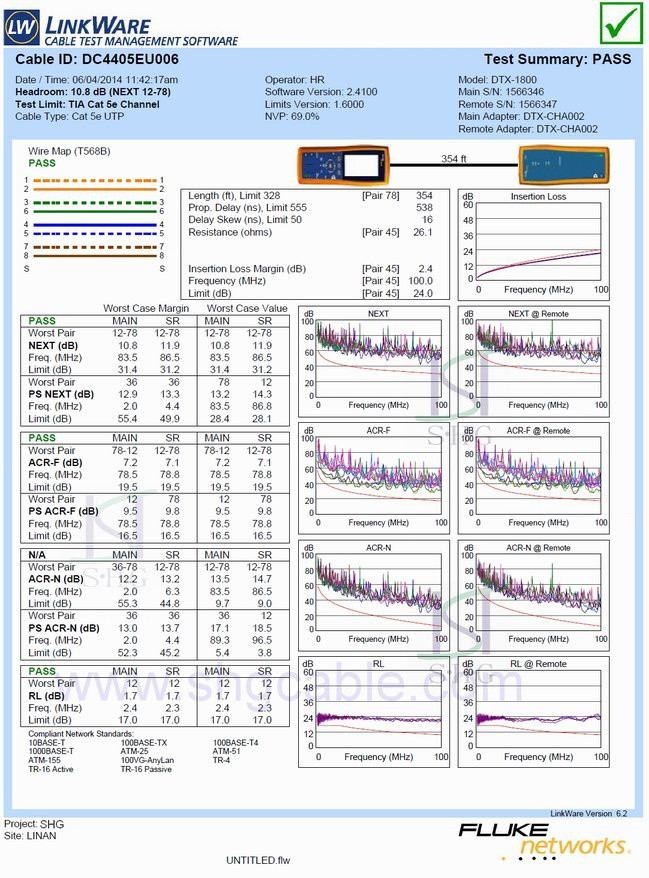

Test Report:
Standard Compliances:
All Category 5e Requirements as Per ANSI/TIA/EIA, ISO/IEC, and CENELEC EN Standards:
ANSI/TIA/EIA 568-B. 2 CAT. 5e
2ND Edition ISO/IEC 11801 Class D
CENELEC EN 50173-1
IEC 61156-5, CENELEC EN 50288-2-1 Horizontal Cable
Flame Retardancy is Verified According to IEC 60332-1
Frequency
MHz |
Return loss
dB |
Attenuation
dB/100m |
NEXT
dB |
ACR
dB |
PSNEXT
dB |
ELEFXT
dB/100m |
PSELEXT
dB/100m |
Delay
ns/100m |
0.772 |
19.4 |
1.8 |
67 |
65 |
64 |
66 |
63 |
575 |
1.0 |
20.0 |
2.0 |
65.3 |
63.0 |
62.3 |
63.8 |
60.8 |
570 |
4.0 |
21.0 |
4.1 |
56.3 |
52.0 |
53.3 |
51.7 |
48.7 |
562 |
6.0 |
24.5 |
5.8 |
51.8 |
46.0 |
48.8 |
45.7 |
42.7 |
546.7 |
10.0 |
25.0 |
6.5 |
50.3 |
44.0 |
47.3 |
43.8 |
40.8 |
546.4 |
16.0 |
25.0 |
8.2 |
47.3 |
39.0 |
44.3 |
39.7 |
36.7 |
543 |
20.0 |
25.0 |
9.3 |
45.8 |
37.0 |
42.8 |
37.7 |
34.7 |
542 |
25.0 |
24.3 |
10.4 |
44.3 |
34.0 |
41.3 |
35.8 |
32.8 |
541.2 |
31.25 |
23.6 |
11.7 |
42.9 |
31.0 |
39.9 |
33.9 |
30.9 |
540.4 |
62.5 |
21.5 |
17 |
38.4 |
21.0 |
35.4 |
27.8 |
24.8 |
438.6 |
100.0 |
20.1 |
22 |
36.3 |
13.0 |
32.3 |
23.8 |
20.8 |
537.6 |
| Prod Model: |
CAT5e FTP-M |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| LAN Cable: |
Cat5e FTP-M |
| Application: |
LAN Cable |
| Conductor Material: |
BC/CCS/CCA/TC/CU/CCAG |
| Cover Material: |
PVC |
| Type: |
Cat 5 |
| Certification: |
ETL |
| Model: |
Cat5e FTP-M |
| Brand: |
OEM |
