Product Specifications
| Prod Model: |
PFT-2081 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Firewall: |
Without Firewall |
| Application: |
Enterprise, SOHO |
| Transfer Rate: |
10/100/1000Mbps |
| Port Structure: |
Not Modular |
| Network: |
CDMA |
Product Description

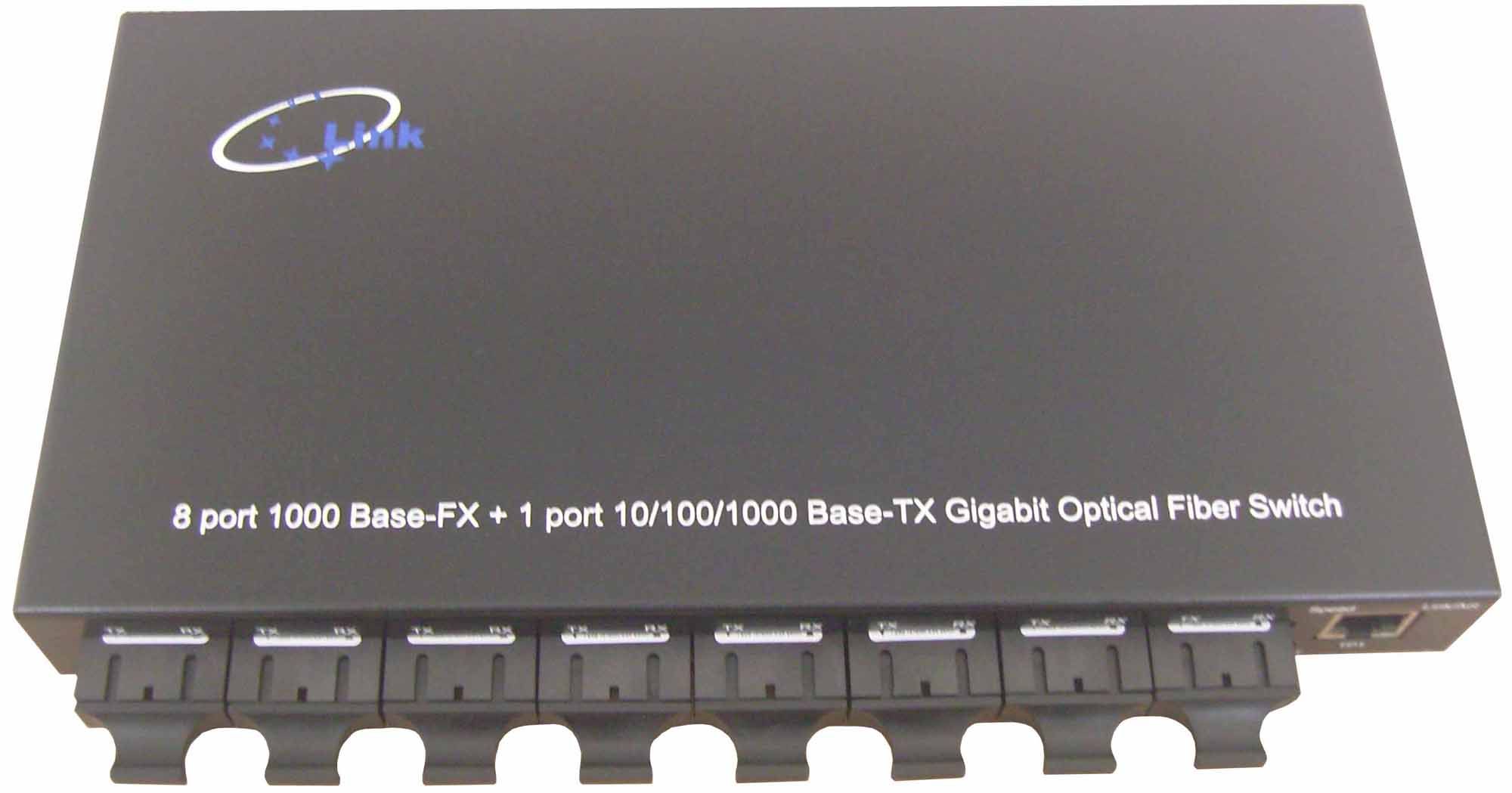

1000M -- 8 port 1000 Base-FX and 1 port 10/100/1000 Base-TX Ethernet switch
PFT-2081 optical fiber switch apply to FTTH and FTTB
Feature:
8 port 1000 Base-FX and 1 port 10/100/1000 Base-TX
The SFP slot supports 1000M and Full Duplex mode.
Supports flow control and broadcast storm protection.
Supports Port VLAN.
Supports the max 1632 bytes frame.
It is low power consume (10W), low heat, and good reliability.
Operating standards:
IEEE802.3X. 1000Base-T/SX/LX
MAC address table:
8K
Frame buffer memory
1MKb
Switching capacity:
20G
Flow control
Full Duplex: IEEE802.3X flow control
LED
PWR, FX LINK/ACT(FX-1 -FX-8), TP1 Link/Act, Speed
Power Requirement
AC 100-240V, 50 ~ 60Hz
Ambient Temperature
0 ~ + 50
Storage Temperature
-20 ~ + 70
Humidity
5% ~ 90%;
Dimensions
250mm × 128mm × 28mm
The Plus-link series product has the formidable sales network in the domestic market, is equipped with the subsidiary company in the nation key city, as well as the overseas with representing place, we had the business agent distributes in northeast, northwest, southwest, South China, North China, and southeast coastal various provinces and cities.
Five eight sixteen twenty-four forty-eight 10/100M Fast ethernet switches, five eight sixteen twenty-four forty-eight Gigabit ethernet switches, 100Mbps media converters, Gigabit media converters, Interface media converters, USB connectors, Wireless Router.
