Sunshine Lighting Industry Limited >> 8W LED Down Light

8W LED Down Light

Name: 8W LED Down Light
Brand: China-Manufacturer-Directory.com
SKU: 767460735
Availability: InStock
Rating: 4.7 (26 reviews)

Supplier:	Sunshine Lighting Industry Limited
Price:	US $ 6.27-6.44/Piece
Min Order:	100/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	SSL-DLCOB-8W-909
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Frequency Range:	50Hz-60Hz
Dimension:	4inches
Beam Angle:	Diffusing Lighting
Housing Color:	White
Package:	452435cm(30PCS/Carton)
Color Temperature:	Cool White
Lamp Body Material:	Metal
Source Number:	Single Plug
Installation:	Embedded
Lamp Installation:	Screw Holder
Switch Type:	Touch On/Off Switch
Warranty:	2 Years
Application:	Commerical Places
Certification:	RoHS
IP Rating:	No

Product Description

High Lumen 8 Watt Recessed LED Downlight , Ceiling Downlights With Cool White Lights

Quick Detail:

8W power consumption

Warm white Pure white Cool white

Luminous Efficiency 80-110Lm/W

Description:

CNC construction and 1060 Aero aluminum alloy housing
Germany FIN-design and thermal efficiency 60% improved
Cree/Edison/Epistar LED
AC85~265V input options
8W power consumption
Warm white Pure white Cool white
Luminous Efficiency 80-110Lm/W
Diffused lighting
Up to 70% energy savings
3 Year Warranty
CE RoHS TUV UL compliant

Specifications:

Electrical / Optical Characteristics (Ta=25ºC±3ºC)

Tech Date
Model		SSL-DLCOB-8W-909
LED Qty		1pcs
LED Type		Cree Edison Epistar
LED Power		8W
LED Color		Warm white, Pure white, Cool white
Input Voltage		AC85~265V
Frequency Range		50Hz - 60Hz
Power Factor		>98
Power Efficiency		>85%
Luminous Efficiency		80~110LM/W
Dimension		100x100x70cm
Color Temperature	WW	2700-3500K
	PW	4000-5500K
	CW	6000-7000K
CRI	WW	Ra>73
	PW / CW	Ra>78
Lamp Efficiency		>85%
Lumens Output	WW	590lm
	PW	620lm
	CW	650lm
Beam Angle		Diffused lighting
(Cut-out)Hole size		Φ90mm
Radiator Number		0.4mm x 42 pcs
Radiator Area		840cm²
Installation		Embedded
Housing Color		White
Working Temperature		-40ºC ~ +55ºC
Storage Temperature		-25ºC ~ +65ºC(25ºCbest)
Life span		35000~50000hrs
Certification		CE, RoHS, FCC
package		452435cm (30pcs/box)

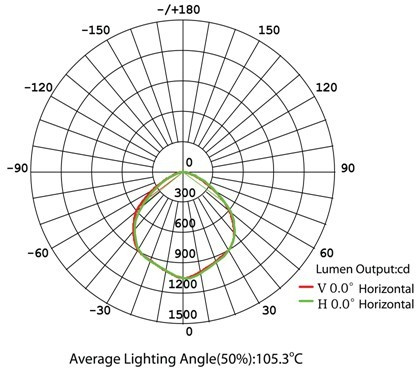

Curve of light distribution (Ta=25ºC±3ºC)

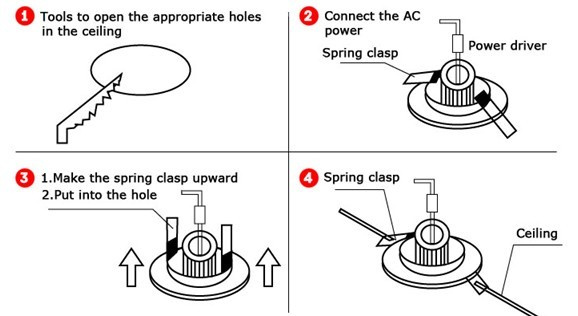

Installation Instruction:

pplications:

Widely used in the hotel, meeting room, offices, hospital, schools, factories, commercial lighting, shopping malls, supermarket.

Sunshine Light is an established high-tech firm specialized in developing OEM and ODM LED lighting products manufacturer and exporter. We are quality manufacturer always produce high technology & high quality products years of our experience bringing us the advantages of LED lights got improved remarkably, such as more efficiency, environmentlally safe, longer life span, less power consumption. We can provide customer R&D in new product design, production, quality control with high standard products and services. We're especially well-placed in the field of Power LED thermal management and related lighting solutions.
