Product Specifications
| Prod Model: |
SZ2/11588 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| 1.5 Inches: |
8X8 |
| Manufacturing Technology: |
Optoelectronic Semiconductor |
| Material: |
Element Semiconductor |
| Type: |
N-type Semiconductor |
| Package: |
DIP(',Dual In-line Package) |
Product Description

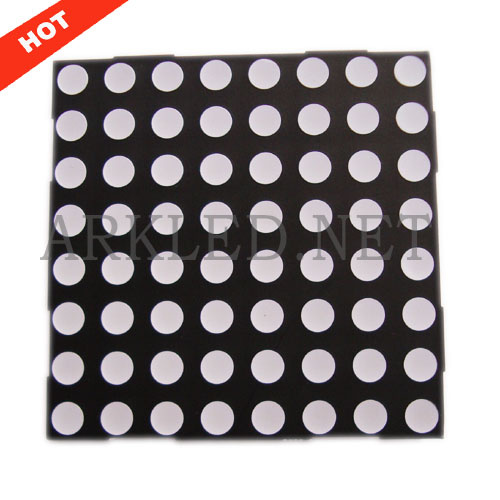

This one is a red LED dot matrix, but other emitted colors are available too, such as: Yellow, green, blue and white. Besides 1.5 inch LED matrix, there are also 0.7 inch, 1 inch, 1.2 inch, 2 inch and 2.3 inch dot matrix in 8x8.
Part No: SZ4/31588
Features
1.5 inch DOT height.
Low current operation.
High contrast and light output.
Stackable horizontally.
Column cathode and column anode available.
Easy mounting on P. C. Boards or sockets.
Multicolor available.
Available emitted color: Red, green, blue, orange, yellow, white or dual-color
Mechanically rugged.
Standard: Black face, white segment.
Other available face color: Grey
RoHS and REACH compliant.
|
Description |
Common anode row PN |
Common cathode row PN |
|
1.5 inch 8x8 LED dot matrix, ultra blue. |
SZ411588N |
SZ421588N |
|
1.5 inch 8x8 LED dot matrix, green |
SZ2115885 |
SZ2215885 |
|
1.5 inch 8x8 LED dot matrix, yellow |
SZ511588Y |
SZ521588Y |
|
1.5 inch 8x8 LED dot matrix, pure green |
SZ811588G |
SZ821588G |
|
1.5 inch 8x8 LED dot matrix, blue |
SZ611588B |
SZ621588B |
|
1.5 inch 8x8 LED dot matrix, white |
SZ711588W |
SZ721588W |
