Supplier: | Suzhou Parsun Power Machine Co., Ltd. |
---|---|
Price: | Negotiable/Bag |
Min Order: | 5/Piece |
Quantity:: | |
Trade Terms: | FOB |
![]() |
Prod Model: | T9.8BM |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |

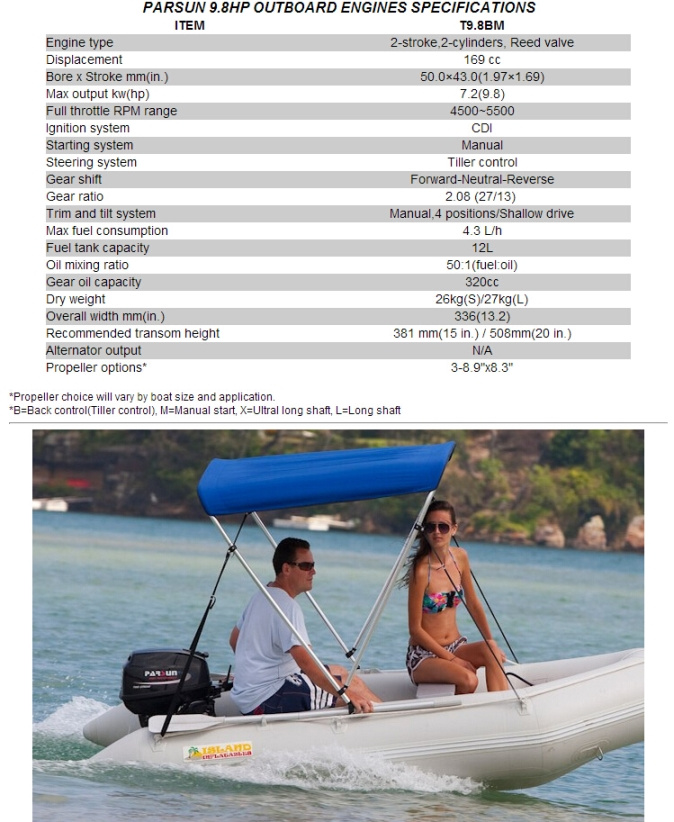

Engine Model Type: | 2-Stroke, 2-Cylinders, Reed Valve |
Displacement: | 169 Cc |
Bore X Stroke Mm(in.): | 50.0X43.0(1.97X1.69) |
Max Output Kw(HP): | 7.2(9.8) |
Full Throttle Rpm Range: | 4500~5500 |
Ignition System: | Cdi |
Starting System: | Manual |
Trim And Tilt System: | Manual, 4 Positions/Shallow Drive |
Max Fuel Consumption: | 4.3 L/H |
Gear Oil Capacity: | 320cc |
Fuel: | Gasoline Engine |
Model | Unit | T9.8BMS | T9.8BML | |
Item | ||||
Overall length | mm(in. ) | 842(33.1) | 842(33.1) | |
Overall width | mm(in. ) | 336(13.2) | 336(13.2) | |
Overall height | mm(in. ) | 992(39.1) | 1119(44.1) | |
Transom height | mm(in. ) | 381(15.0) | 508(20.0) | |
Weight | Kg | 26 | 27 | |
Full throttle operating range | r/min | 4500~5500 | 4500~5500 | |
Maximum output | Kw (HP) @r/min | 7.2 | ||
Idling speed (Neutral) | r/min | 800~900 | 800~900 | |
Cylinders | L2 | L2 | ||
Displacement | cm 3 | 169 | 169 | |
Bore × stroke | mmin | 50× 43(1.97× 1.69) | 50× 43(1.97× 1.69) | |
Ignition system | CDI | CDI | ||
Control system | Tiller control | Tiller control | ||
Starting system | Manual start | Manual start | ||
Gear positions | Forward-Neutral-Reverse | Forward-Neutral-Reverse | ||
Gear ratio | 2.08 (27/13) | 2.08 (27/13) | ||
Trim and tilt system | Manual tilt | Manual tilt | ||
Fuel tank capacity | L | 12 | 12 | |
Maximum fuel waste | L /h | 4.3 | 4.3 | |
Gear oil capacity | cm 3 | 320 | 320 | |
Propeller options* | in | 3-8.9" × 8.3" | 3-8.9" × 8.3" |
