Product Specifications
| Prod Model: |
SPS-90-12-C |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Item: |

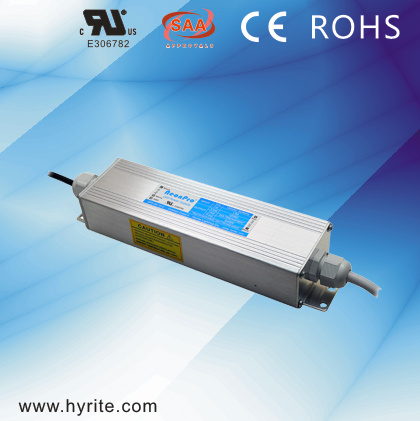

90W LED Power Supply with UL Certification |
| Input Voltage: |
120V |
| Input Current: |
1.8A |
| Output Voltage: |
12V |
| Power: |
90W |
| Dimming: |
No |
| Built-in Active Pfc: |
No |
| Installation: |
Outdoor Rainproof |
| IP Rating: |
IP 64 |
| Weight(Kg): |
0.8700 |
| Usage: |
Construction |
| Output Type: |
Single |
| Driving Method: |
LED Regulator Voltage |
| Circuit Structure: |
PWM Controlled |
| Power Supply Voltage: |
120V |
| Brand: |
Neonpro |
Product Description
90W led power supply with UL certification1.Feature of 90W led power supply with UL certification :AC to DC Single Output Switching Power Supply
Self-contained slim design, wiring connection inside
UL recognized outdoor class 1
Rainproof :IP64
2.Application of 90W led power supply with UL certification:LED Signage
LED Architectural Lighting
LED Industrial Lighting
LED Sports Lighting
LED Cobra Head Lighting
3.Specification of 90W led power supply with UL certification:
Model no. | SPS-90-12-C |
|---|
| Input voltage | 120 ±10%VAC 60 Hz |
|---|
| Max.Power | 90 W max |
|---|
| Output type | Constant voltage |
|---|
| Output voltage | 12VDC ± 5% |
|---|
| Output current | 7.5A max |
|---|
| Installation | Outdoor rainproof |
|---|
| IP rating | IP 64 |
|---|
| Dimming | No |
|---|
| Built-in active PFC | No |
|---|
| Power factor | >0.65 |
|---|
| Overload protection | 105%-120% hiccup mode, auto-recovery |
|---|
| Over current protection | >9.8A |
|---|
| Withstand voltage | I/P~O/P:1.5kVAC, 1 minute |
|---|
| Operating temperature | -25~40'C |
|---|
| Cooling | Free air convection |
|---|
| Connection input/output | Input:0.75mm²x3 (18cm) / Output:0.75mm²x2 (18cm) |
|---|
| Weight(kg) | 0.6kg |
|---|
| Certificates/standards | UL |
|---|
Contact :Sales Department :May
Hyrite Lighting Co.
Tel:+86(757)81200188 (Ext.315); Fax:+86(757)81200369
![]()
Hyrite Lighting Company, also known as NeonPro Co, has 20 years experience in the design, development and manufacturing of electronic power supplies, one of an extremely successful range of signage products including, over the last seven years, LED modules and driver units.
The senior management having recognized the ongoing success and further potential of our LED products and utilizing their experience and proven track record in innovative product design and manufacture has formed Hyrite Lighting Company solely dedicated to manufacturing products specifically for the LED signage and lighitng markets.
Our products are surrently being used in many countries under different technical standards in a variety of climate conditions.
Pls kindly check our main products below,
*IP67 Slim high efficiency constant voltage LED power supply (New)
*Traditional IP67 constant voltage waterproof LED power supply
*IP45 Rainproof constant voltage LED power supply.
*IP20 indoor type LED power supply.
*Constant Current LED Driver for LED lighting.
*Dimmable LED driver.
*LED module for Channel letter/light box.
Certificate: CE RoHS SASO SAA TUV UL approved
In addition we offer comprehensive OEM and ODM services to our partners.
We sincerely welcome your visiting and valued advices to us. Any questions from you, our experienced salesperson will feedback to you within 12 hours.
