Product Specifications
Prod Model: |
945GV-775 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Chipset: |
Intel 945gv+Ich6 |
Fsb: |
1066/800/533MHz |
Size: |
240mm X 170mm |
Main Chipset: |
Intel |
Structure: |
ATX |
Memory: |
DDR2 |
CPU Socket: |
LGA 775 |
Product Description

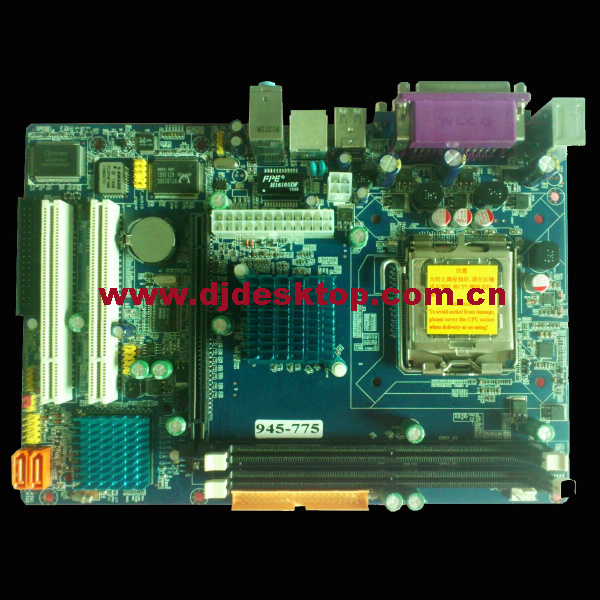

ATX Motherboard 945-775 Support 2*DDR2
1. Intel 945GV+ICH6 Chipset, LGA 775, Supports 1066/800/533 MHz FSB.
2. Supports 2*DDR2 800/667/533 memory, Dual Channel, support up to 4GB by 2 DIMM slots.
3.2*SATA, 4*USB2.0, 1*VGA/IDE, 1*PCI Express x16, 2*PCI Express x1.
Realtek 8105E 10/100M LAN Controller.
CPU
Support Intel Conroe-L Socket775 CPU
Intel Pentium 4 Socket775 CPU Intel Celeron D Socket775 CPU
Supports 533/800/1066MHz FSB
Chipset
Northbridge: Intel 945G Chipset
Southbridge: Intel+ICH6
Memory
Supports 2*DDRII 533/667/800 memory
Dual Channel architecture support up to 4GB by 2 DIMM slots
Graphics
Intel Graphics Media Accelerator 900
1* VGA port
Audio
Onboard HD 5.1_Audio
LAN
Onboard RT8103EL LAN Card
Expansion Slot
1 *PCI Express x16 slot
2 *PCI slots
I/O Connectors
1 *IDE connector
2 *SATA 300Mb/s connector
1 * front panel connector
1 * front audio connector
2 *USB 2.0/1.1 port
1 *COM port
1 * PS/2 port
1 * VGA port
1 *LPT port
1 *audio jacks
On Board Ports
24 PIN ATX POWER PORT
4 PIN ATX 12V POWER PORTS
4*USB 2.0 PORTS
1*CPU fan connector
1*F_AUDIO PORT
Accessories
CD DRIVER, BACK PANEL, MANUAL, SATA CABLE, IDE CABLE.
SIZE
240mm x170mm
PACKING
20PCS IN ONE CARTON
CPU |
Support Intel Conroe-L Socket775 CPU Intel Pentium 4 Socket775 CPU Intel Celeron D Socket775 CPU |
Supports 533/800/1066MHz FSB |
Chipset |
Northbridge: Intel 945G Chipset |
Southbridge: Intel+ICH6 |
Memory |
Supports 2*DDRII 533/667/800 memory |
Dual Channel architecture support up to 4GB by 2 DIMM slots |
Graphics |
Intel Graphics Media Accelerator 900 |
1* VGA port |
Audio |
Onboard HD 5.1_Audio |
LAN |
Onboard RT8103EL LAN Card |
Expansion Slot |
1 *PCI Express x16 slot |
2 *PCI slots |
I/O Connectors |
1 *IDE connector |
2 *SATA 300Mb/s connector |
1 * front panel connector |
1 * front audio connector |
2 *USB 2.0/1.1 port |
1 *COM port |
1 * PS/2 port |
1 * VGA port |
1 *LPT port |
1 *audio jacks |
On Board Ports |
24 PIN ATX POWER PORT |
4 PIN ATX 12V POWER PORTS |
4*USB 2.0 PORTS |
1*CPU fan connector |
1*F_AUDIO PORT |
Accessories |
CD DRIVER, BACK PANEL,MANUAL,SATA CABLE,IDE CABLE. |
SIZE |
240mm x170mm |
PACKING |
20PCS IN ONE CARTON |
